YSP-9.6KW

Off Grid Solar Power Kit

The Solar-Power-Generator is a revolutionary way of cost saving in renewable energy generation.
The solar panels produce what's called DC current. A device called an inverter is required to change the DC power generated by your solar system into AC power that most appliances can use. An inverter is an important piece in your overall solar energy plan.
Off-grid solar power gives people all over the world the electricity to power their homes. With off grid power you are your own electric company. When the sun shines you store excess electricity in batteries and draw it out later. An off-grid inverter can convert the DC energy from solar panels and batteries into AC electricity which powers normal appliances.

9,600W/192V Off Grid Solar Power Kit, YSP-9.6KW This kit Includes: 32 x 300 Watt Framed Solar Panel with 25 year limited warranty (Support rack for solar panel can be supplied upon request) 1 pc of 50 Amp Charge Controller 16 pc of 12V/200Ah batteries 1 pc 10KW Off Grid DC to AC Inverter

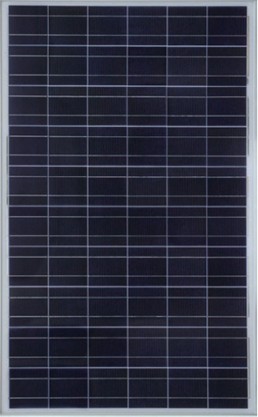

300W Polycrystalline Solar Panel
Cell: Poly-crystal silicon No. of Cells and Connections: 72 (6 x 12) Maximum Power(Pm): 300W±3% Maximum Power Voltage (Vpm): 36.78V Maximum Power Current (Ipm): 8.16A Open Circuit Voltage(Voc): 44.27 V Short Circuit Current(Isc): 8.93A Module Efficiency: 15.47% Dimensions: 1956 x 992 x 40 mm Weight: 22 kg Operating temperature: -25°C~55°C Warranty: 25 years power output guaranteeCertificate: CE, ROSHS, IEC, TUV, CSA
192V/50A Solar Charge Controller
Rated solar Input	50A
Rated System Voltage	192VDC
Max. Solar Voltage	236V
Self-Consumption	≤90mA
Acceptance Voltage Set point	168-236VDC
Type of Charging	High efficient Series PWM charging with temperature compensation
Electronic Protections	Reverse Polarity, Short Circuit, Overcurrent, lightning, Transient Surges, High Temperature, Reverse Current
Operating temperature	-25 ~ +55C
Humidity	≤90%
Shipping Weight/Dimension	12 kg/ 410x280x475mm
10KW Off Grid Inverter
Output power	10,000 watts continuous power/20,000 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	＞90%
No-load draw	＜0.6A
Output wave form	Pure Sine Wave
Input voltage range	168~236VDC
Over voltage shutdown	160V
Under voltage shutdown	120V
Over load shutdown	16,000W
Low voltage alarm	Audible
Protection	Over voltage, Under voltage, Low voltage, Over load, Overheat, Short circuit
Warranty	3 year
Shipping Weight/Dimension	150 kg/600 x 500 x 1000 mm
Battery Bank	8 x 12V/200Ah GFM Batteries

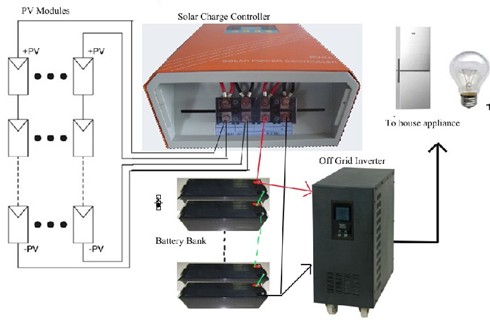

Wiring

Maintenance free Lead Crystal Battery

New Technology

The invention of the lead crystal battery is a breakthrough in battery history. Based on the composite electrolyte and proprietary intellectual property rights, makes the reaction of the electrolyte formation caused the forming for the crystal state.

Advantages

1. Ideal green and environmental protection battery.
Lead crystal battery is using special SIO2 composite electrolyte to replace the sulfuric acid solution of traditional lead-acid battery. The electrolyte is non-toxic, non-smell, to surrounding environment.
2. Excellent high and low temperature operating characteristics
Working temperature from -40°C~65°C
3. Easy for depth discharge
Working life of is no effected by the general over-discharge. Excellent recovery capacity of charge-discharge.
5. Long working life

Lead crystal battery can work for 10 to 15 years, and charging time is 25% faster than normal lead-acid batteries and gel batteries.

Item	6-CNFJ-200
Nominal Voltage	12V
Nominal Capacity	200Ah
Working Temperature	-40°C~65°C
Dimension	330 x 172 x 214mm
Weight	62 kg
Terminal type	A/F
Charge Cycle	1000
Working Life	10 – 15 years

Errors expected and possible alternations without prior notice
