T28-6.0DTF4-6

6KW Turgo Turbine Generator

Twin Nozzle T28-6.0DTF4/6

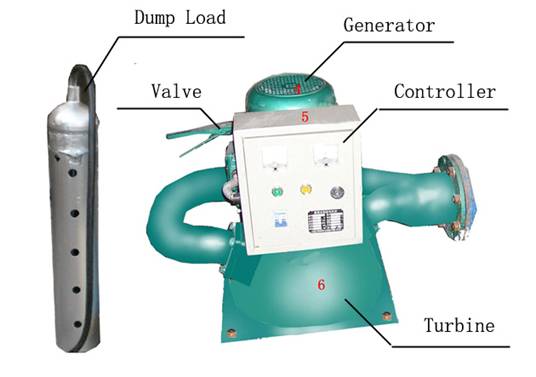

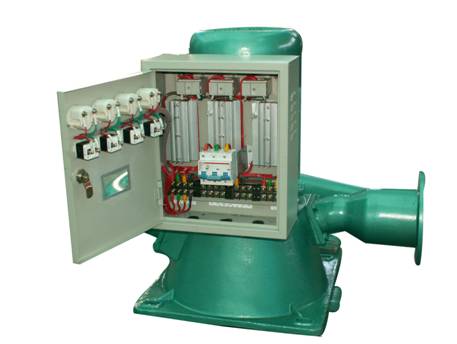

T28-6.0DCTF4/6 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, T28-6.0DCTF4/6 offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Designed to deliver ready-to-use 115V/230V VAC power, it employs a brushless, special rare-earth permanent magnet alternator and therefore has a higher efficiency than ordinary alternator. Output voltage and frequency are controlled by the electronic load controller(with ballast). As little as 40 to 55 liter per second (l/s) falling 20 meter through a pipe, it can supply enough power to comfortably run a small household. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.

The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.

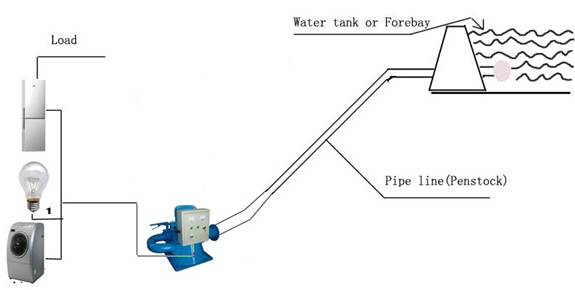

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through 2 nozzles, where it accelerates, strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.

Item	Parameters
Model	T28-6.0DCTF4
Water Head Range	18 – 20 meter(59 – 66 feet)
Water Pressure	29 PSI
Water Flow Range	40 – 55 liter(10 – 14.5 gal)/second
Rated Power Output	6KW
Intended voltage	115/230V~
Rotary Speed	1500 rpm
Turbine runner type	Turgo
Runner diameter	280 mm
Number of buckets	14
Number of nozzles	1
Jet diameter	200 mm
Generator	Single phase permanent magnet alternator
Power factor	1.0
Insulation level	B/B
Protection level	IP44
Temperature	-20°C~50°C
Humidity	≤90%
Safety protection	Short circuit, over load, Islanding, Grounding fault
Packing material	Fiberboard
Packing size	105 x 77 x 75 cm
Gross weight	255 kg

Turbine Generator

OUTPUT IN WATTS against various head and flow
Water head (meter)	Water flow(liter/second)
Water head (meter)	47 liter/sec	49 liter/sec	51 liter/sec	53 liter/sec	55 liter/sec
15	2115W	2940W	3825W	3975W	4537W
16	2256W	3136W	4080W	4240W	4840W
17	2397W	3332W	4335W	4505W	5142W
18	2538W	3528W	4590W	4770W	5445W
19	2679W	3724W	4845W	5035W	5747W
20	2820W	3920W	5100W	5300W	6000W

If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
