1KW Grid-Tie Wind Generator System

WFDG1

Reduce or Eliminate Your Electricity Bill

Introducing WFDG1 – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

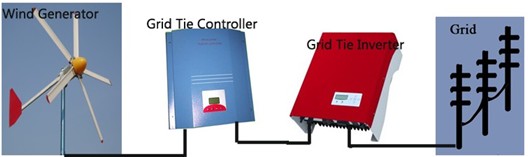

WFDG1 is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs.  It includes wind generator, controller with dump load and grid tie inverter.   With no batteries, WFDG1 connects directly to your home.  When the wind is blowing, your home is powered (in part) by WFDG1; when it’s not, your home is seamlessly powered by your utility as usual..  If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

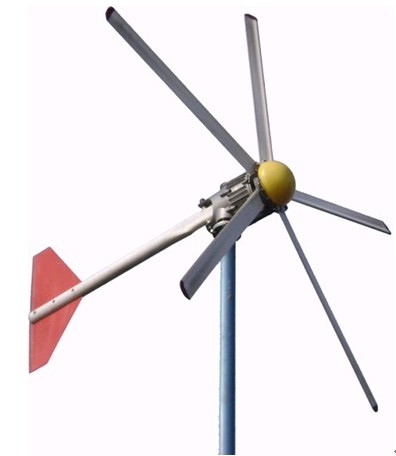

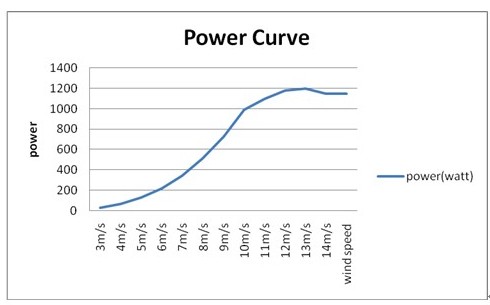

1KW wind generator
Model	WFD1KW
Rated  Power	1000W  at wind speed 11m/s
Max  Power	1200 W
Kilowatt Hours Per Month	158 kWh/month /average 5.4 m/s
Voltage Options	24V,48V, 96V & Grid Tie
Start Wind Speed	3 m/s
Rated Wind  Speed	11m/s
MAX WIND SPEED	45m/s
Cut-Out Wind Speed	13 m/second
Over speed Protection	Auto furl and dump load
Temperature Range	-30°C~60°C
Rotor Diameter	2.5 m
Swept Area	4.90 m2
Rotor speed	500 rpm
Rotor Starting Torque	0.6Nm
Blade number	5
Blade material	Aluminum alloy
Rotor thrust(at 20 meters/second)	280 Newton
Generator	3 phase  Neodymium permanent magnet alternator
Noise	Max 2-5 dB above background
Tower Top Weight(kg)	36

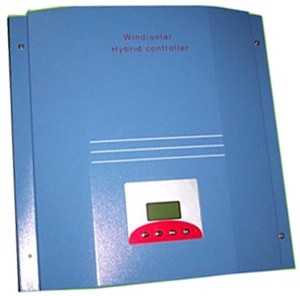

Grid tie controller
Model	HCCG-1KW
Input date
Rated Wind Turbine Power	1KW
Voltage Range	0~450V
Output date
Max dump load power	1KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥450V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	8A
DC output fuse (A)	8A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Shipping Weight/Dimension	15kg/ 50 x 46 x 33 cm

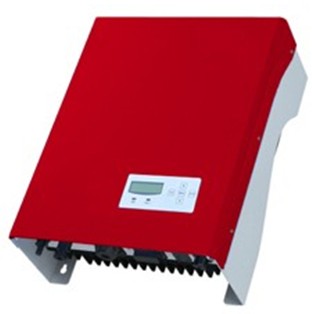

1 KW grid tie inverter
MODEL	WGI1KW
Max. DC input power	1000W
Max. DC input voltage	500V
MPPT range	100~450V
Max. DC input current	7A
Rated output power	1500W
Max. output current	7A
Nominal AC Voltage	220V – 240V/180V – 260V
AC grid frequency	50HZ / 60HZ / ±4.5HZ
Power factor	1
THD	<3%
AC connection	Single phase
Max. efficiency / Euro-ETA	>96.0% / >95.0%
Protection	DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault.
Idle consumption	<0.5W
Operating temperature	-30°C~60°C
Ambient humidity	0～95%
Enclosure type	IP20
Topology	HF-transformer
display	LED&LCD
Interfaces:	RS485
Electro.  compatibility	IEC62103/EN50178/EN61000-6-1/2/3
Warranty	2 years
Shipping Weight/Dimensions	16 kg/ 342 x 440 x 152mm



6 meter wire guyed tower（optional）





Errors expected and possible alternations without prior notice.

Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
