1.5KW Turgo Turbine Generator


T25-1.5DCT4

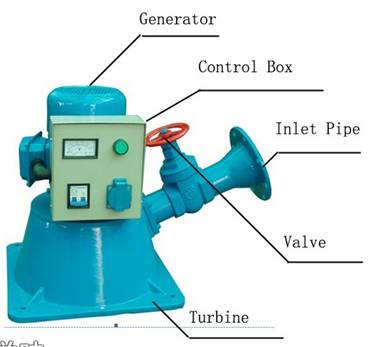

T25-1.5DCT4 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed.  That is, it is fed directly to the appliances.  No need of battery and inverter, T25-1.5DCT4 offers a complete water to wire system with integral turgo turbine, generator and valve flow control.  Designed to deliver ready-to-use 115V/230V VAC power, it employs a brushless, special rare-earth permanent magnet  alternator and therefore has a higher efficiency than ordinary alternator.  Output voltage and frequency are controlled by the electronic load controller(with ballast).      As little as 8 to 11 liter per second (l/s) falling 25 meter through a pipe, it can supply enough power to comfortably run a small household.  This machine is compact, easy to install and  requires little maintenance except lubricating the bearing every few months.

The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.

These turbines need very little water flow to run efficiently and produce significant power out. The standard configuration uses one nozzle

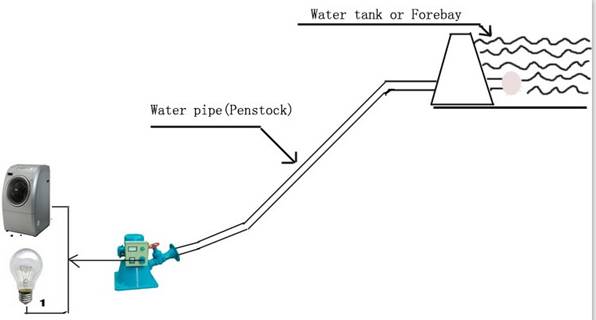

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.



Item
Parameters
Model
T25-1.5DCT4
Water Head Range
12 – 14 meter(39 – 46 feet)
Water Pressure
20 PSI
Water Flow Range
3 – 5 liter(1 – 1.3 gal)/second
Rated Power Output
1500W
Intended voltage
115/230V~
Rotary Speed
1500 rpm
Turbine runner type
Turgo
Runner diameter
200 mm
Number of buckets
14
Number of nozzles
1
Jet diameter
125 mm
Generator
Single phase permanent magnet alternator
Power factor
1.0
Insulation level
B/B
Protection level
IP44
Temperature
-20°C~50°C
Humidity
≤90%
Safety protection
Short circuit, over load, Islanding, Grounding fault
Packing material
Fiberboard
Packing size
75 x 44 x 52 cm
Gross weight
70 kg





Turbine Generator





OUTPUT IN WATTS against various head and flow
Water head
(meter)
Water flow(liter/second)
7 liter/sec
8 liter/sec
9 liter/sec
10 liter/sec
11 liter/sec
17
357W
544W
765W
850W
1028W
18
378W
576W
810W
900W
1089W
19
399W
608W
855W
950W
1150W
20
420W
640W
900W
1000W
1210W
21
441W
672W
945W
1050W
1270W
22
462W
704W
990W
1100W
1331W
23
483W
736W
1035W
1150W
1391W
24
504W
768W
1080W
1200W
1452W
25
525W
800W
1125W
1250W
1500W

If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
