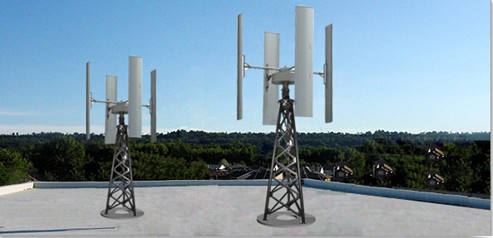

Vertical Wind Generator
FD1.4-500
Spinning in the lightest of breezes ! Low rotation speed !
We introduces the newest vertical axis wind generator:
The electrical power produced by the FD1.4-500 charges 24 volt or 48 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.
The advantages are:
very small rotor diameter, more safe
less vibration
low friction magnetic levitation alternator gives a smooth and silent output.
Specification:
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Height of tower recommended |
3 ~ 6 meter high with pipe inner diameter of 98mm |
TURBINE |

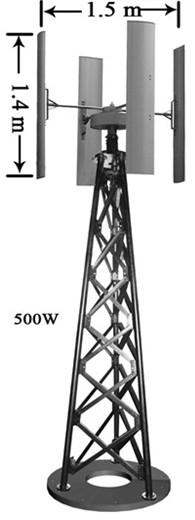

Rotor height |
1.4 m |
Rotor diameter |
1.5 m |
Number of blades |
3 blades, of aluminum alloy material |
Turbine Weight |
42 kg |

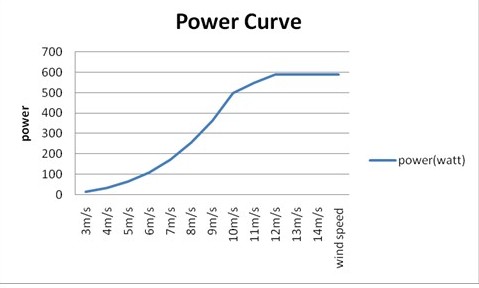

GENERATOR |
Type |
3 phase PMG |
Rated power |
500W |
Max power |
550W |
Nominal voltage |
24V/48V |
Over speed protection |
electromagnetic brake |
Packing details |
Box one : rotor blades |
Box dimension: 163 x 57 x 56 cm; Weight : 65 kg |
Box two : wind generator assembly |
Box dimension: 108 x 62 x 53 cm; Weight : 105 kg |

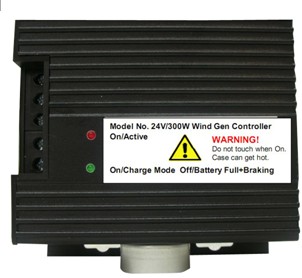

500W Battery Charge Controller ( optional )
Model |
500W-24 |
500W-48 |
Rated output power |
500W |
500W |
Input voltage range |
24~28 V |
48~56 V |
Rated battery voltage |
24 V |
48 V |
Max input wind power |
550W |
550W |
Over charge protection |
30 V±0.5V |
60 V±0.5V |
Recommended battery |
2 pc of 12V /150AH |
4 pc of 12V /150AH |
Wind Turbine
Maximum Input Current |
25 A |
15 A |
Protection Function |
Over charge, battery reverse-connection, load short-circuit, wind turbine automatic brake. |
Size |
230 x 120 x 70 mm |
230 x 120 x 70 mm |
Weight |
1.8kg |
1.8kg |

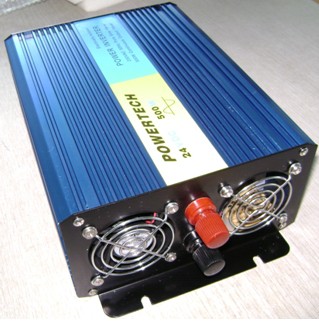

500W Pure Sine Wave Inverter ( optional )
Model |
PI-500-12 |
PI-500-24 |
PI-500-48 |
Output power |
500 watts continuous power/1000 watts peak power |
Output voltage |
100/110/120/220/230/240VAC |
Optimum efficiency |
＞85% |
No-load draw |
＜0.6A |
Output wave form |
Pure Sine Wave |
Input voltage range |
10~15VDC |
21~30VDC |
42~60VDC |
Over voltage shutdown |
15.5V |
30.5V |
61.2V |
Under voltage shutdown |
9.5V |
19.5V |
42V |
Over load shutdown |
750W |
Low voltage alarm |
Audible |
Protection |
Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown |
AC receptacle |
2 x 3 prong receptacles |
Warranty |
1 year |
Weight |
1.5 kg |
Dimension(W x H x D) |
210 x 150 x 70 mm |

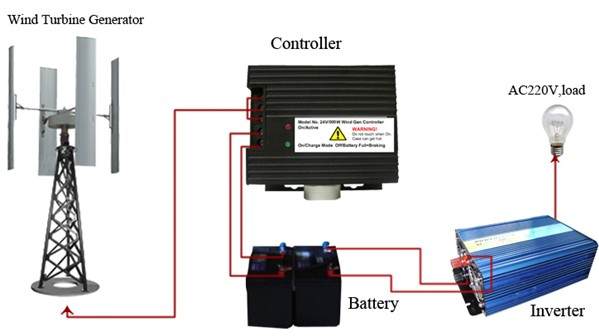

Wiring
