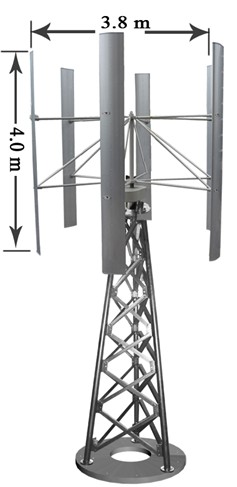

Vertical Wind Generator


FD3.8-5000

Spinning in the lightest of breezes !             Low rotation speed !

We introduces the newest vertical axis wind generator:
This wind generator adapts magnetic levitation alternator. It means negligible friction loss, little wear, and higher reliability.

The advantages are:very small rotor diameter, more safe; less vibration; low friction magnetic levitation alternator gives a smooth and silent output

The electrical power produced by the FD3.8-5000 charges 120 volt or 240 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.

Wiring

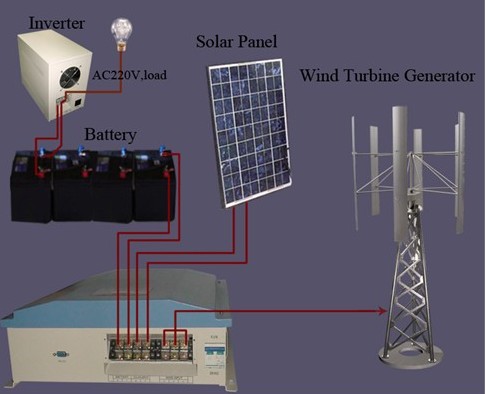

Off Grid Connecting

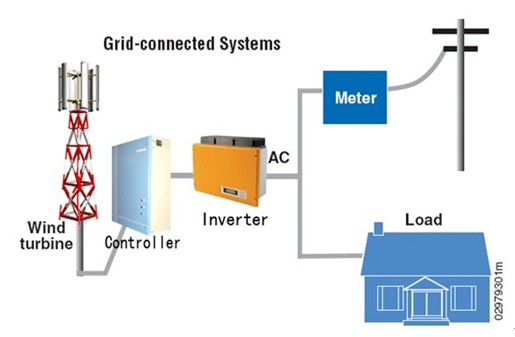

On Grid Connecting

Specification:

OVERALL
Cut in wind speed
5 m/sec
Cut out wind speed
14 m/sec
Rated wind speed
12 m/sec
Survival wind speed
60 m/sec
Rated rotor speed
80 rpm
Max rotor speed
110 rpm
Over speed protection
electromagnetic brake
Height of tower recommended
3 ~ 6 meter high with pipe diameter of 180
TURBINE
Rotor height
4 m
Rotor diameter
3.8 m
Number of blades
6 blades, of aluminum alloy material
Turbine Weight
180 kg
GENERATOR
Type
3 phase PMG
Rated power
5000W
Max power
6000W
Nominal voltage
240V
Packing details
Box one : rotor blades
Box dimension: 400 x 55 x 46 cm;  Weight : 125 kg
Box two : wind generator assembly

Box dimension: 120 x 65 x 58 cm;  Weight : 180 kg

Apparent Sound Power Level for the Acoustic Reference Wind Speed

  1. Turbine Noise Level at 7.3~8.7 m/s: 8.3~9.8 dB

Test was made at 10 meters from the turbine

Warranty: 2 years
