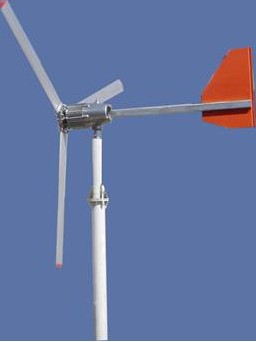

Wind Generator


WFD500W

An attractive, reliable and economic source of electricity for remote areas.  Enough power for lights, radio, television, fan, kitchen appliances, microwave oven, washing machine, power tools and more, depending on the average wind speed.  The ideal source of power for telecommunications and scientific equipment.

The WFD500W is used to charge  24V/36V or 48V batteries.   Equipped with suitable grid tie inverter, it can also connect to grid.

It is especially designed to meet the demand from individual householders for a renewable energy source.





Wind Generator

Model
WFD500W
Rated Power
500W  at rated wind speed
Max Power
600W
Kilowatt Hours Per Month
77 kWh/month /average 5.8 m/s
Voltage Options
24V, 36V& Grid Tie
Start Wind Speed
3 m/s
Rated Wind Speed
10 m/s
Survival Wind Speed
40 m/s
Cut-Out Wind Speed
12 m/s
Over speed Protection
Auto Furl and Electric Brake
Temperature Range
-30°C~60°C
Rotor Diameter
2.0 m
Swept Area
3.14 m2
Rotor speed
580 rpm
Rotor Starting Torque
0.4 Nm
Blade material
Aluminum Alloy
Rotor thrust(at 20 meters/second)
175 Newton
Generator
3 phase Neodymium permanent magnet alternator
Noise
Max 1-3 dB above background
Tower top weight
26 kg







500W Battery Charge Controller( option )

Model
500W-24
500W-36
500W-48
Rated output power
500W
Input voltage range
24~30 V
36~45 V
48~59 V
Rated battery voltage
24 V
36V
48 V
Max input wind power
550W
Over charge protection
30 V±0.5V
45 V±0.5V
60 V±0.5V
Recommended battery
24V /150AH
36V /150AH
48V /150AH
Maximum Input Current
23 A
15A
12 A
Protection Function
Over charge,  battery reverse-connection ,   load short-circuit, wind turbine automatic brake.
Shipping weight/dimension
1.8 kg/230 x 120 x 70 mm

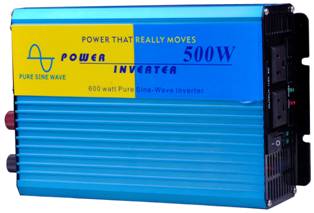

500W Off Grid Inverter ( optional )

Model
PI-500-12
PI-500-24
PI-500-48
Output power
500 watts  continuous power/1000 watts peak power
Output voltage
100/110/120/220/230/240VAC
Optimum efficiency
>85%
No-load draw
<0.6A
Output wave form
Pure Sine Wave
Input voltage range
10~15VDC
21~30VDC
42~60VDC
Over voltage shutdown
15.5V
30.5V
61.2V
Under voltage shutdown
9.5V
19.5V
42V
Over load shutdown
120%
Low voltage alarm
Audible
Protection
Over Voltage , Under Voltage, Over load, Over Heat, Reverse Polarity, Short-circuit , Ground fault, Output Transient Voltage.
AC receptacle
2 x 3 prong receptacles
Shipping Weight/Dimension
1.4 kg/210 x 150 x 70 mm

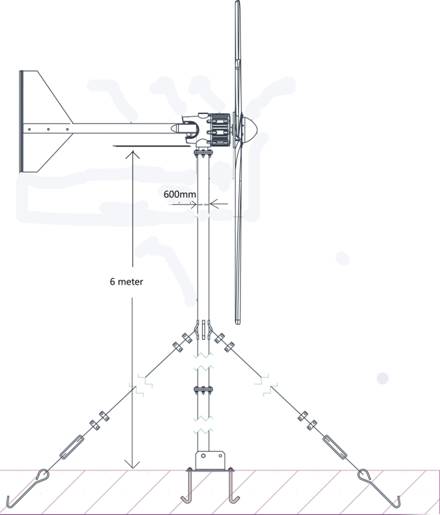

6 meter height wire guyed tower (optional)

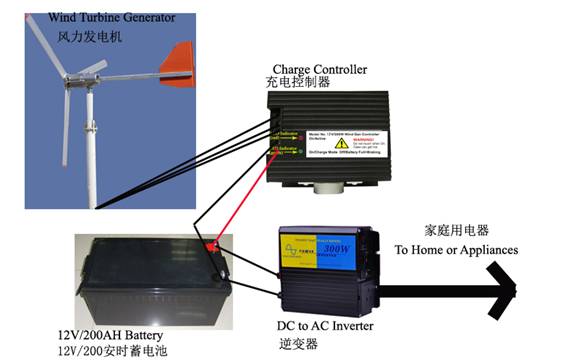

Battery bank

This off grid system should use 2 pieces of 12V/200Ah batteries.  The user should buy from local market.

Packing

  1. Wind Generator in cartons  : 56 x 45 x 23 cm   19kg ; 122 x18 x 15 cm   9 kg
  2. 6 m wire guyed tower in bag : 172 x 26x 22 cm  25 kg
  3. Controller packed in carton :  6kg/37x33x22cm
  4. Inverter packed in carton  :  1.2 kg /93 x 63 x 43 mm



Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.



Note:

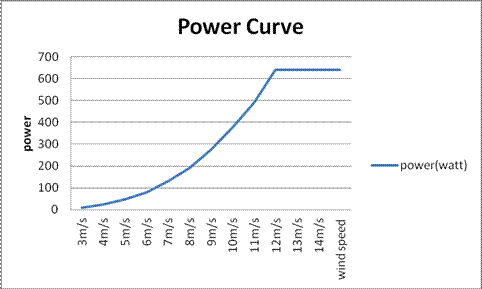

  1. Power Curves and Annual Energy: The performance of wind turbine systems is impossible to predict with any certainty due to the variability in the wind from location to location and from year to year. These estimates are based upon the best available information but are given as guidance only and should not be considered as a guarantee.  For a greater level of certainty we would recommend on-site wind speed monitoring for at least a year.
  2. Variation: All values are nominal as there will be some variation in manufactured product.  Specifications subject to change.
