3KW Grid-Tie Wind Generator

WFDG3

Reduce or Eliminate Your Electricity Bil

Introducing WFDG3 – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

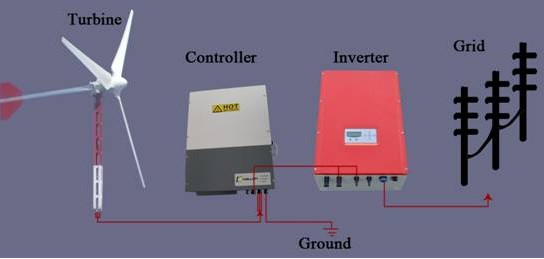

WFDG3 is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs.  It includes wind generator, controller with dump load and grid tie inverter.   With no batteries,

WFDG3 connects directly to your home.  When the wind is blowing, your home is powered (in part) by WFDG3; when it’s not, your home is seamlessly powered by your utility as usual..  If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

3KW Wind Generator
Model	WFDG3

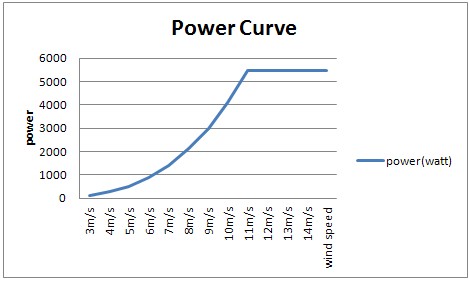

Rated  Power	3 KW at wind speed 9 m/s
Max  Power	5 KW
Voltage Options	96V, 120V,240V & Grid Tie
Start Wind Speed	3m/s
Rated Wind  Speed	9 m/s
Cut-Out Wind Speed	12m/s
MAX WIND SPEED	45m/s

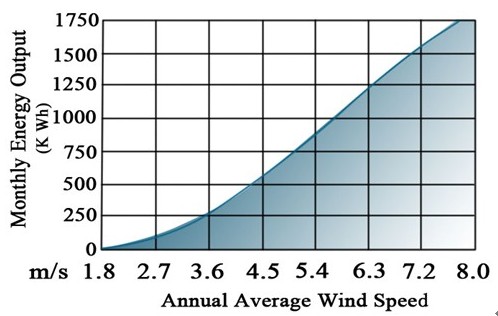

Kilowatt Hours Per Month	396 kWh/month /average 5.8 m/s
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Auto Furl and Dump Load
Gearbox	None, Direct Drive
Temperature Range	-40 to +60 Deg. C
Rotor Diameter	4.50 m
Swept Area	15.90 m2
Rotor speed at 3KW power	250 rpm
Blade number	3
Blade material	Reinforced fibreglass
Rotor thrust(at 20 meters/second)	2,350 Newton
Generator	3 phase Neodymium permanent magnet
Noise	Max 4-7 dBA above background
Tower Top Weight	115 kg







3 KW grid tie controller



3KW grid tie inverter
MODEL	GI3000W
Max. DC input power	3000W
Max. DC input voltage	600V
MPPT range	150~700V
Max. DC input current	15A
Rated output power	3000W
Max. output current	15A
Nominal AC Voltage	220V – 240V/180V – 260V
AC grid frequency	50HZ / 60HZ / ±4.5HZ
Power factor	1
THD	<3%
AC connection	Single phase
Max. efficiency / Euro-ETA	>96.0% / >95.0%
Protection	DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault.
Idle consumption	<0.5W
Operating temperature	-25 ~ +55
Ambient humidity	0～95%
Enclosure type	IP65
Topology	HF-transformer
display	LED&LCD
Interfaces:	RS485
Electro.  compatibility	IEC62103/EN50178/EN61000-6-1/2/3
Dimension	350 x 200 x 500 mm
Weight /kg	60

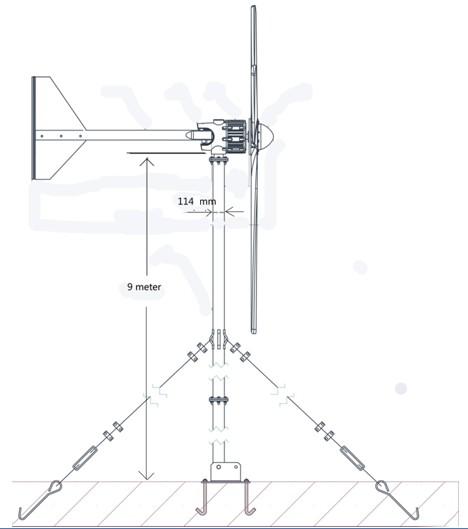

9 meter wire guyed tower(optional)



Errors expected and possible alternations without prior notice.

Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
