20KW Single Phase Off-Grid Wind/Solar Hybrid System

HY-20KW, 10KW wind&10KW solar

.

A "hybrid" electric system that combines wind and solar technologies offers several advantages over either single system.

In many regions worldwide, wind speeds are relatively lower in the summer when the sun shines brightest and longest. The wind is strongest in the winter when less sunlight is available due to shorter days.  Even during the same day, in many regions worldwide, there are different and opposite wind and solar resource patterns.

Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce electricity consistently throughout the year.  It combines the best of both worlds !

Our hybrid systems are a combination of stand-alone wind systems. For the times when neither the wind nor the solar system is producing, our hybrid systems provide power through batteries.

Performance: 3,500~4,170 AC Kilowatt-hours (kWh's) per month (depending on wind and solar resources)

This system includes:

  • 1 set of WFD10KW/240V wind turbine generator with 12m tower
  • 20 x 250Wsolar panel
  • 1 pc of 20KW Wind/Solar Hybrid Controller HD-20KW-240
  • pc of 20KW Power Inverter(PI-20KW),single phase
  • 20 x 12V/200Ah battery

10KW Wind Turbine Generator

Model
WFD10KW
Rated  Power
10 KW at wind speed 11m/s
Max  Power
12 KW
Kilowatt Hours Per Month
1,166 kWh/month /average 5.8m/s
Voltage Options
120V, 240V & Grid Tie
Start Wind Speed
3 m/s
Rated Wind  Speed
11 m/s
MAX WIND SPEED
45 m/s
Cut-Out Wind Speed
13 m/second
Over speed Protection
Auto Furl and Dump Load
Temperature Range
-30°C~60°C
Rotor Diameter
6.40 m
Swept Area
32.15 m2
Rotor speed
280 rpm
Blade number
3
Blade material
Reinforced fibreglass
Rotor thrust(at 20 meters/second)
6,600 Newton
Generator
3 phase Neodymium permanent magnet
Noise
Max 5-8 dB above background
Turbine Weight(kg)
220
Warranty
3 year

.

250W Polycrystalline Solar Panel

ASNM250P-60 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type
250P-72
Module Efficiency              ŋm(%)
15,37
Cell Efficiency                ŋc(%)
17,54
Power Peak                    Pm(W)
250
Maximum Power Voltage         Vm(V)
30,71
Maximum Power Current         Im(A)
8,14
Open Circuit Voltage            Voc(V)
44,23
Short circuit current              Isc(A)
8,81
Maximum System Voltage         (VDC)
1000
Power output tolerances           ( % )
±3
Max-Series Fuse                  (A)
20
Operating/Storage Temp.          (°C)
-40 ~85
Dielectric Insulation Voltage        (VDC)
3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature
45±2°C
Pm Temperature Coefficient   (%/°C)
-0.44
Voc Temperature Coefficient  (%/°C)
-0.36
Isc Temperature Coefficient   (%/°C)
0.033
MECHANICAL  FEATURES
Cell Size                       (mm)
156 x 156
Number of cells
6 x 10 – polycrystalline silicon cell
Module Dimensions              (mm)
1640 x 992 x 40
Module Weight                  (kg)
19
Front Glass
3.2mm tempered glass
Back Cover
TPT(Tedlar-PET-Tedlar)
Frame
Anodized aluminum alloy
Junction box
IP65-6 by-pass diodes serviceable
Connectors
IP67 type MC4
Output Cables                  (mm)
900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)
520
1 Pallet
24 modules
Container Loading                (ft)
672modules
Capacity 40’HQ
(28 pallets)

.

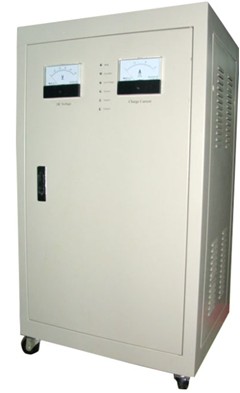

20KW Hybrid Controller and Dump load

Model
HD-20KW-240
Rated output power
20 KW
Input voltage range
230~290 V
Rated battery voltage
240V
Max input wind power
12 KW
Max input solar power
10 KW
Over charge protection
295V±0.5V
Recommended battery
240VDC/200AH
Rated Wind Turbine
Maximum Input Current
30A
Protection Function
Over charge,  battery reverse-connection  Solar cells reverse charging, over load, load short-circuit, lighting, wind turbine automatic brake and manual brake.
Self Consumption
< 20 mA
Warranty
3 year
Size
Controller :  560 x 460 x 950          53KG
Dump load :  810 x 580 x 980 mm     31kg

.

.

20KW Power Inverter, single phase

Model
PI-20KW-240
Output power
20KW continuous power/60KW peak power
Output voltage
Single Phase,  220VAC
Optimum efficiency
up to 92%
No-load drawing
< 2 A
Output wave form
Pure Sine Wave
Rated input voltage
240V DC
Input voltage range
180~300VDC
Input current(A)
95
Over voltage shutdown
305V
Under voltage shutdown
179V
Over load shutdown
30KW
Low voltage alarm
Audible
Total Harmonic
<5%(line load)
Operating temperature
-25~+60℃
Protection
Over voltage, Low voltage alarm, Over load, Over heat, Short circuit
Electrical insulation properties
1500Vac, 1 minute
Warranty
3 year
Shipping Weight/Dimension
160 kg/550 x 480 x 1100 mm

.

Maintenance free Lead Crystal Battery

New Technology

The invention of the lead crystal battery is a breakthrough in battery history. Based on the composite electrolyte and proprietary intellectual property rights, makes the reaction of the electrolyte formation caused the forming for the crystal state.

Advantages

1. Ideal green and environmental protection battery.
Lead crystal battery is using special SIO2 composite electrolyte to replace the sulfuric acid solution of traditional lead-acid battery. The electrolyte is non-toxic, non-smell, to surrounding environment.
2. Excellent high and low temperature operating characteristics
Working temperature from -40°C~65°C
3. Easy for depth discharge
Working life of is no effected by the general over-discharge.   Excellent recovery capacity of charge-discharge.
5. Long working life

Lead crystal battery can work for 10 to 15 years,  and charging time is 25% faster than normal lead-acid batteries and gel batteries.



Item
6-CNFJ-200
Nominal Voltage
12V
Nominal Capacity
200Ah
Working Temperature
-40°C~65°C
Dimension
330 x 172 x 214mm
Weight
62  kg
Terminal type
A/F
Charge Cycle
1000
Working Life
10 – 15 years



.

Warranty :  10 years for solar panel and 3 years for the rest of the system

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.

.

Note:

  1. Power Curves and Annual Energy: The performance of wind turbine systems is impossible to predict with any certainty due to the variability in the wind from location to location and from year to year. These estimates are based upon the best available information but are given as guidance only and should not be considered as a guarantee.  For a greater level of certainty we would recommend on-site wind speed monitoring for at least a year.
  2. Variation: All values are nominal as there will be some variation in manufactured product.  Specifications subject to change.

.

.
