Grid Tie Solar Power Kit

The Solar Kit is easy to set up and plugs straight in to any mains socket just you’re your kettle. No need for an electrician.  Installation is simple: secure the solar panels to the stand and connect the ready made cables. Position on your patio, garden or balcony, anywhere the sun shines.



30 KW Grid-Tie Solar Power Kit, SG-30KW

This SG-30KW kit Includes:

  • 120 x 250 Watt Framed Solar Panel with 25 year limited warranty.
    (Support rack for solar panel can be supplied upon request)
  • 30KW Grid Tie DC to AC Inverter.
  • 30 meter connecting cable.

250W Polycrystalline Solar Panel

ASNM250P-60 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type
250P-72
Module Efficiency              ŋm(%)
15,37
Cell Efficiency                ŋc(%)
17,54
Power Peak                    Pm(W)
250
Maximum Power Voltage         Vm(V)
30,71
Maximum Power Current         Im(A)
8,14
Open Circuit Voltage            Voc(V)
44,23
Short circuit current              Isc(A)
8,81
Maximum System Voltage         (VDC)
1000
Power output tolerances           ( % )
±3
Max-Series Fuse                  (A)
20
Operating/Storage Temp.          (°C)
-40 ~85
Dielectric Insulation Voltage        (VDC)
3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature
45±2°C
Pm Temperature Coefficient   (%/°C)
-0.44
Voc Temperature Coefficient  (%/°C)
-0.36
Isc Temperature Coefficient   (%/°C)
0.033
MECHANICAL  FEATURES
Cell Size                       (mm)
156 x 156
Number of cells
6 x 10 – polycrystalline silicon cell
Module Dimensions              (mm)
1640 x 992 x 40
Module Weight                  (kg)
19
Front Glass
3.2mm tempered glass
Back Cover
TPT(Tedlar-PET-Tedlar)
Frame
Anodized aluminum alloy
Junction box
IP65-6 by-pass diodes serviceable
Connectors
IP67 type MC4
Output Cables                  (mm)
900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)
520
1 Pallet
24 modules
Container Loading                (ft)
672modules
Capacity 40’HQ
(28 pallets)

.

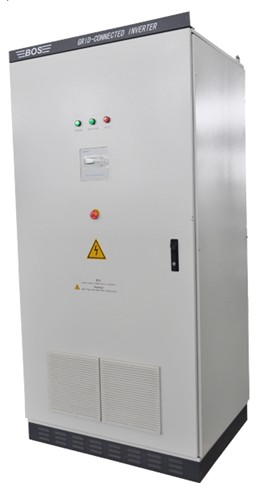

30KW Grid Tie Inverter

MODEL
PVGI30KW
 Input (DC)
Max. DC power (@ cos ϕ = 1)
30KW
Max. DC voltage
1,000V
DC nominal voltage
450V
MPP voltage range/DC
200~780V
Min. DC voltage / start voltage
250V
Max. input current / per string
150A
Number of MPP trackers
2
Output (AC)
AC nominal power
30KW
AC voltage range
3 phase, 330-480V
AC grid frequency; range
50Hz/60Hz
Nominal output current
150A
Power factor (cos ϕ)
0.99
Harmonics
< 3%
Max. efficiency/ CEC efficiency
94%/92%
Protection devices
DC reverse-polarity protection, AC short circuit protection, ground fault monitoring, grid monitoring
General data
Operating temperature range
–25 °C to 60 °C
Humidity
0 ~ 100%RH(No condensing)
Topology
Transformer
Interfaces
USB/RS232 card
IP degree of protection
IP65
Compliance
CE/VDE0126-1-1/IEC62109/ENEL guide 2009,/ RD1663/G83/1-1/AS3100/AS4777
Warranty
5 years
Shipping Weight/Dimensions
400kg/800 x 600 x 2060 mm
