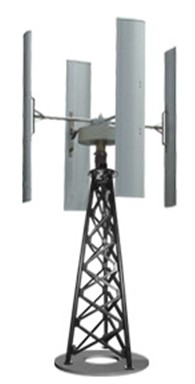

Vertical Wind Generator


FD1.65-1000-B

Reduce or Eliminate Your Electricity Bill

Introducing FD1.65-1000-B – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

FD1.65-1000-B is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs. It includes wind generator, controller with dump load and grid tie inverter. With no batteries, FD1.65-1000-B connects directly to your home. When the wind is blowing, your home is powered (in part) by FD1.65-1000-B; when it’s not, your home is seamlessly powered by your utility as usual.. If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

And you do not need the most disposable part of a wind power system --- the batteries. Without the repeated purchase of batteries, The house will use the electricity from the system first, and if needed from the utility

Feature :

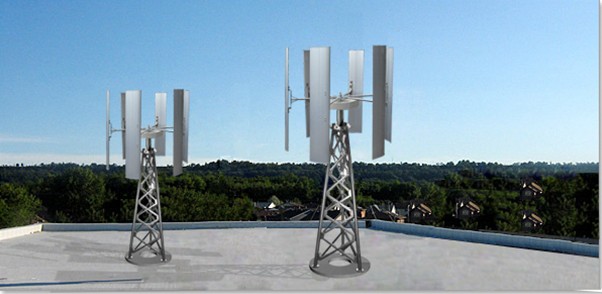

Energy efficient, reliable, roof mounted and affordable

Have very little vibration

Will catch wind from any direction

Produce little noise

Are a high performance sustainable renewable energy source

Wind Generator Specifications:

OVERALL
Cut in wind speed
5 m/sec
Cut out wind speed
14 m/sec
Rated wind speed
12 m/sec
Working wind speed
5 ~ 14 m/sec
Survival wind speed
60 m/sec
Rated rotor speed
300 rpm
Max rotor speed
350 rpm
Over speed protection
electromagnetic brake
Height of tower recommended
3 ~ 6 meter high with pipe inner diameter of 98mm
TURBINE
Rotor height
1.65 m
Rotor diameter
1.6 m
Number of blades
4 blades, of aluminum alloy material
Turbine Weight
32 kg
GENERATOR
Type
3 phase PMG
Rated power
1000W
Max power
1200W
Nominal voltage
120V/240V

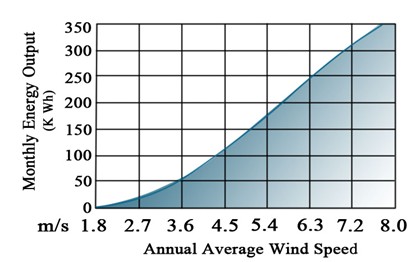

Kilowatt Hours Per Month
162 kWh/month /average 5.3 m/s
Over speed protection
electromagnetic brake

1KW grid tie inverter

Specification

Recommended generator power: 1KVA
DC voltage range: 150~580VDC
Max input current: 10 A
Max. AC power: 1,200W
Nominal AC power: 1,000W
Nominal AC voltage: 280V
Efficiency: 94%(92 EURO)
Power factor: ≥0.99
Grid voltage, operating range: 180~265VAC
Grid frequency, operating range: 50Hz / 60Hz ±2 Hz
Insulation level: 1,500Vac, 1 minute
Extended temperature range: -25~+60℃
Protection: Low voltage、over voltage、wrong polarity, over current、short circuit、overheat
Weight: 20 kg
Size: 300 x 150 x 500 mm

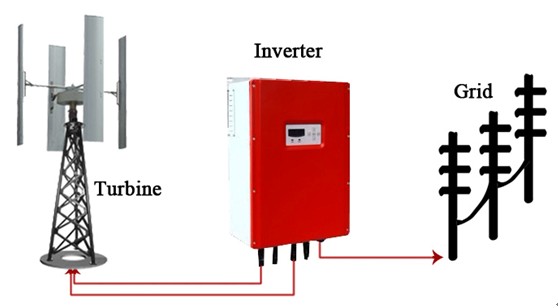

Wiring

Packing

Case one: rotor blades
Box dimension: 163 x 57 x 56 cm; Weight: 65 kg

Case two: wind generator assembly
Box dimension: 108 x 62 x 53 cm; Weight:55 kg
