Vertical Wind Generator
FD3.2-3000-B
Spinning in the lightest of breezes ! Low rotation speed !
We introduces the newest vertical axis wind generator.
Feature:
Energy efficient, reliable, roof mounted and affordable
Have very little vibration
Will catch wind from any direction
Produce little noise
Are a high performance sustainable renewable energy source
3KW Wind Generator Specifications
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Height of tower recommended |
3 ~ 6 meter high with pipe diameter of 120mm |
TURBINE |
Rotor height |
2.95 m |
Rotor diameter |
3 m |
Number of blades |
6 blades, of aluminum alloy material |
Turbine Weight |
80 kg |
GENERATOR |
Type |
3 phase PMG |
Rated power |
3000W |
Max power |
3500W |
Nominal voltage |
240V or 120V |
| Kilowatt Hours Per Month |
396 kWh/month /average 5.5 m/s |

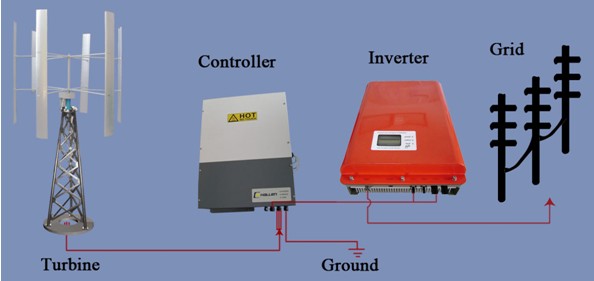

3KW grid tie controller

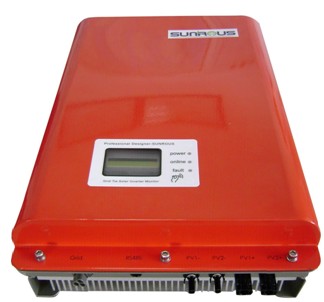

3KW grid tie inverter
Specification
MODEL |
GI3000W |
GI3800W |
Max. DC input power |
3150W |
3800W |
Max. DC input voltage |
600V |
MPPT range |
200~550V |
Max. DC input current |
15A |
15A |
Max. number of strings |
2 |
3 |
Rated output power |
3000W |
3500W |
Max. output current |
16A |
21A |
Nominal AC Voltage |
220V – 240V/180V – 260V |
AC grid frequency |
50HZ / 60HZ / ±4.5HZ |
Power factor |
1 |
THD |
<3% |
AC connection |
Single phase |
Max. efficiency / Euro-ETA |
>96.0% / >95.0% |
Protection |
DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault. |
Idle consumption |
<0.5W |
Operating temperature |
-25 ~ +55 |
Ambient humidity |
0～95% |
Enclosure type |
IP65 |
Topology |
HF-transformer |
display |
LED&LCD |
Interfaces: |
RS485 |
Electro. compatibility |
IEC62103/EN50178/EN61000-6-1/2/3 |
Dimensions/mm |
350 x 580 x 166 |
Weight /kg |
24 |
24 |
Packing details:
Box one : rotor blades
Box dimension: 280 x 51 x 42 cm; Weight: 65 kg
Box two: wind generator assembly
Box dimension: 108 x 62 x 53 cm; Weight : 110 kg
