Vertical Wind Generator

FD3.2-3KW

Spinning in the lightest of breezes !             Low rotation speed !

We introduces the newest vertical axis wind generator.

Feature:

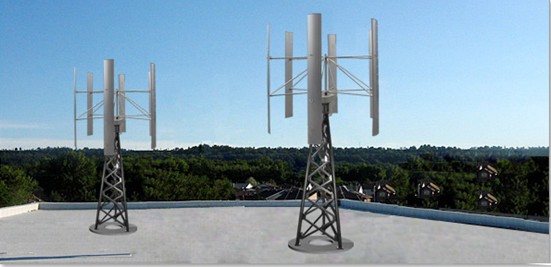

Energy efficient, reliable, roof mounted and affordable
Have very little vibration
Will catch wind from any direction
Produce little noise
Are a high performance sustainable renewable energy source

The electrical power produced by the FD3.2-3KW charges 120 volt or 240 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries

Wind Generator Specifications

OVERALL
Cut in wind speed	5 m/sec
Cut out wind speed	14 m/sec
Rated wind speed	12 m/sec
Survival wind speed	60 m/sec
Rated rotor speed	120 rpm
Max rotor speed	140 rpm
Over speed protection	electromagnetic brake
Height of tower recommended	3 ~ 6 meter high with pipe diameter of 120 mm
TURBINE

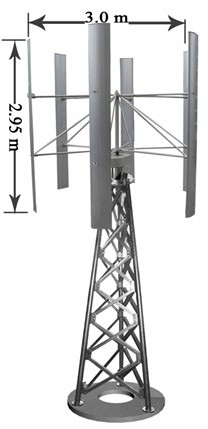

Rotor height	2.95 m
Rotor diameter	3 m
Number of blades	6 blades, of aluminum alloy material
Turbine Weight	80 kg
GENERATOR
Type	3 phase PMG
Rated power	3000W
Max power	3500W
Nominal voltage	48V/96V/120V or Grid Tie

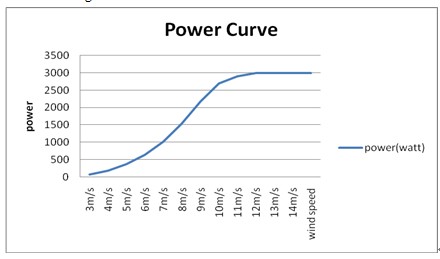

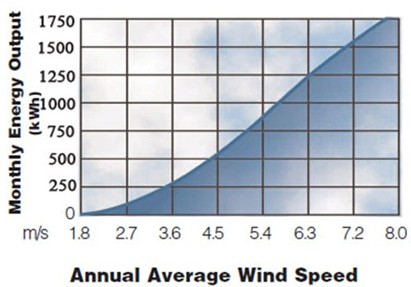

Kilowatt Hours Per Month	396 kWh/month /average 5.5 m/s

Apparent Sound Power Level for the Acoustic Reference Wind Speed



3KW Off Grid Charge Controller(optional)

Model	FKJA-3000W-48	FKJA-3000W-96
Rated output power	3000W
Input voltage range	50~58V	100~116 V
Rated battery voltage	48 V	96V
Max input wind power	3000W
Max input solar power	900 W
Over charge protection	59V±0.5V	118V±0.5V
Recommended battery	48VDC/200AH	96VDC/200AH
Rated Wind Turbine Maximum Input Current	100 A	50A
Protection Function	Over charge, battery reverse-connection Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake.
Self Consumption	< 10 mA
Size	440 x 430 x 270mm 10 kg 440 x 430 x 100mm 6 kg

3KW Off Grid Inverter(optional)

Model	PI-3000-24	PI-3000-48	PI-3000-96	PI-3000-120
Output power	3000 watts continuous power/6000 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	up to 95%
No-load draw	＜1.2 A
Output wave form	Pure Sine Wave
Input voltage range	21~30VDC	42~60VDC	85~120VDC	100~150VDC
Over voltage shutdown	30.5V	61.2V	122V	155V
Under voltage shutdown	19.5V	42V	85V	95 V
Over load shutdown	4500W
Low voltage alarm	Audible
Protection	Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown
AC receptacle	3 x 3 prong receptacles
Warranty	1 year
Weight	6.1 kg
Dimension	380 x 150 x 90 mm

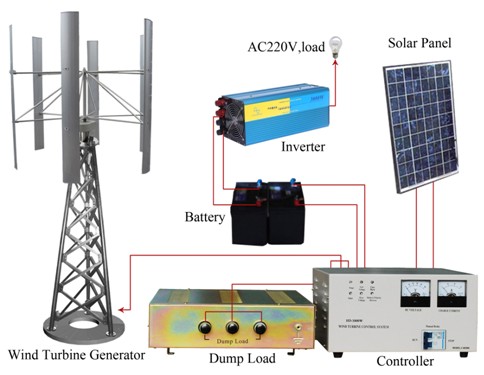

Wiring

Packing details

Box one : rotor blades
Box dimension: 280 x 51 x 42 cm; Weight : 65 kg

Box two : wind generator assembly
Box dimension: 108 x 62 x 53 cm; Weight : 110 kg
