20KW Grid Tie Wind Generator

WFDG20

Reduce or Eliminate Your Electricity Bill

Reduce or Eliminate Your Electricity Bill
Introducing WFDG20 – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

WFDG20 is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs. It includes wind generator, controller with dump load and grid tie inverter. With no batteries, WFDG20 connects directly to your home. When the wind is blowing, your home is powered (in part) by WFDG20; when it’s not, your home is seamlessly powered by your utility as usual.. If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

And you do not need the most disposable part of a wind power system --- the batteries. Without the repeated purchase of batteries.

Features :

Reliable passive self furling
Autobrake slows down the blades spin when the batteries are charged
Marine quality powder coated aluminium body, water tight housing
Iron Boron Neodymium magnet alternator.

Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
Two years warranty; operational life expected to be in excess of 15 years.

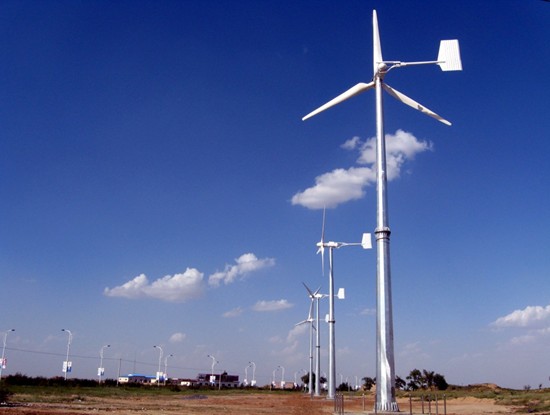

20KW Wind Generator
Rated Power	20 KW at wind speed 10m/s
Max Power	25 KW

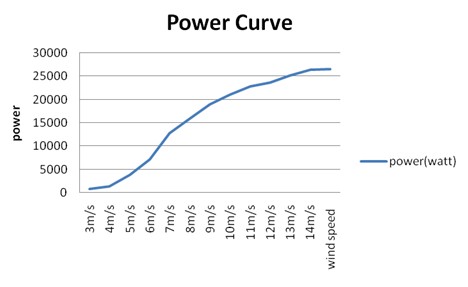

Kilowatt Hours Per Month	3,270 kWh/month /average 5.8m/s
Voltage Options	240V, 360V & Grid Tie
Start Wind Speed	4 m/s
Rated Wind Speed	10 m/s
MAX WIND SPEED	45 m/s
Cut-Out Wind Speed	13 m/second
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Side furling with gravity return & Manual braking
Temperature Range	-30°C~60°C
Rotor Diameter	10 m
Swept Area	78.50 m2
Rotor speed	180 rpm
Blade number	3
Blade material	Reinforced fibreglass
Noise	Max 5-8 dBA above background
Generator	3 phase permanent magnet alternator
Tower Top Weight(kg)	750

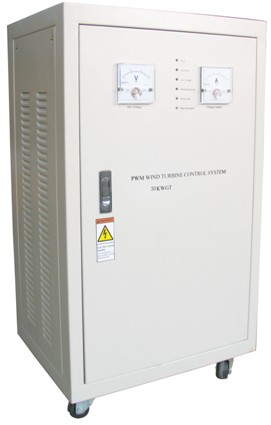

20KW Grid tie controller and Dump load
Model	HCCG-20KW
Input date
Rated Wind Turbine Power	20 KW
Rated Solar Panel Power	6,000W
Voltage Range	0~600V
Rated Maximum Input Current	55A
Output date

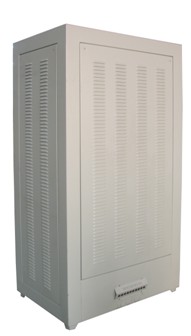

Max dump load power	20 KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥600V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	60A
Solar panel fuse (A)	20A
DC output fuse (A)	55A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Controller dimension Dump Load dimension	590550330mm 770550460mm
Controller Weight Dump Load Weight	42 kg 36 kg

20KW Grid tie inverter
Model	BNWG-20KS
Input data
Recommended generator power	20 KW
Rated operating voltage	200 V
Max. DC voltage	780 V
DC voltage	200 V
Max. input current	100 A
Input DC voltage range(VDC)	200-780 V
Output date
Max. AC power	20 KW
Rated AC power	25 KW
Harmonic distortion of grid current	<3%
Rated AC voltage	380 VAC
Rated AC frequency	50 Hz/60 Hz
Short –circuit proof	Yes
Others
Max. Efficiency	94 %
Power Factor(PF)	≥0.99
Overload ability	150%, 10 seconds
Protection degreee	IP65
Insulation intensity(input and output)	1500VAC, 1 minute
Noise(1meter)	≤50dB
Operation temperature	-30°C~60°C
Size(L×W×H mm)	800 x 600 x 2260 mm
Weight	280 kg
Protection	Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown. Reverse polarity shut down

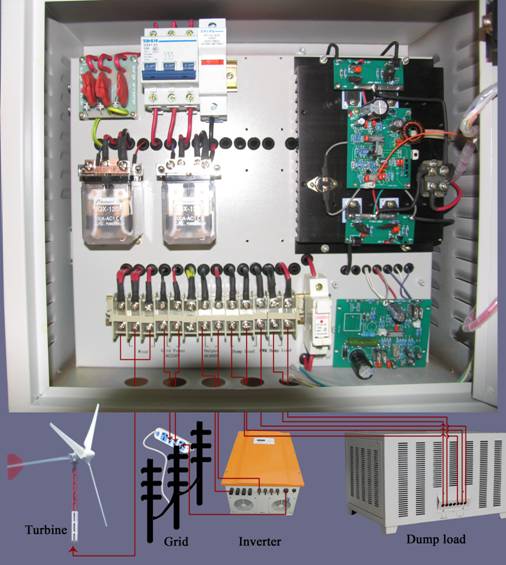

Electrical Installation

Errors expected and possible alternations without prior notice.

Warranty: 2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
