15KW Single Phase Off-Grid Wind/Solar Hybrid System

HY-15KW, 8,000W wind & 6,900W solar

.

A "hybrid" electric system that combines wind and solar technologies offers several advantages over either single system.

Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce electricity consistently throughout the year.  It combines the best of both worlds !

Performance: 1,800 - 2,440 AC Kilowatt-hours (kWh's) per month (depending on wind and solar resources)

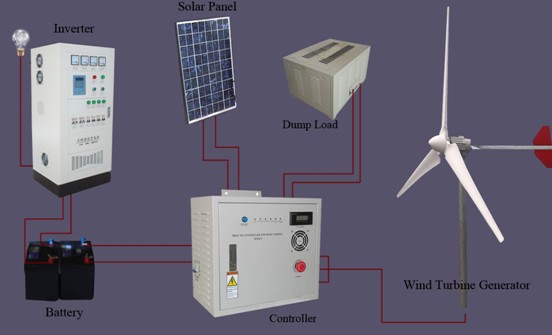

This system includes:

• 1 set of WFD8KW/240V wind turbine generator with 15m tower
• 30 pieces of 230W/24V solar panel
• 1 pc of 15 KW Wind/Solar Hybrid Controller HD-15KW-240
• 1 pc of 15 KW single phase inverter PI-15KW-240
• 18 x 12V/200Ah battery

8KW/220V Wind Turbine
Model	WFD8KW
Rated  Power	8 KW at wind speed 11m/s
Kilowatt Hours Per Month	1,080 kWh/month /average 5.8m/s
Max  Power	10 KW
Voltage Options	120V,220V, 240V& Grid Tie
Start Wind Speed	3 m/s
Rated Wind  Speed	11 m/s
MAX WIND SPEED	45 m/s
Cut-Out Wind Speed	13 m/second
Over speed Protection	Auto Furl and Dump Load
Temperature Range	-30°C~60°C
Rotor Diameter	5.20 m
Swept Area	21.23 m2
Rotor speed at 8KW power	280 rpm
Blade number	3
Blade material	Reinforced fibreglass
Rotor thrust(at 20 meters/second)	5,500 Newton
Generator	3 phase Neodymium permanent magnet
Noise	Max 5-8 dBA above background
Tower Top Weight	180 kg

.

250W Polycrystalline Solar Panel
ASNM250P-60 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type	250P-72
Module Efficiency              ŋm(%)	15,37
Cell Efficiency                ŋc(%)	17,54
Power Peak                    Pm(W)	250
Maximum Power Voltage         Vm(V)	30,71
Maximum Power Current         Im(A)	8,14
Open Circuit Voltage            Voc(V)	44,23
Short circuit current              Isc(A)	8,81
Maximum System Voltage         (VDC)	1000
Power output tolerances           ( % )	±3
Max-Series Fuse                  (A)	20
Operating/Storage Temp.          (°C)	-40 ~85
Dielectric Insulation Voltage        (VDC)	3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature	45±2°C
Pm Temperature Coefficient   (%/°C)	-0.44
Voc Temperature Coefficient  (%/°C)	-0.36
Isc Temperature Coefficient   (%/°C)	0.033
MECHANICAL  FEATURES
Cell Size                       (mm)	156 x 156
Number of cells	6 x 10 – polycrystalline silicon cell
Module Dimensions              (mm)	1640 x 992 x 40
Module Weight                  (kg)	19
Front Glass	3.2mm tempered glass
Back Cover	TPT(Tedlar-PET-Tedlar)
Frame	Anodized aluminum alloy
Junction box	IP65-6 by-pass diodes serviceable
Connectors	IP67 type MC4
Output Cables                  (mm)	900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)	520
1 Pallet	24 modules
Container Loading                (ft)	672modules
Capacity 40’HQ	(28 pallets)

.

Hybrid Controller HD-15KW and Dump load
Model	HD-15KW-240
Rated output power	15 KW
Input voltage range	200~300 V
Rated battery voltage	240V
Max input wind power	8,000W
Max input solar power	8,000KW
Over charge protection	300V±0.5V
Recommended battery	240VDC/200AH
Maximum Input Current	65A
Protection Function	Over charge,  battery reverse-connection  Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake.
Self Consumption	< 10 mA
Size	Controller :  560 x 400 x 240          22KG Dump load :  690 x 450 x 530 mm     35kg
Warranty	3 year

.

.

15KW Power Inverter(PI-10KW-192), single phase
Model	PI-15KW-220
Output power	10KW continuous power/30KW peak power
Output voltage	Single Phase,  220VAC
Optimum efficiency	up to 92%
No-load drawing	＜ 2 A
Output wave form	Pure Sine Wave
Rated input voltage	220V DC
Input voltage range	200~300VDC
Input current(A)	65
Over voltage shutdown	305V
Under voltage shutdown	185V
Output voltage precision	Single  phase,  AC220V±3%
Power factor(PF)	0.8
Over load shutdown	15KW
Low voltage alarm	Audible
Total Harmonic	<5%（line load）
Operating temperature	-25~+60℃
Protection	Over voltage, Low voltage alarm, Over load, Over heat, Short circuit
Electrical insulation properties	1500Vac， 1 minute
Warranty	3 year
Shipping Weight/Dimension	93 kg/550 x 480 x 1100 mm

.

Maintenance free Lead Crystal Battery New Technology The invention of the lead crystal battery is a breakthrough in battery history. Based on the composite electrolyte and proprietary intellectual property rights, makes the reaction of the electrolyte formation caused the forming for the crystal state. Advantages 1. Ideal green and environmental protection battery. Lead crystal battery is using special SIO2 composite electrolyte to replace the sulfuric acid solution of traditional lead-acid battery. The electrolyte is non-toxic, non-smell, to surrounding environment. 2. Excellent high and low temperature operating characteristics Working temperature from -40°C~65°C 3. Easy for depth discharge Working life of is no effected by the general over-discharge.   Excellent recovery capacity of charge-discharge. 5. Long working life Lead crystal battery can work for 10 to 15 years,  and charging time is 25% faster than normal lead-acid batteries and gel batteries.   Item 6-CNFJ-200 Nominal Voltage 12V Nominal Capacity 200Ah Working Temperature -40°C~65°C Dimension  330 x 172 x 214mm Weight 62  kg Terminal type A/F Charge Cycle 1000 Working Life 10 – 15 years

.

Warranty :  10 years for solar panel and 3 years for the rest of the system

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.

.
