1KW Vertical Wind Generator


LFD1.65-1000

Spinning in the lightest of breezes !    Low rotation speed !

Feature :

Energy efficient, reliable, roof mounted and affordable

Have very little vibration

Will catch wind from any direction

Produce little noise

Are a high performance sustainable renewable energy source

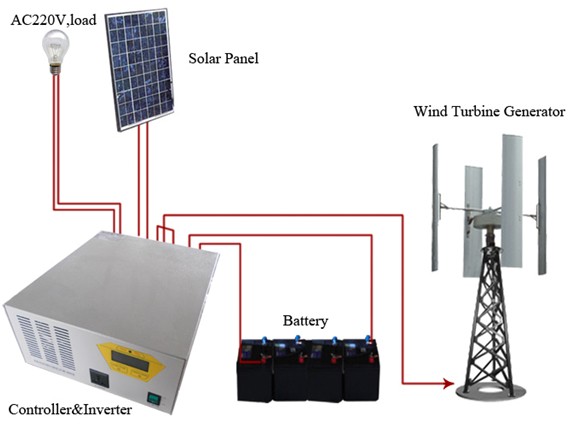

The electrical power produced by the LFD1.65-1000 charges 48 volt or 96 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.

1KW vertical axis wind generator

Specifications:

OVERALL
Cut in wind speed
5 m/sec
Cut out wind speed
14 m/sec
Rated wind speed
12 m/sec
Survival wind speed
60 m/sec
Rated rotor speed
120 rpm
Max rotor speed
150 rpm
Over speed protection
electromagnetic brake
Height of tower recommended
3 ~ 6 meter high with pipe inner diameter of 120mm
TURBINE
Rotor height
1.65 m
Rotor diameter
1.6 m
Number of blades
6 blades, of aluminum alloy material
Turbine Weight
45 kg
GENERATOR
Type
3 phase PMG
Rated power
1000W
Max power
1200W
Nominal voltage
240V or 120V
Kilowatt Hours Per Month
162 kWh/month /average 5.3 m/s

1KW Inverter & Controller(optional)

Item NO
WWSI1010-48
Output Power
1kVA
Rated Wind Turbine Power
1kW
Rated PV Power
300W
Rated Battery Voltage
48 VDC
Battery Floating Charge Voltage
60 VDC
Over Voltage Shutdown
68 VDC
Over Voltage Recovery
66 VDC
Under Voltage Shutdown
42 VDC
Under Voltage Recovery
48 VDC
No Load Loss
0.35 A
Output Wave
Pure Sine Wave
Output Vac
220 VAC
Total Harmonic Distortion
≤4%
Display Method
LCD
Output Frequence
50 Hz±0.05Hz
Inverter Efficiency
90%
Load Capacity
120% ,1min 150%  10S
Noise Level(1m)
≤40dB
Isolate Level
1500VAC,1min
Operation Ambient Temperature
-20~50℃
Protection Type
high battery, low battery, over load , short circuit, over temperature, pole-confusion protection for storage battery, automatic dump-load function.
Cooling
By Fan
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement.

Packing:

Box one : rotor blades,  dimension: 280 x 51 x 42 cm;   Weight : 55 kg

Box two : wind generator assembly, dimension: 108 x 62 x 53 cm;   Weight : 65 kg
