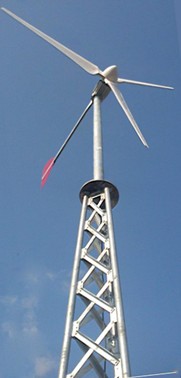

7.5KW Grid-Tie Wind Generator


WFDG7.5

Reduce or Eliminate Your Electricity Bill

Introducing WFDG7.5   – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

WFDG7.5  is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs.  It includes wind generator, controller with dump load and grid tie inverter.   With no batteries, WFDG7.5 connects directly to your home.  When the wind is blowing, your home is powered (in part) by WFDG7.5; when it’s  not, your home is seamlessly powered by your utility as usual..  If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

And you do not need the most disposable part of a wind power system --- the batteries.  Without the repeated purchase of batteries, The house will use the electricity from the system first, and if needed from the utility.

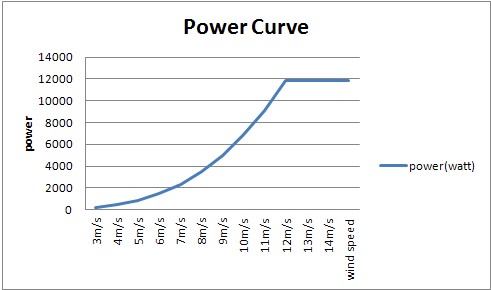

7.5KW Wind Generator Specification

Model
WFDG7.5
Rated  Power
7.5 KW at wind speed 11m/s
Max  Power
11 KW
Voltage Options
96V, 120V,240V & Grid Tie
Start Wind Speed
3m/s
Rated Wind  Speed
11 m/s
MAX WIND SPEED
45m/s
Cut-Out Wind Speed
12m/second
Survival Wind Speed
45m/s
Kilowatt Hours Per Month
770 kWh/month /average 5.8m/s
Over speed Protection
Auto Furl and Dump Load
Temperature Range
-30°C~60°C
Rotor Diameter
4.80  m
Swept Area
18.08 m2
Rotor speed at 5KW power
280 rpm
Blade number
3
Blade material
Reinforced fibreglass
Rotor thrust(at 20 meters/second)
3,950 Newton
Generator
3 phase Neodymium permanent magnet
Noise
Max 4-7 dBA above background
Tower Top Weight
163 kg

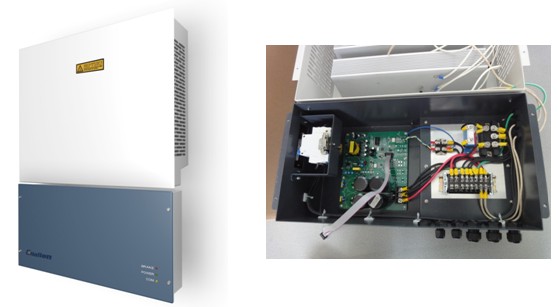

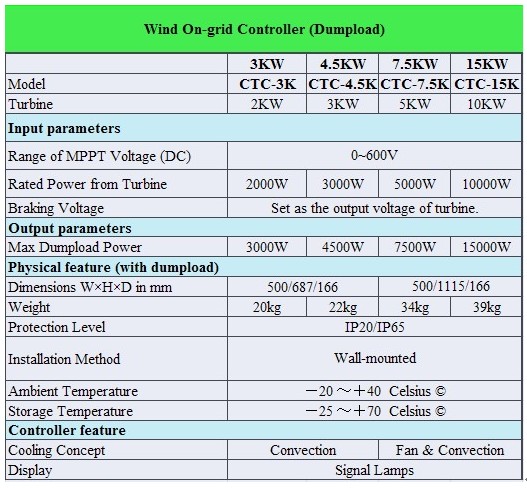

7.5KW Grid tie controller

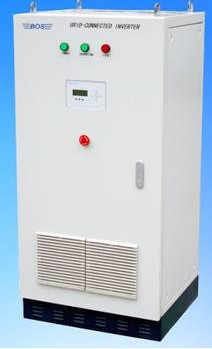

10KW Grid tie inverter (optional)

Model
BNWG-10KS
Input data
Recommended generator power
10 KW
Rated operating voltage
200 V
Max. DC voltage
780 V
DC voltage
200 V
Max. input  current
150 A
Input DC voltage range(VDC)
200-780 V
Thermally monitored  varistors
Yes
Output date
Max. AC power
10 KW
Rated AC power
12 KW
Harmonic distortion of grid current
<3%
Rated AC voltage
380 VAC
Rated AC frequency
50 Hz/60 Hz
Short –circuit proof
Yes
Others
Max. Efficiency
94 %
Power Factor(PF)
≥0.99
Overload ability
150%, 10 seconds
Protection degree
IP65
Insulation intensity(input and output)
1500VAC, 1 minute
Noise(1meter)
≤50dB
Operation temperature
-25℃-+55℃
Shipping Weight/Dimension
160kg/550 x 480 x 980 mm
Protection
Over voltage, Low voltage, Over load, over heat, Short circuit.   Reverse polarity.

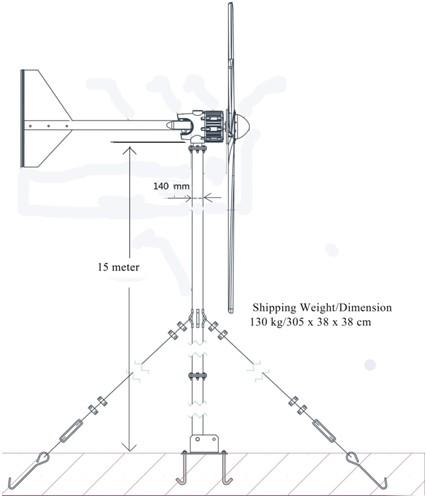

15 meter wire guyed tower



Errors expected and possible alternations without prior notice.

Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
