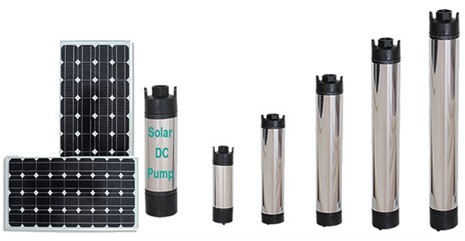

Solar Submersible Water Pump

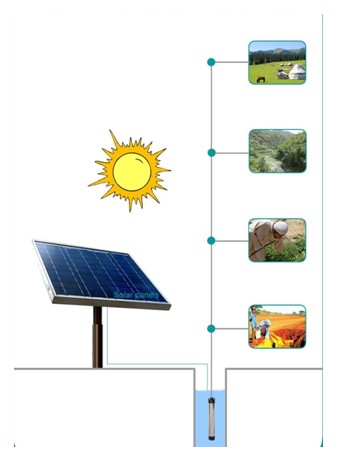

TF2480 series submersible pumps run directly off solar panels。It is used mostly for pumping from wells. With flow 45 liter per minute and Vertical lift from 5 to 100 meter, it is great for livestock watering, irrigation, pond, open tank, remote homes and cabins. People use it to store the water in a holding tank。 These solar applications made economic sense because the location was too remote to run a long power line. A solar-powered water system is one of the easiest solar power systems to install, since you will not need a battery or battery charging equipment. When the sun is shining, the system is pumping, when the sun is not shining, the system is off—simple.

Features:

  • Long -life 24 VDC operation
  • For 4" wells or larger
  • Corrosion-proof housing with stainless-steel fasteners
  • Runs dry without damage
  • 50 mesh stainless steel inlet screen

Specification

Motor voltage
Flow Rate
Intake size
Outlet size
Protection
Rotation speed
24V
45L/min
76mm
32mm
IP68
18000rpm



Model
Vertical Lift
Motor Current
Motor Power
Panel
Power
Weight
Pump+Solar
Price
EX WORKS
Meter
Feet
TF2480-15
15
57
10 A
240 W
320 W
34 kg
Pump :USD94
PV :USD224
TF2480-25
25
95
20 A
480 W
640 W
66 kg
Pump :USD141
PV :USD448
TF2480-40
40
128
30 A
720 W
960 W
82 kg
Pump :USD343
PV : USD672
TF2480-60
60
192
32 A
768 W
1000 W
88 kg
Pump :USD545
PV :USD700
TF2480-70
70
224
49 A
1188 W
1560 W
145 kg
Pump :USD677
PV :USD1092
TF2480-80
80
256
54 A
1296 W
1680 W
165 kg
Pump :USD735
PV :USD1176
TF2480-100
100
320
67 A
1608 W
2120 W
220 kg
Pump :USD919
PV :USD1484



Motor voltage
Flow Rate
Intake size
Outlet size
Protection
Rotation speed
48V
45L/min
76mm
32mm
IP68
18000rpm



Model
Vertical Lift
Motor Current
Motor Power
Panel
Power
Weight
Pump+Solar
Price
EX WORKS
Meter
Feet
TF4880-15
15
57
5 A
240 W
320 W
34 kg
Pump :USD96
PV :USD224
TF4880-25
25
95
10 A
480 W
640 W
66 kg
Pump :USD209
PV :USD448
TF4880-40
40
128
15 A
720 W
960 W
82 kg
Pump :USD343
PV : USD672
TF4880-50
50
164
20 A
960 W
1240 W
130 kg
Pump :USD487
PV :USD868
TF4880-65
65
213
25 A
1200 W
1560 W
155 kg
Pump:USD612
PV :USD1092
TF4880-80
80
256
30 A
1440 W
1880 W
170 kg
Pump :USD735
PV :USD1316
TF4880-100
100
320
35 A
1680 W
2200 W
225 kg
Pump :USD919
PV :USD1554





Wiring Diagram

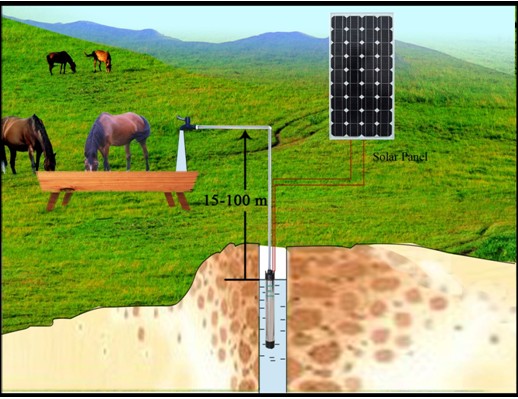

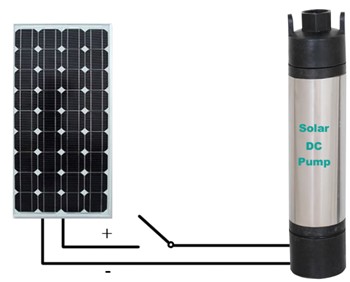

Option A:Pump connect directly to Solar Panel

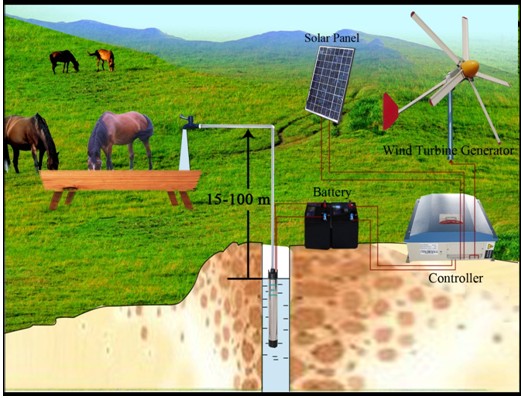

Option B:
Pump connect to 24V or 48V Battery Bank and Solar Panel or Wind Generator
