10KW Grid-Tie Wind/Solar Hybrid System

HY-GRID-10KW



The wind generator and solar modules is a revolutionary way of cost saving in renewable energy generation.

At night and no wind time all the electricity is supplied by the mains. During the daylight or windy hours, the system generates some power, offsetting the consumption of electricity from the utility and cutting electric bills. The balance of the kWh required by your loads is automatically drawn from the input lines. If the wind  generator or solar modules is producing more electricity than you are using, the system will feed the surplus of the energy back to the utility. It may even spin your electric meter backwards, further reducing your monthly bill.

This system includes:

• 5KW/280V wind turbine generator with 12 m guyed tower
• 20 x 250W solar modules with 20 years warranty
• 10KW Grid Tie Wind/Solar Hybrid controller
• 10 KW Grid Tie Inverter



5KW Wind Generator
Model	WFD5KW
Rated  Power	5 KW at wind speed 10m/s
Max  Power	6 KW
Voltage Options	96V, 120V,240V & Grid Tie
Start Wind Speed	3m/s
Rated Wind  Speed	10 m/s
MAX WIND SPEED	45m/s
Cut-Out Wind Speed	12m/second
Survival Wind Speed	45m/s
Kilowatt Hours Per Month	770 kWh/month /average 5.8m/s
Over speed Protection	Auto Furl and Dump Load
Temperature Range	-20 to +60 Deg. C
Rotor Diameter	5.04 m
Swept Area	20 m2
Rotor speed at 5KW power	250 rpm
Blade number	3
Blade material	Reinforced fibreglass
Rotor thrust(at 20 meters/second)	3,950 Newton
Generator	3 phase Neodymium permanent magnet
Noise	Max 4-7 dBA above background
Tower Top Weight	163 kg



250W Polycrystalline Solar Panel
ASNM250P-60 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type	250P-72
Module Efficiency              ŋm(%)	15,37
Cell Efficiency                ŋc(%)	17,54
Power Peak                    Pm(W)	250
Maximum Power Voltage         Vm(V)	30,71
Maximum Power Current         Im(A)	8,14
Open Circuit Voltage            Voc(V)	44,23
Short circuit current              Isc(A)	8,81
Maximum System Voltage         (VDC)	1000
Power output tolerances           ( % )	±3
Max-Series Fuse                  (A)	20
Operating/Storage Temp.          (°C)	-40 ~85
Dielectric Insulation Voltage        (VDC)	3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature	45±2°C
Pm Temperature Coefficient   (%/°C)	-0.44
Voc Temperature Coefficient  (%/°C)	-0.36
Isc Temperature Coefficient   (%/°C)	0.033
MECHANICAL  FEATURES
Cell Size                       (mm)	156 x 156
Number of cells	6 x 10 – polycrystalline silicon cell
Module Dimensions              (mm)	1640 x 992 x 40
Module Weight                  (kg)	19
Front Glass	3.2mm tempered glass
Back Cover	TPT(Tedlar-PET-Tedlar)
Frame	Anodized aluminum alloy
Junction box	IP65-6 by-pass diodes serviceable
Connectors	IP67 type MC4
Output Cables                  (mm)	900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)	520
1 Pallet	24 modules
Container Loading                (ft)	672modules
Capacity 40’HQ	(28 pallets)

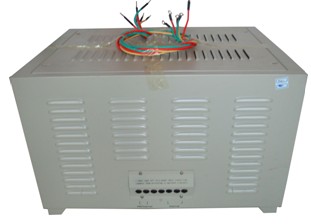

10KW Wind/Solar Hybrid Grid Tie Controller with Dump Load
Model	HCCG-10KW
Input date
Rated Wind Turbine Power	10 KW
Rated Solar Panel Power	3,000W
Voltage Range	0~550V
Output date
Max dump load power	10 KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥550V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	40A
Solar panel fuse (A)	15A
DC output fuse (A)	40A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Controller dimension Dump Load dimension	570*550*330mm 770*550*460mm
Controller Weight Dump Load Weight	27 kg 36 kg



10KW Grid tie inverter
Model	BNWG-10KD
Isolation	Frequency transformer isolation
Maximum DC input power	10KWp
Maximum input voltage allows the fan	780Vdc
Maximum Power Point Tracking (MPPT) range	150Vdc-780Vdc
Maximum input current	100A
Nominal AC output power	10KW
Max. AC output power	12KW
THD of AC current	<3%（Rated power）
Power factor	>0.99
Max. efficiency	94%
Euro efficiency	92%
Output rating voltage	400Vac 50HZ
Allowed Grid Voltage Range	310~450Vac
Allowed Grid Frequency Range	47.5~51.5Hz
Internal power consumption an night	<10W
Automatic restart after power failure time	2min
Protection	Reverse polarity, short circuit, island, overheating and overload etc
Comm. interfaces	RS485（Modbus Agreement）
Operating Temp.	-25℃~+60℃
Relative humidity	0~90%，Non-condensing
Noise	≤60dB
Protection degree	IP20(indoor)
Shipping Weight/Dimensions	150kg/600*500*1000mm
Communications monitoring	Inverter via RS485 communication for start-stop control and routine data monitoring

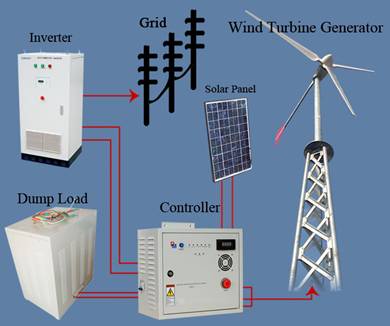

Wiring diagram



Errors expected and possible alternations without prior notice.

Warranty:

Solar Panel :  20 years.

Note:
