3KW Grid-Tie Wind/Solar Hybrid System

HY-GRID-3KW



Wind and solar hybrid energy systems offer a unique way to offset a home's electrical bills. By utilizing both wind turbines and solar arrays to generate electricity, hybrid systems are able to overcome some of the disadvantages of using just one form of renewable energy.

Solar and Wind Hybrid Generation Systems

At night and low wind, all the electricity is supplied by the mains. During the daylight or the windy hours, the system generates some power, offsetting the consumption of electricity from the utility and cutting electric bills. The balance of the kWh required by your loads is automatically drawn from the input lines. If the system are producing more electricity than you are using, the system will feed the surplus of the energy back to the utility. It may even spin your electric meter backwards, further reducing your monthly bill.

Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce electricity consistently throughout the year.

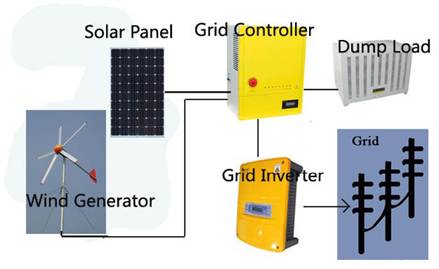

This system includes:

• 2KW/200V wind turbine generator with 9 m guyed tower
• 5 x 200W solar modules with 20 years warranty
• 3KW Grid Tie Wind/Solar Hybrid controller
• 3 KW Grid Tie Inverter, single phase

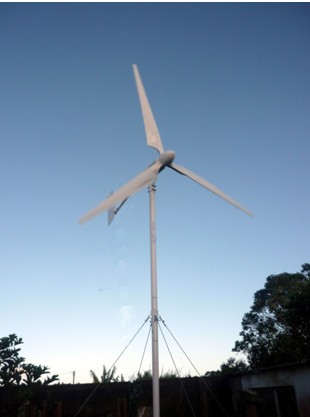

2 KW Wind Generator
Model	WFD2KW
Rated  Power	2 KW at wind speed 10m/s
Max  Power	2.50 KW
Voltage Options	48V, 96V, 120V, 240V & Grid Tie
Start Wind Speed	3m/s
Rated Wind  Speed	10 m/s
Survival Wind Speed	40m/s
Cut-Out Wind Speed	13 m/second
Kilowatt Hours Per Month	350 kWh/month /average 5.5 m/s
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Side furling with gravity return
Gearbox	None, Direct Drive
Temperature Range	-40 to +60 Deg. C
Rotor Diameter	2.8 m
Swept Area	6.15 m2
Rotor speed at 2KW power	380 rpm
Blade number	3
Blade material	Reinforced fibreglass
Maximum Lateral Thrust	760 Newton
Generator	Neodymium permanent magnet
Noise	Max 5-8 dBA above background
Tower Top Weight(kg)	120
9 meter wire guyed tower(optional)

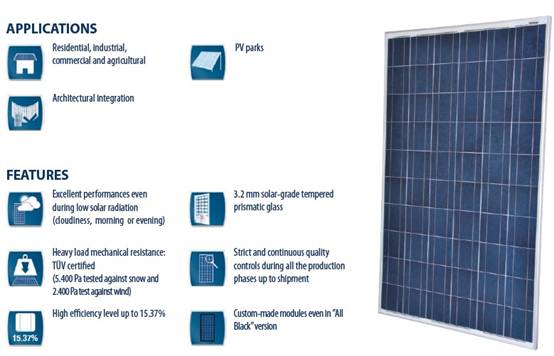

200W Polycrystalline Solar Panel
ASNM200P-72 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type	200P-72
Module Efficiency              ŋm(%)	15,68
Cell Efficiency                ŋc(%)	18,15
Power Peak                    Pm(W)	200
Maximum Power Voltage         Vm(V)	37,52
Maximum Power Current         Im(A)	5,33
Open Circuit Voltage            Voc(V)	45,21
Short circuit current              Isc(A)	5,96
Maximum System Voltage         (VDC)	1000
Power output tolerances           ( % )	±3
Max-Series Fuse                  (A)	20
Operating/Storage Temp.          (°C)	-40 ~85
Dielectric Insulation Voltage        (VDC)	3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature	45±2°C
Pm Temperature Coefficient   (%/°C)	-0.44
Voc Temperature Coefficient  (%/°C)	-0.36
Isc Temperature Coefficient   (%/°C)	0.033
MECHANICAL  FEATURES
Cell Size                       (mm)	125 x 125
Number of cells	6 x 12– polycrystalline silicon cell
Module Dimensions              (mm)	1580 x 808 x 35
Module Weight                  (kg)	14
Front Glass	3.2mm tempered glass
Back Cover	TPT(Tedlar-PET-Tedlar)
Frame	Anodized aluminum alloy
Junction box	IP65-6 by-pass diodes serviceable
Connectors	IP67 type MC4
Output Cables                  (mm)	900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)	520
1 Pallet	24 modules
Container Loading                (ft)	672modules
Capacity 40’HQ	(28 pallets)

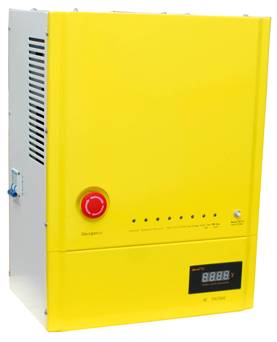

3KW Wind/Solar Hybrid Grid Tie Controller with Dump Load
Model	HCCG-3KW
Input date
Rated Wind Turbine Power	1.5KW
Rated Solar Panel Power	1.5KW
Voltage Range	0~500V
Output date
Max dump load power	4 KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥450V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	20A
Solar panel fuse (A)	10A
DC output fuse (A)	20A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Controller dimension Dump Load dimension	480*360*230mm 450*410*170mm
Controller Weight Dump Load Weight	18 kg 8 kg



3KW Grid tie inverter
MODEL	GI3000W
Max. DC input power	3000W
Max. DC input voltage	600V
MPPT range	100~450V
Max. DC input current	15A
Rated output power	3000W
Max. output current	13.6A
Nominal AC Voltage	220V – 240V/180V – 260V
AC grid frequency	50HZ / 60HZ / ±4.5HZ
Power factor	1
THD	<3%
AC connection	Single phase
Max. efficiency / Euro-ETA	>96.0% / >95.0%
Protection	DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault.
Idle consumption	<0.5W
Operating temperature	-30°C~60°C
Ambient humidity	0～95%
Enclosure type	IP65
Interfaces:	RS485
Electro.  compatibility	IEC62103/EN50178/EN61000-6-1/2/3
Shipping Weight/Dimension	15kg/342*440*152mm



Errors expected and possible alternations without prior notice.

Warranty:

Solar Panel :  20 years.

Note:
