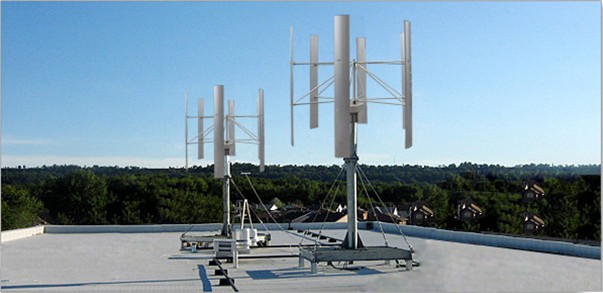

Vertical Wind Generator

FD2.7-2000-B

Spinning in the lightest of breezes !             Low rotation speed !

We introduces the newest vertical axis wind generator：

• Energy efficient, reliable, roof mounted and affordable
• Have very little vibration
• Will catch wind from any direction
• Produce little noise
• Are a high performance sustainable renewable energy source
• Are designed for grid tie (net metering and/)
• In windy areas they can provide 100% of your energy needs

2KW Vertical Wind Generator Specifications

Wind Generator Specifications

OVERALL
Cut in wind speed	5 m/sec
Cut out wind speed	14m/sec
Rated wind speed	12 m/sec
Survival wind speed	60 m/sec
Rated rotor speed	150 rpm
Max rotor speed	170 rpm
Over speed protection	electromagnetic brake
Height of tower recommended	3 ~ 6 meter high with pipe diameter of 120mm
TURBINE
Rotor height	2.7 m
Rotor diameter	2.6 m
Number of blades	6 blades, of aluminum alloy material
Turbine Weight	80 kg
GENERATOR
Type	3 phase PMG
Rated power	2000W
Max power	2500W
Nominal voltage	240V or 120V
Kilowatt Hours Per Month	305 kWh/month /average 5.5 m/s

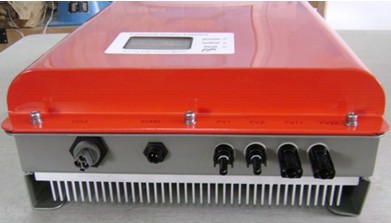

2KW grid tie inverter

Specification

MODEL	GI3000W	GI3800W
Max. DC input power	3150W	3800W
Max. DC input voltage	600V
MPPT range	200~550V
Max. DC input current	15A	15A
Max. number of strings	2	3
Rated output power	3000W	3500W
Max. output current	16A	21A
Nominal AC Voltage	220V – 240V/180V – 260V
AC grid frequency	50HZ / 60HZ / ±4.5HZ
Power factor	1
THD	<3%
AC connection	Single phase
Max. efficiency / Euro-ETA	>96.0% / >95.0%
Protection	DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault.
Idle consumption	<0.5W
Operating temperature	-25 ~ +55
Ambient humidity	0～95%
Enclosure type	IP65
Topology	HF-transformer
display	LED&LCD
Interfaces:	RS485
Electro.  compatibility	IEC62103/EN50178/EN61000-6-1/2/3
Dimensions/mm	350 x 580 x 166
Weight /kg	24	24

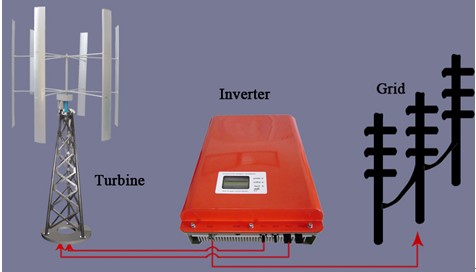

Wiring

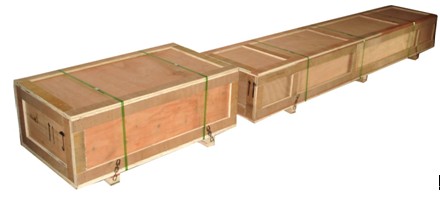

Wind Generator Packing details:

Box 1 : rotor blades
Box dimension: 280 x 51 x 42 cm; Weight : 65 kg

Box 2 : wind generator assembly
Box dimension: 108 x 62 x 53 cm; Weight : 110 kg
