1KW Off Grid Wind Generator

WFD1KW

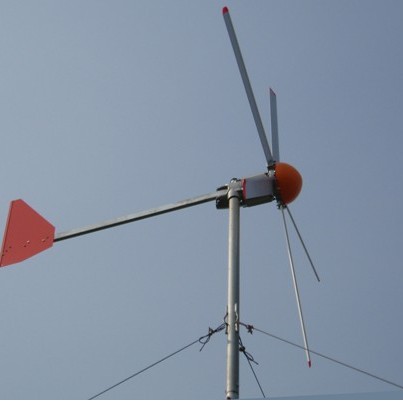

WFD1KW is built on the same platform as the WFD750W, it has a 2.5 m diameter rotor optimised for low and medium speed winds.  It incorporated a charge controller with dump load which slows the turbine down in high winds, reducing noise and mounting system loads.

Battery charge

The WFD1KW is designed for charging high capacity 36/48V DC battery systems and must be installed in conjunction with the HD-1000W regulator which includes the regulator; the dump load; rectifier; fuses; and heat sinks. Loads can be either 36 or 48 V DC equipment or a stand-alone sine wave inverter can be used to power 115V or 230V AC equipment



Model	WFD1KW

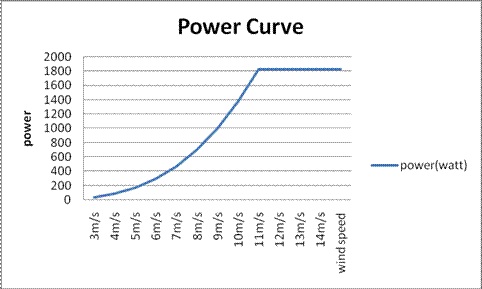

Rated  Power	1000W  at wind speed 10m/s
Max  Power	1800 W
Kilowatt Hours Per Month	158 kWh/month /average 5.4 m/s
Voltage Options	24V,48V, 96V & Grid Tie
Start Wind Speed	3 m/s
Rated Wind  Speed	10 m/s
MAX WIND SPEED	45m/s
Cut-Out Wind Speed	12 m/second
Over speed Protection	Auto furl and dump load
Turbine controller	Wind & Solar Hybrid Controller included
Temperature Range	-30°C~60°C
Rotor Diameter	2.5 m
Swept Area	4.90 m2
Rotor speed	500 rpm
Rotor Starting Torque	0.6Nm
Blade number	5
Blade material	Aluminum alloy
Rotor thrust(at 20 meters/second)	280 Newton
Generator	3 phase  Neodymium permanent magnet alternator
Noise	Max 2-5 dB above background
Tower Top Weight(kg)	36

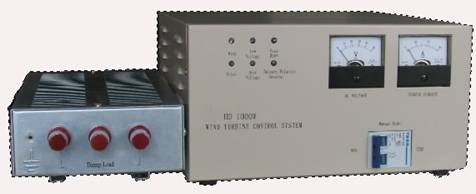

HD-1000W Wind / Solar Charge Controller
Model	HD-1000W-36	HD-1000W-48
Rated output power	1000W
Input voltage range	36~42V	48~58 V
Rated battery voltage	36 V	48V
Max input wind power	1000W
Max input solar power	300 W
Over charge protection	42V±0.5V	58V±0.5V
Recommended battery	36VDC/200AH	48VDC/200AH
Maximum Input Current	40 A	30A
Protection Function	Over charge,  battery reverse-connection, over load, short-circuit, wind turbine automatic brake.
Self Consumption	< 10 mA
Size	Controller:   340x280x160 mm,  7 kg Dump load: 310x150x85 mm  1.8 kg

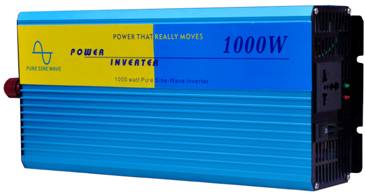

1KW Watts Power Inverter (optional)
Model	PI-1000-36	PI-1000-48
Output power	1000 watts  continuous power/2000 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	＞85%
No-load draw	＜0.8A
Output wave form	Pure Sine Wave
Input voltage range	30~45VDC	42~60VDC
Over voltage shutdown	45V	61.2V
Under voltage shutdown	29V	42V
Over load shutdown	1200W
Low voltage alarm	Audible
Protection	Over voltage, Under voltage, Over load, Overheat, Short circuit
Shipping Weight/ Dimension	3.8 kg/260 x 182 x 100 mm

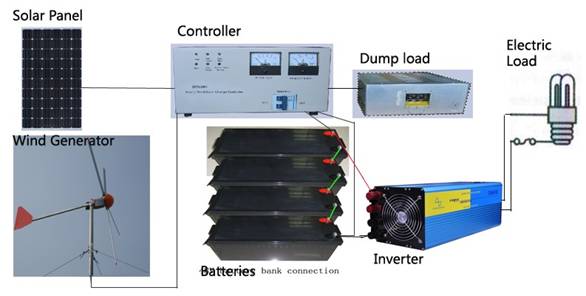

6 meter wire guyed tower(optional) Battery bank This off grid system should use 4 pieces of 12V/200Ah batteries.  The user should buy from local market Packing Wind Generator in carton: 61 x 49 x 25 cm 24 kg; 122x18x15 cm  12 kg 6 m wire guyed tower in carton: 155 x 30 x 30 cm       60 kg Controller/dump load in carton :  51x36x23 cm          9 kg Inverter in carton:   42 x 18 x 10 cm        4 kg
