2KW Vertical Wind Generator


LFD2.7-2000

Spinning in the lightest of breezes !             Low rotation speed !

We introduces the newest vertical axis wind generator.

Feature :

Energy efficient, reliable, roof mounted and affordable

Have very little vibration

Will catch wind from any direction

Produce little noise

Are a high performance sustainable renewable energy source

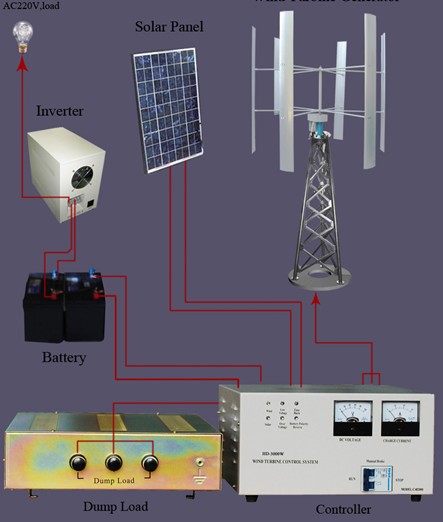

The electrical power produced by the LFD2.7-2000 charges 48/96 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.

Wind Generator Specifications:

OVERALL
Cut in wind speed
5 m/sec
Cut out wind speed
14 m/sec
Rated wind speed
12 m/sec
Survival wind speed
60 m/sec
Rated rotor speed
150 rpm
Max rotor speed
160 rpm
Over speed protection
electromagnetic brake
Height of tower recommended
3 ~ 6 meter high with pipe diameter of 120mm
TURBINE
Rotor height
2.7 m
Rotor diameter
2.6 m
Number of blades
6 blades, of aluminum alloy material
Turbine Weight
80 kg
GENERATOR
Type
3 phase PMG
Rated power
2000W
Max power
2500W
Nominal voltage
240V or 120V
Kilowatt Hours Per Month
305 kWh/month /average 5.5 m/s

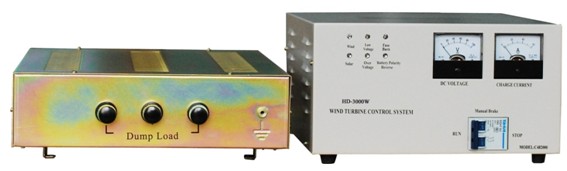

2KW Hybrid Controller Specification

Model
FKJA-2000W-96
FKJA-2000W-48
Rated output power
2000W
Input voltage range
96~116V
48~58 V
Rated battery voltage
96 V
48V
Max input wind power
2000W
Max input solar power
600 W
Over charge protection
116V±1V
58V±0.5V
Recommended battery
96VDC/200AH
48VDC/200AH
Rated Wind Turbine
Maximum Input Current
15 A
30A
Protection Function
Over charge, battery reverse-connection Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake.
Self Consumption
< 10 mA
Size
560 x 560 x 280 mm
Weight
30 kg

Packing

Box one : rotor blades
Box dimension: 280 x 51 x 42 cm;Weight : 65 kg

Box two : wind generator assembly
Box dimension: 108 x 62 x 53 cm; Weight : 110 kg
