Grid Tie Solar Power Kit

The Solar-Power-Generator is a revolutionary way of cost saving in renewable energy generation.

The solar panels produce what's called DC current. A device called an inverter is required to change the DC power generated by your solar system into AC power that most appliances can use.  An inverter is an important piece in your overall solar energy plan.

The solar panels are connected to a grid-tie inverter which is a device that enables solar power users to complement the energy they buy from their electricity supplier with solar power. The inverter converts DC to AC power and sends the extra energy produced back to the utility grid via the electric meter.

At night or during inclement weather all the electricity is supplied by the mains. During the daylight hours, the system generates some power, offsetting the consumption of electricity from the utility and cutting electric bills. The balance of the kWh required by your loads is automatically drawn from the input lines. If the PV panels are producing more electricity than you are using, the system will feed the surplus of the energy back to the utility. It may even spin your electric meter backwards, further reducing your monthly bill.

The Solar Kit is easy to set up and plugs straight in to any mains socket just like your kettle. No need for an electrician.

Installation is simple: secure the solar panels to the aluminum stand and connect the ready made cables. Position on your patio, garden or balcony, anywhere the sun shines. No tools or electrical skills are required, not even a screwdriver.



10 KW Grid-Tie Solar Power Kit, SG-10KW

This SG-10KW kit Includes:

  • 40 x 250 Watt Framed Solar Panel with 25 year limited warranty.
    (Support rack for solar panel can be supplied upon request)
  • 10KW Grid Tie DC to AC Inverter.
  • 30 meter connecting cable.

250W Polycrystalline Solar Panel

ASNM250P-60 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type
250P-72
Module Efficiency              ŋm(%)
15,37
Cell Efficiency                ŋc(%)
17,54
Power Peak                    Pm(W)
250
Maximum Power Voltage         Vm(V)
30,71
Maximum Power Current         Im(A)
8,14
Open Circuit Voltage            Voc(V)
44,23
Short circuit current              Isc(A)
8,81
Maximum System Voltage         (VDC)
1000
Power output tolerances           ( % )
±3
Max-Series Fuse                  (A)
20
Operating/Storage Temp.          (°C)
-40 ~85
Dielectric Insulation Voltage        (VDC)
3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature
45±2°C
Pm Temperature Coefficient   (%/°C)
-0.44
Voc Temperature Coefficient  (%/°C)
-0.36
Isc Temperature Coefficient   (%/°C)
0.033
MECHANICAL  FEATURES
Cell Size                       (mm)
156 x 156
Number of cells
6 x 10 – polycrystalline silicon cell
Module Dimensions              (mm)
1640 x 992 x 40
Module Weight                  (kg)
19
Front Glass
3.2mm tempered glass
Back Cover
TPT(Tedlar-PET-Tedlar)
Frame
Anodized aluminum alloy
Junction box
IP65-6 by-pass diodes serviceable
Connectors
IP67 type MC4
Output Cables                  (mm)
900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)
520
1 Pallet
24 modules
Container Loading                (ft)
672modules
Capacity 40’HQ
(28 pallets)

.

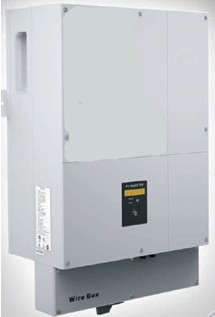

10KW Grid Tie Inverter

Model
PVGI10KW
 Input (DC)
Max. DC power (@ cos ϕ = 1)
11KW
Max. DC voltage
900V
DC nominal voltage
379V
MPP voltage range/DC
300~600V
Min. DC voltage / start voltage
200VDC
Max. input current
36A
Number of MPP trackers
2
Output (AC)
AC nominal power
10,000W
AC voltage range
single phase, 211-264V
AC grid frequency; range
50Hz/60Hz
Nominal output current
36A
Power factor (cos ϕ)
0.99
Harmonics
< 3%
Max. efficiency/ CEC efficiency
96%/95%
Protection devices
DC reverse-polarity protection, AC short circuit protection, ground fault monitoring, grid monitoring
General data
Operating temperature range
–25 °C to 60 °C
Humidity
0 ~ 100%RH(No condensing)
Topology
Transformerless
Interfaces
USB/RS232 card
IP degree of protection
IP65
Compliance
CE/VDE0126-1-1/IEC62109/ENEL guide 2009,/ RD1663/G83/1-1/AS3100/AS4777
Warranty
5 years
Shipping Weight/Dimensions
40kg/61x42x16cm
