WFDG10

10KW Grid-Tie Wind Generator

WFDG10

Reduce or Eliminate Your Electricity Bil

Introducing WFDG10– A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

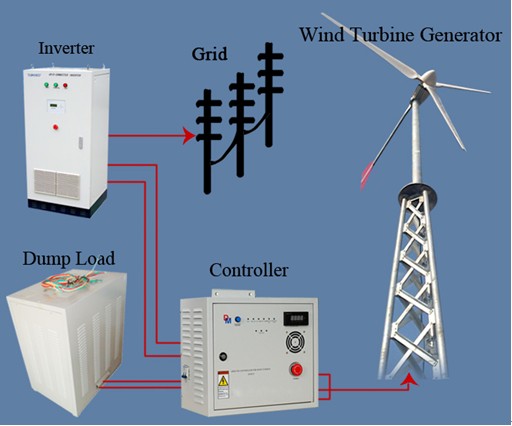

WFDG10 is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs. It includes wind generator, controller with dump load and grid tie inverter. With no batteries, WFDG10 connects directly to your home. When the wind is blowing, your home is powered (in part) by WFDG10;

when it’s not, your home is seamlessly powered by your utility as usual.. If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

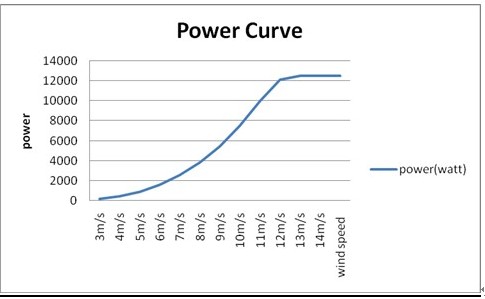

10KW Wind Turbine
Rated Power	10 KW at wind speed 10m/s
Max Power	12 KW
Kilowatt Hours Per Month	1,166 kWh/month /average 5.8m/s
Voltage Options	120V, 240V & Grid Tie
Start Wind Speed	3 m/s
Rated Wind Speed	11 m/s
MAX WIND SPEED	45 m/s
Cut-Out Wind Speed	13 m/second
Over speed Protection	Side furling with gravity return
Temperature Range	-30°C~60°C
Rotor Diameter	6.40 m
Swept area	32.15 m2
Rotor speed	280 rpm
Blade number	3
Blade material	Reinforced fibreglass
Rotor thrust(at 20 meters/second)	6,600 Newton
Generator	3 phase Neodymium permanent magnet
Noise	Max 5-8 dBA above background
Turbine Weight(kg)	280

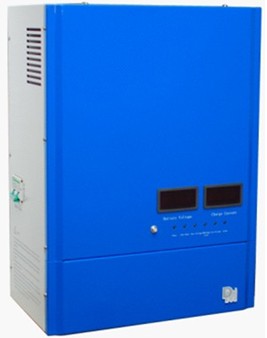

10 KW grid tie controller and Dump load
Model	HCCG-10KW
Input date
Rated Wind Turbine Power	10 KW
Rated Solar Panel Power	3,000W
Voltage Range	0~550V
Output date
Max dump load power	10 KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥550V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	40A
Solar panel fuse (A)	15A
DC output fuse (A)	40A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Controller dimension Dump Load dimension	570550330mm 770550460mm
Controller Weight Dump Load Weight	27 kg 36 kg

10 KW grid tie inverter
Model	BNWG-10KS
Input data
Recommended generator power	10 KW
Rated operating voltage	200 V
Max. DC voltage	780 V
DC voltage	200 V
Max. input current	150 A
Input DC voltage range(VDC)	200-780 V
Thermally monitored varistors	Yes
Output date
Max. AC power	10 KW
Rated AC power	12 KW
Harmonic distortion of grid current	<3%
Rated AC voltage	380 VAC
Rated AC frequency	50 Hz/60 Hz
Short –circuit proof	Yes
Others
Max. Efficiency	94 %
Power Factor(PF)	≥0.99
Overload ability	150%, 10 seconds
Protection degree	IP65
Insulation intensity(input and output)	1500VAC, 1 minute
Noise(1meter)	≤50dB
Operation temperature	-30°C~60°C
Size(L×W×H mm)	550 x 480 x 980 mm
Weight	160 kg
Protection	Over voltage, Low voltage, Over load, over heat, Short circuit. Reverse polarity.

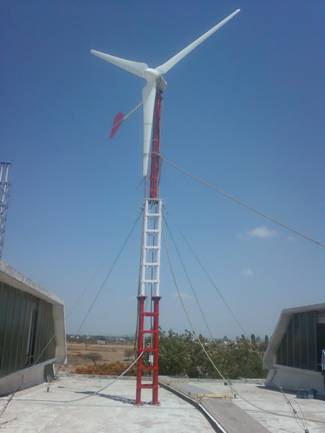

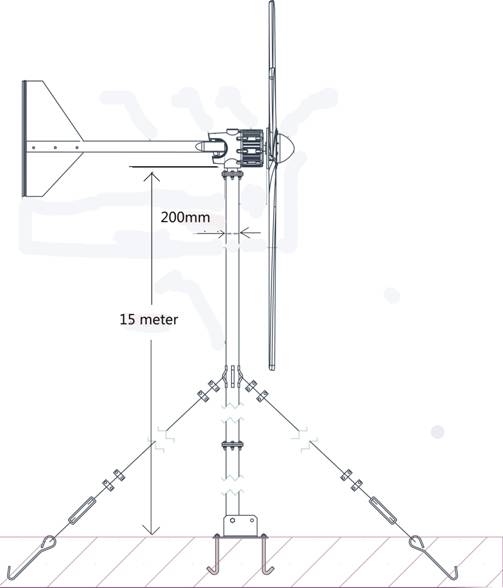

15 meter wire guyed tower(optional)

Electrical Installation

Errors expected and possible alternations without prior notice.

Warranty: 2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
