5KW Grid-Tie Wind/Solar Hybrid System


HY-GRID-5KW



The wind generator and solar modules is a revolutionary way of cost saving in renewable energy generation.

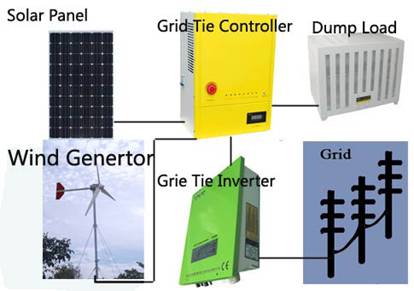

The wind generator and solar modules is connected to a grid-tie inverter which is a device that enables wind power users to complement the energy they buy from their electricity supplier with solar power. The inverter converts DC to AC power and sends the extra energy produced back to the utility grid via the electric meter.

At night and no wind time all the electricity is supplied by the mains. During the daylight or windy hours, the system generates some power, offsetting the consumption of electricity from the utility and cutting electric bills. The balance of the kWh required by your loads is automatically drawn from the input lines. If the wind  generator or solar modules is producing more electricity than you are using, the system will feed the surplus of the energy back to the utility. It may even spin your electric meter backwards, further reducing your monthly bill.

This system includes:

  • 3KW/280V wind turbine generator with 12 m guyed tower
  • 10 x 200W solar modules with 20 years warranty
  • 5KW Grid Tie Wind/Solar Hybrid controller
  • 5 KW Grid Tie Inverter, single phase

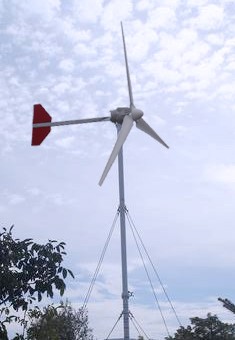

3KW Wind Generator

Model
WFD3KW
Rated  Power
3 KW at wind speed 10m/s
Max  Power
4.5 KW
Voltage Options
96V, 120V,240V & Grid Tie
Start Wind Speed
3m/s
Rated Wind  Speed
10 m/s
Cut-Out Wind Speed
13m/s
MAX WIND SPEED
40m/s
Kilowatt Hours Per Month
396 kWh/month /average 5.8 m/s
Over speed Protection
Auto Furl and Dump Load
Temperature Range
-40 to +60 Deg. C
Rotor Diameter
4 m
Swept Area
13.84m2
Rotor speed at 3KW power
250 rpm
Blade number
3
Blade material
Reinforced fibreglass
Rotor thrust(at 20 meters/second)
2,350 Newton
Generator
3 phase Neodymium permanent magnet
Noise
Max 4-7 dBA above background
Tower Top Weight
138 kg

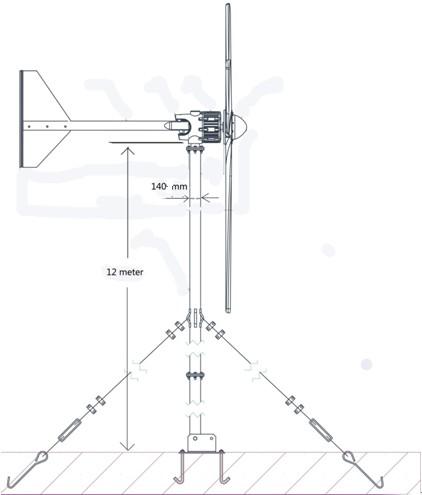

12 meter wire guyed tower



200W Polycrystalline Solar Panel

ASNM200P-72 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type
200P-72
Module Efficiency              ŋm(%)
15,68
Cell Efficiency                ŋc(%)
18,15
Power Peak                    Pm(W)
200
Maximum Power Voltage         Vm(V)
37,52
Maximum Power Current         Im(A)
5,33
Open Circuit Voltage            Voc(V)
45,21
Short circuit current              Isc(A)
5,96
Maximum System Voltage         (VDC)
1000
Power output tolerances           ( % )
±3
Max-Series Fuse                  (A)
20
Operating/Storage Temp.          (°C)
-40 ~85
Dielectric Insulation Voltage        (VDC)
3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature
45±2°C
Pm Temperature Coefficient   (%/°C)
-0.44
Voc Temperature Coefficient  (%/°C)
-0.36
Isc Temperature Coefficient   (%/°C)
0.033
MECHANICAL  FEATURES
Cell Size                       (mm)
125 x 125
Number of cells
6 x 12– polycrystalline silicon cell
Module Dimensions              (mm)
1580 x 808 x 35
Module Weight                  (kg)
14
Front Glass
3.2mm tempered glass
Back Cover
TPT(Tedlar-PET-Tedlar)
Frame
Anodized aluminum alloy
Junction box
IP65-6 by-pass diodes serviceable
Connectors
IP67 type MC4
Output Cables                  (mm)
900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)
520
1 Pallet
24 modules
Container Loading                (ft)
672modules
Capacity 40’HQ
(28 pallets)



5KW Wind/Solar Hybrid Grid Tie Controller with Dump Load

Model
HCCG-5KW
Input date
Rated Wind Turbine Power
5 KW
Rated Solar Panel Power
2,000W
Voltage Range
0~550V
Output date

Max dump load power
4 KW
Brake delay time
10-20 minutes
PWM unloading voltage (DCV)
≥450V
Braking voltage
Set as the output voltage of the wind turbine
PWM unloading fuse (A)
20A
Solar panel fuse (A)
10A
DC output fuse (A)
20A
Others

Connecting wire of the PWM dump load provided
>6 mm2
Protection level
IP20
Controller dimension
Dump Load dimension
500*460*330mm
660*510*450mm
Controller Weight
Dump Load Weight
20 kg
28.5 kg



5KW Grid tie inverter

MODEL
GI5000W
Max. DC input power
5500W
Max. DC input voltage
550V
MPPT range
100~500V
Max. DC input current
25A
Rated output power
5000W
Max. output current
22A
Nominal AC Voltage
220V – 240V/180V – 260V
AC grid frequency
50HZ / 60HZ / ±4.5HZ
Power factor
1
THD
<3%
AC connection
Single phase
Max. efficiency / Euro-ETA
>96.0% / >95.0%
Protection
DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault.
Idle consumption
<0.5W
Operating temperature
-30°C~60°C
Enclosure type
IP65
Interfaces:
RS485/USB
Shipping Weight/Dimensions
35kg/610*420*160mm



Errors expected and possible alternations without prior notice.

Warranty:

Solar Panel :  20 years.

Wind Generator, tower, controller and inverter :  2 years.

Note:

  1. Power Curves and Annual Energy: The performance of wind turbine systems is impossible to predict with any certainty due to the variability in the wind from location to location and from year to year. These estimates are based upon the best available information but are given as guidance only and should not be considered as a guarantee.  For a greater level of certainty we would recommend on-site wind speed monitoring for at least a year.
  2. Variation: All values are nominal as there will be some variation in manufactured product.  Specifications subject to change.
