10KW Turgo Turbine Generator

Twin Nozzle T30-10SCTF4-6

T30-10SCTF4/6 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed.  That is, it is fed directly to the appliances.   No need of battery and inverter, T30-10SCTF4/6 offers a complete water to wire system with integral turgo turbine, generator and valve flow control.  Designed to deliver ready-to-use 230V AC single phase power, it employs a brushless, special rare-earth permanent magnet  alternator and therefore has a higher efficiency than ordinary alternator.  Output voltage and frequency are controlled by the electronic load controller(with ballast).      As little as 30 to 50 liter per second (l/s) falling 38 meter through a pipe   can supply enough power to comfortably run a household.  This machine is compact, easy to install and  requires little maintenance except lubricating the bearing every few months.
The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.
These turbines need very little water flow to run efficiently and produce significant power out.







Item
Parameters
Model
T30-10SCTF4/6
Water Head Range
25 – 30 meter( 82 – 98 feet)
Water Pressure
43 PSI
Water Flow Range
50 – 60 liter(13 – 16 gal)/second
Rated Power Output
10KW
Intended voltage
Single phase, AC230V~
Rotary Speed
1500 rpm
Turbine runner type
Turgo
Runner diameter
250 mm
Number of buckets
14
Number of nozzles
2
Jet diameter
50 mm
Generator
Single phase permanent magnet alternator
Power factor
1.0
Insulation level
B/B
Protection level
IP44
Temperature
-20°C~50°C
Humidity
≤90%
Safety protection
Short circuit, over load, Islanding, Grounding fault
Packing material
Fiberboard
Packing size
105 x 82 x 82 cm
Gross weight
318 kg





OUTPUT IN WATTS against various head and flow
Water head
(meter)
Water flow(liter/second)
52 liter/sec
54 liter/sec
56 liter/sec
58 liter/sec
60 liter/sec
20
3120W
4320W
5600W
6380W
6960W
22
3432W
4752W
6160W
7018W
7656W
24
3744W
5184W
6720W
7656W
8352W
26
4056W
5616W
7280W
8294W
9048W
28
4368W
6048W
7840W
8932W
9744W
30
4680W
6480W
8400W
9570W
10000W

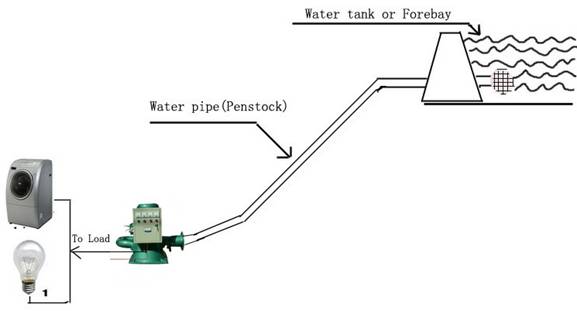

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC three-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 380V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
Maintenance costs are very low.
