300W Turgo Turbine Generator

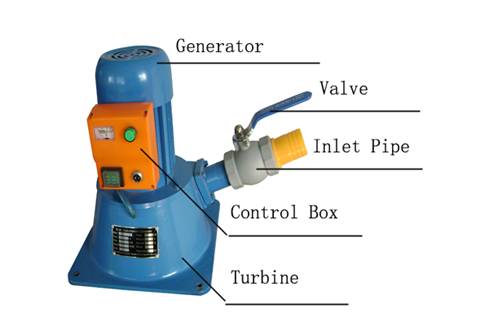

T14-0.3DCT4 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed.  That is, it is fed directly to the appliances.   No need of battery and inverter, T14-0.3DCT4 offers a complete water to wire system with integral turgo turbine, generator and valve flow control.  Designed to deliver ready-to-use 115V/230V AC power, it employs a brushless, special rare-earth permanent magnet  alternator and therefore has a higher efficiency than ordinary alternator.  Output voltage and frequency are controlled by the electronic load controller(with ballast).   The power is monitored and that which is not used by the appliances is directed to the ballast。As little as 4 or 5 liter(19 gallon) per second falling 14 meter through a pipe, it can supply enough power to comfortably run a small household.  This machine is compact, easy to install and  requires little maintenance except lubricating the bearing every few months.

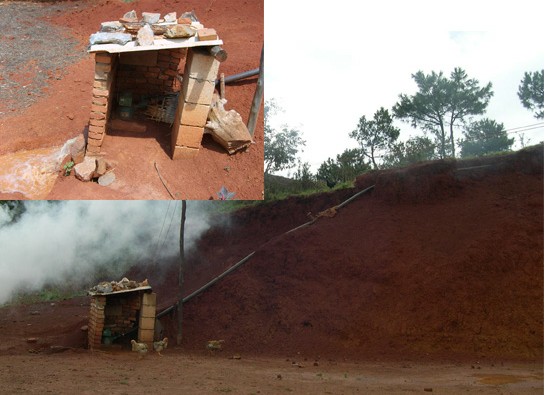

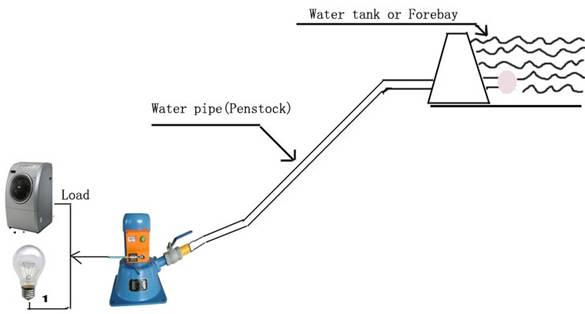

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.



Item
Parameters
Model
T14-0.3DCT4
Water Head Range
12 – 14 meter(39 – 46 feet)
Water Pressure
20 PSI
Water Flow Range
3 – 5 liter(1 – 1.3 gallon)/second
Rated Power Output
300W
Intended voltage
115/230V~
Rotary Speed
1500 rpm
Turbine runner type
Turgo
Runner diameter
142mm
Number of buckets
12
Number of nozzles
1
Jet diameter
50 mm
Generator
Single phase permanent magnet alternator
Power factor
1.0
Insulation level
B/B
Protection level
IP44
Temperature
-20°C~50°C
Humidity
≤90%
Safety protection
Short circuit, over load, Islanding, Grounding fault
Packing material
Fiberboard
Packing size
35 x 30 x 37 cm
Gross weight
18 kg





Turbine Generator





OUTPUT IN WATTS against various head and flow
Water head
(meter)
Water flow(liter/second)
2 liter/sec
3 liter/sec
4 liter/sec
5 liter/sec
9
54W
135W
198W
247W
10
60W
150W
220W
275W
11
66W
165W
242W
300W
12
72W
180W
264W
300W
13
78W
195W
286W
300W
14
84W
210W
300W
300W

If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
