Boat Wind Generator

FDL0.9-350

Magnetic levitation alternator.              Spinning in the lightest of breezes!

We introduce the newest wind generator:
The electrical power produced by the FDL0.9-350 charges 12V or 24 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.

Product Description:

• Innovative 6-blade design to maximize energy output at low wind conditions under 25 mph.
• Very small rotor diameter, more safe less vibration.
• Strong Neodymium magnet PMA, the unique winding and multi pole design reduces the start-up torque of the alternator that assures generator to generate electricity at low wind speed.

System Specifications

Model	FDL0.9-350
Configuration	6 blade upwind

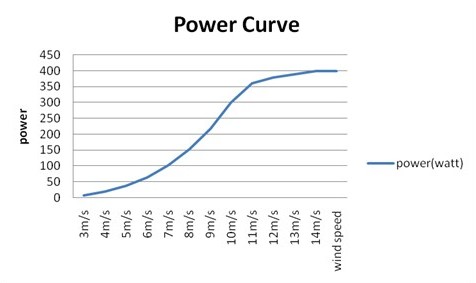

Rated power	24V 300W

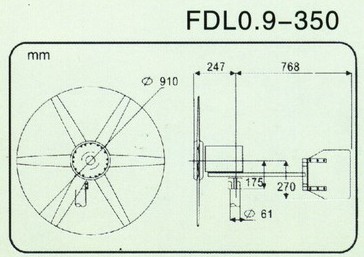

Rotor diameter	0.9 m
Cut in wind speed	1.5m/sec
Start up wind speed	1.5m/sec
Rated wind speed	11 m/sec
Cut out wind speed	13m/sec
Alternator type	Magnetic levitation，Neodymium permanent magnet
Turbine Weight	8 kg
Total packing weight	15 kg

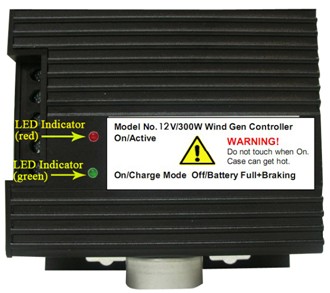

300W Battery Charge Controller ( option )

Specifications

Model	YC03A-12	YC03A-24
Rated output power	300W	300W
Input voltage range	16~14 V	12~28 V
Rated battery voltage	12 V	24 V
Max input wind power	300W	300W
Over charge protection	15 V±0.5V	30 V±0.5V
Recommended battery	1 pc of 12V /150AH	2 pc of 12V /150AH
Wind Turbine Maximum Input Current	30 A	15 A
Protection Function	Over charge, battery reverse-connection , load short-circuit, wind turbine automatic brake.
Size	230 x 120 x 70 mm	230 x 120 x 70 mm
Weight	1 kg	1 kg

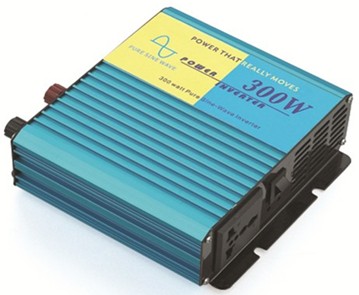

300 Watts Power Inverter ( optional )

Model	PI-300-12	PI-300-24	PI-300-48
Output power	300 watts continuous power/600 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	＞85%
No-load draw	＜0.5A
Output wave form?	Pure Sine Wave
Input voltage range	10~15VDC	21~30VDC	42~60VDC
Over voltage shutdown	15.5V	30.5V	61.2V
Under voltage shutdown	9.5V	19.5V	42V
Over load shutdown	450W
Low voltage alarm	Audible
Protection	Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown
AC receptacle	1 x 3 prong receptacles
Warranty	1 year
Weight	1 kg
Dimension(W x H x D)	160 x 150 x 50 mm

Wiring

Packing

4)Inverter packed in carton: 22 x 16 x10 cm 2 kg

Warranty : 2 years
