Wind Generator, Off Grid

WFD200W

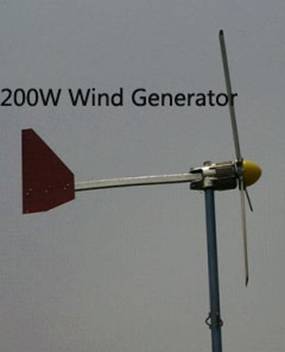

Introducing WFD200W -  A 200W wind generator with beautiful shape, safe, portable and reliable.  It is a small wind turbine with 1.65 m diameter rotor and can be used on land or on larger vessels.   WFD200W is used to charge 12V or 24V battery systems.  It includes a 200W battery charge controller regulator which will auto brake the turbine and stop charging when the batteries are charged full.

WFD200W is low noise.  The reliable Auto Furl function will slow down the turbine down in high winds, reducing noise and mounting system loads.

Features : Reliable passive self furling when in storm. Autobrake slows down the blades spin when the batteries are charged Marine quality powder coated aluminum body,  water tight housing Smooth running of the rotor because of good balance of the blades. Low noise. Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature

Two year warranty; operational life expected to be in excess of 15 years

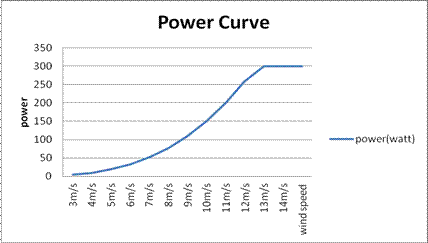

Model WFD200W Power 200W at rated wind speed   MAX POWER 300W Kilowatt Hours Per Month  25 kWh/month /average 5.8 m/s OUTPUT  DC VOLTAGE 12V or 24V START WIND SPEED 2.5 m/s RATED WIND SPEED 10 m/s SURVIVAL WIND SPEED 40 m/s Cut-Out Wind Speed  12 m /s Over speed Protection Auto Furl Kilowatt hours per month 38 KWh/mon at 5.4 m/s Temperature Range -30°C~60°C ROTOR Diameter 1.65 m Swept Area 2.14 m2 Rotor speed 600rpm Blade material Aluminum Alloy Generator 3 phase permanent magnet alternator Noise Max 1-4 dBA above background Tower Top Weight 21 kg

Model	BC200W-12	BC200W-24
Rated output power	200W	200W
Input voltage range	16~14 V	12~28 V
Rated battery voltage	12 V	24 V
Max input wind power	300W	300W
Over charge protection	15 V±0.5V	30 V±0.5V
Recommended battery	1 pc of 12V /150AH	2 pc of 12V /150AH
Wind Turbine Maximum Input Current	25 A	12 A
Protection Function	Over charge,  battery reverse-connection ,   load short-circuit, wind turbine automatic brake.
Size	230 x 120 x 70 mm	230 x 120 x 70 mm
Weight	1  kg	1  kg



300W Off Grid Inverter( optional )
Model	PI-300-12	PI-300-24	PI-300-48
Output power	300 watts  continuous power/600 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	＞85%
No-load draw	＜0.5A
Output wave form	Pure Sine Wave
Input voltage range	10~15VDC	21~30VDC	42~60VDC
Over voltage shutdown	15.5V	30.5V	61.2V
Under voltage shutdown	9.5V	19.5V	42V
Over load shutdown	120%
Low voltage alarm	Audible
Protection	Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown
AC receptacle	1 x 3 prong receptacles
Shipping Weight/Dimension	1kg/150 x 130 x 52 mm

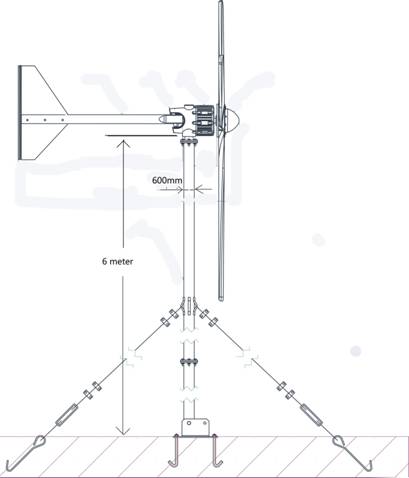

6 meter height wire guyed tower (optional)



Battery bank This off grid system should use 1 piece of 12V/200Ah batteries.  The user should buy from local market.   Packing Wind Generator in cartons  :  15 kg /54x40x23 cm; 9 kg /122x12x12 cm 6 m wire guyed tower in bag :  25 kg/ 172 x 26x 22 cm Controller packed in carton :   2 kg/8×16×10 cm inverter packed in carton   :  1kg/160 x 55 x 96 mm

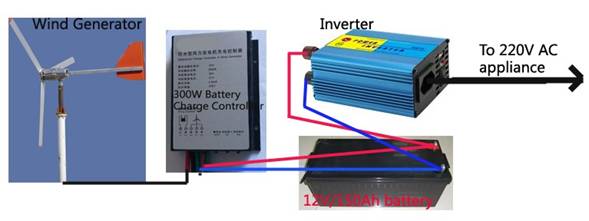

Wiring



Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.



Note:
