750W Off Grid Wind Generator


WFD750W

Introducing WFD750W – A 5 blades wind generator with beautiful shape, safe, portable and reliable.  It is a small wind turbine with 2.10 m diameter rotor and can be used on land or on larger vessels.  It includes a 750W battery charge controller which will brake the turbine and stop charging automatically when the batteries are charged full.  The WFD750W is used to charge 36V or 48V batteries.   Equipped with suitable grid tie inverter, it can also connect to grid.

It is especially designed to meet the demand from individual householders for a renewable energy source.



Advantages of 5-blade wind turbines over 3-blade wind turbines

1) 5-blade wind turbines will greatly improve annual energy production in low wind conditions. For areas with average wind speeds of 11 MPH (5m/s). If you compare annual energy output to conventional 3-blade wind turbine, there is an increase of annual energy output of more than 60%.

2) 5-blade wind turbines will dramatically improve the reliability and safety of the wind turbine. The blade rotation speed of a 5-blade turbine is 60% of the rotational speed for a 3-blade wind turbine. 5-blade wind turbines will greatly reduce the chance of overspeed control malfunction. This will ensure operational reliability from a long term perspective.

3) The lower blade rotation speed of a 5-blade wind turbine will lower wind turbine noise and make 5-blade wind turbines more community friendly than 3-blade wind turbines.



Features :

  1. Reliable passive self furling
  2. Auto rake  slows down the blades spin when the batteries are charged
  3. Iron Boron Neodymium magnet alternator.
  4. Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
  5. Strong aluminum alloy blades, silent when working.
  6. Two year warranty; operational life expected to be in excess of 15 years.
Model
WFD750W
Rated  Power
750 W at wind speed 10m/s
Max  Power
1000 W
Kilowatt Hours Per Month
 116 kWh/month /average 5.4 m/s
Voltage Options
 36V,48V& Grid Tie
Start Wind Speed
3 m/s
Rated Wind  Speed
10 m/s
MAX WIND SPEED
45m/s
Cut-Out Wind Speed
12 m/second
Over speed Protection
Auto furl and dump load
Turbine controller
wind & Solar Hybrid Controller included
Temperature Range
-30°C~60°C
Rotor Diameter
2.10 m
Swept Area
3.46 m2
Rotor speed
500 rpm
Blade number
5
Blade material
Aluminum alloy
Rotor thrust(at 20 meters/second)
200 Newton
Generator
3 phase Neodymium permanent magnet alternator
Noise
Max 1-3 dBA above background
Tower Top Weight(kg)
34

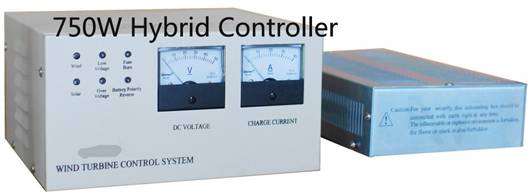

750W battery charge controller and dump load(optional)

Model
HD-750W-24
HD-750W-48
Rated output power
750W
Input voltage range
24~28V
48~58 V
Rated battery voltage
24 V
48V
Max input wind power
1000W
Max input solar power
200 W  (higher rating upon request)
Over charge protection
29V±0.5V
58V±0.5V
Recommended battery
24VDC/200AH
48VDC/200AH
Rated Wind Turbine
Maximum Input Current
35 A
15A
Protection Function
Over charge,  battery reverse-connection  Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake.
Self Consumption
< 10 mA
Size
470 x 350 x 320 mm
Weight
9 kg

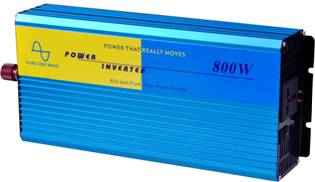

800 Watts Power Inverter (optional)

Model
PI-800-24
PI-800-48
Output power
800 watts continuous power/1600 watts peak power
Output voltage
100/110/120/220/230/240VAC
Optimum efficiency
>85%
No-load draw
<0.6A
Output wave form
Pure Sine Wave
Input voltage range
21~30VDC
42~60VDC
Over voltage shutdown
30.5V
61.2V
Under voltage shutdown
19.5V
42V
Over load shutdown
960W
Low voltage alarm
Audible
Protection
Over voltage, Under voltage, Over load, Overheat, Short circuit
Shipping Weight/ Dimension
3.8 kg/260 x 182x 100 mm

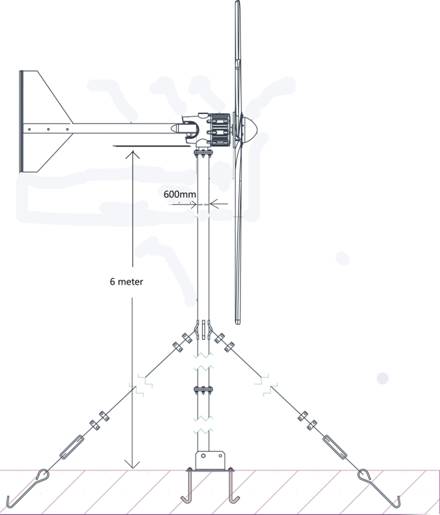

6 meter wire guyed tower(optional)

Battery bank

This off grid system should use 2 pieces of 12V/200Ah batteries.  The user should buy from local market.



Wiring

Packing

  1. Wind Generator,       61 x 49 x 25 cm   22 kg; 122x 18 x 15 cm   11 kg
  2. 6 m wire guyed tower,   172 x 26 x 22 cm  42 kg
  3. Controller in carton   :  50 x 40 x 35 cm      11 kg
  4. Inverter in carton    :  30 x 22 x 12 cm       5 kg





Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.



Note:

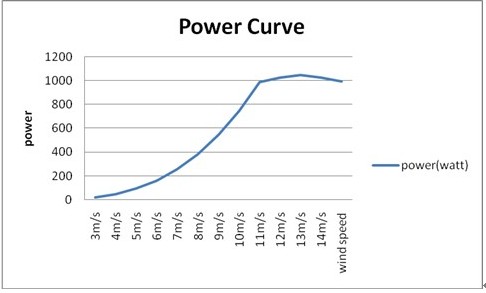

  1. Power Curves and Annual Energy: The performance of wind turbine systems is impossible to predict with any certainty due to the variability in the wind from location to location and from year to year. These estimates are based upon the best available information but are given as guidance only and should not be considered as a guarantee.  For a greater level of certainty we would recommend on-site wind speed monitoring for at least a year.
  2. Variation: All values are nominal as there will be some variation in manufactured product.  Specifications subject to change.
