Wind Generator
WKD20KW

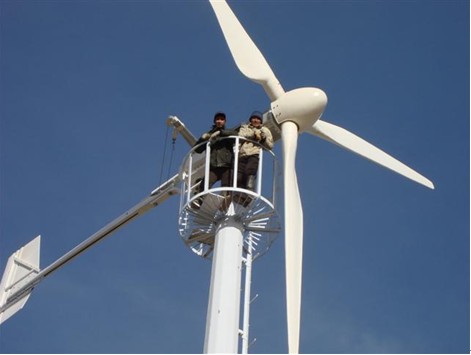

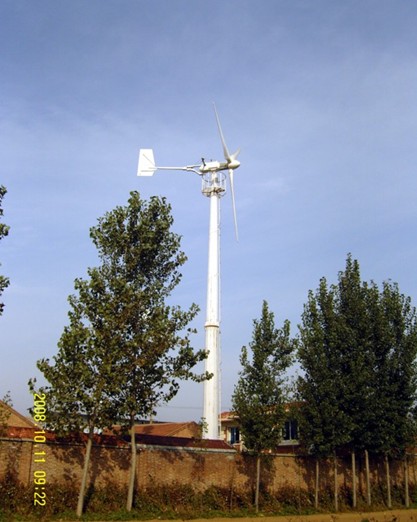

Introducing WFD20KW – A wind generator with beautiful shape, safe, portable and reliable. It is especially designed to meet the demand from individual householders for a renewable energy source
The WFD20KW is used to charge 240V or 360V batteries. Equipped with suitable DC to AC inverter, it is capable of supplying power for: Refrigeration, Electric fan, Lights, Air conditioner , Communication equipment.
When used in conjunction with a suitable Grid Tie inverter WFD20KW can also be connected to the power grid
Features :
- Reliable passive self furling
- Autobrake slows down the blades spin when the batteries are charged
- Marine quality powder coated aluminium body, water tight housing
- Iron Boron Neodymium magnet alternator.
- Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
- Two years warranty; operational life expected to be in excess of 15 years
Specification:
Rated Power |
20 KW |
Max Power |
25 KW |
Voltage Options |
240V, 360V & Grid Tie |
Start Wind Speed |
4 m/s |
Rated Wind Speed |
12 m/s |
MAX WIND SPEED |
45 m/s |
Cut-Out Wind Speed |
13 m/second |
Blade Pitch Control |
None, Fixed Pitch |
Over speed Protection |
Side furling with gravity return & Manual braking |
Temperature Range |
-40 to +60 Deg. C |
Rotor Diameter |
10 m |
Rotor speed |
180 rpm |
Blade number |
3 |
Blade material |
Reinforced fibreglass |
Generator |
3 phase permanent magnet alternator |
Turbine Weight(kg) |
750 |

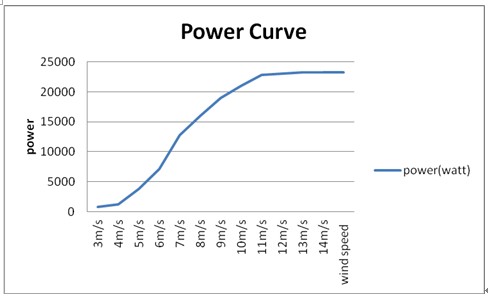

Apparent Sound Power Level for the Acoustic Reference Wind Speed
-
Turbine Noise Level at wind speed 7.3~8.7 m/s:14.9~ 16.0 dB
Test was made at 30 meters from the turbine.
Electrical Installation
In most cases the loads will be AC(alternating current) and they will be supplied through a DC-to-AC inverter.

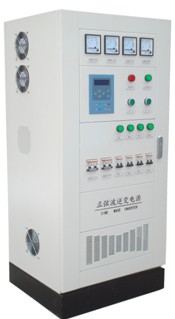

| 20KW Off Grid Controller(optional) |
Dump load |
|
|
Specification
Model |
FKJB-20KW-360 |
Rated output power |
20 KW |
Input voltage range |
360~435 V |
Rated battery voltage |
360V |
Max input wind power |
22 KW |
Max input solar power |
6 KW |
Over charge protection |
435V±0.5V |
Recommended battery |
360VDC/200AH |
Maximum Wind Turbine
Input Current |
60A |
Protection Function |
Over charge, battery reverse-connection Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake. |
Self Consumption |
< 20 mA |
Size |
Controller : 560 x 460 x 950 53KG
Dump load : 810 x 580 x 980 mm 31kg |
20KW 3 Phase Off Grid Inverter(optional)
Model |
BNSA-20KS |
DC input |
|
Input rating voltage(DC) |
200 |
Input rating current(A) |
100A |
Input DC voltage range(VDC) |
200~780V |
AC output |
|
Output rating capacity(KVA) |
20 |
Output rating power(KW) |
24 |
Rated Output voltage and frequency |
220VAC, ±50HZ |
Output rating current(A) |
136.4 |
Output voltage (V) |
220±3% |
Output frequency (HZ) |
50±0.05 |
Harmonic Distortion(Linerity load) |
≤5% |
Dynamic reaction(Load 0-100%) |
5% |
Power Factor(PF) |
0.8 |
Overload ability |
150%, 10s |
Efficiency(80% resistance load) |
94% |
Insulation intensity(input and output) |
1500VAC, 1 minute |
Noise(1meter) |
≤50dB |
Operation temperature |
-25℃-+55℃ |
Size(L×W×H mm) |
550*480*980mm
800*600*2260 mm |
Weight |
360 |
Protection |
Over voltage , Under voltage, Over load , over heat, Short circuitn. Reverse polarity. |
Packing
-
Wind Generator, Case 1:490 x 78 x 50 cm 390 kg
Case 2:76 x 76 x 90 cm 120 kg
Case 3:181 x 114 x 70 cm 810 kg
Case 4: 206 x 126 x 26 cm 216 kg
Case 5: 330 x 54 x 14 cm 75 kg
- 18 m free standing tower, bag: 130 x 130 x 480 cm 1,600 kg
103 x 103 x 480 cm 800 kg
130 x 130 x 8 cm 42 kg
210 x 17 x 20 cm 84 kg
260 x 17 x 20 cm 102 kg
3）Controller, Plywood case: Case 1: 60 x 500 x 110cm 65 kg
Case 2: 90 x 65 x 110 cm 44 kg
4) Inverter, Plywood case: 600 x 550 x 110cm 280 kg
