2KW Grid-Tie Wind Generator

WFDG2

Reduce or Eliminate Your Electricity Bill

Introducing WFDG2 – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.

WFDG2 was designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs.  It includes wind generator, controller with dump load and grid tie inverter.   With no batteries, WFDG2 connects directly to your
home.  When the wind is blowing, your home is powered (in part or whole) by WFDG2; when it’s not, your home is seamlessly powered by your utility as usual..  If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid











2 KW wind generator
Model	WFDG2
Rated  Power	2 KW
Max  Power	2.5 KW
Voltage Options	96V, 120V,240V & Grid Tie

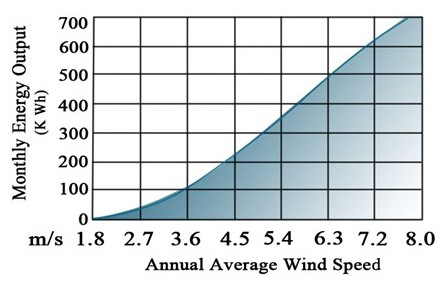

Kilowatt Hours Per Month	355 kWh/month /average 5.5 m/s
Start Wind Speed	3m/s
Rated Wind  Speed	9 m/s
Cut-Out Wind Speed	13m/s
MAX WIND SPEED	40m/s
Cut-Out Wind Speed	None
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Auto Furl and Dump Load
Gearbox	None, Direct Drive
Temperature Range	-40 to +60 Deg. C

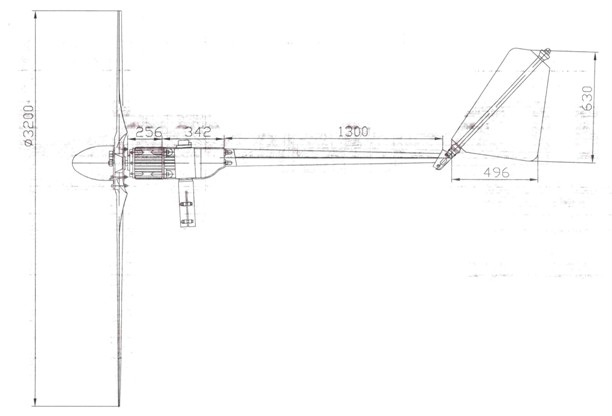

Rotor Diameter	3.20 m
Rotor speed	400 rpm
Blade number	3
Blade material	Reinforced fibreglass
Generator	3 phase  Neodymium permanent magnet
Inverter power output	AC 110/220V, 50HZ/60HZ
Turbine Weight(kg)	120





2 KW Grid tie controller
Model	HCCG-2KW
Input date
Rated Wind Turbine Power	2KW
Voltage Range	0~450V
Output date
Max dump load power	2KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥450V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	15A
DC output fuse (A)	15A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Shipping Weight/Dimension	15kg/ 50 x 46 x 33 cm



2KW grid tie inverter
MODEL	WGI2KW
Max. DC input power	2000W
Max. DC input voltage	500V
MPPT range	100 - 450V
Max. DC input current	9A
Rated output power	2000W
Max. output current	9A
Nominal AC Voltage	220V – 240V/180V – 260V
AC grid frequency	50HZ / 60HZ / ±4.5HZ
Power factor	1
THD	<3%
AC connection	Single phase
Max. efficiency / Euro-ETA	>96.0% / >95.0%
Protection	DC reverse polarity, AC short-circuit , Ground fault, Output Transient Voltage, Grid fault.
Idle consumption	<0.5W
Operating temperature	-25 ~ +55
Ambient humidity	0～95%
Enclosure type	IP20
Topology	HF-transformer
display	LED&LCD
Interfaces:	RS485
Electro.  compatibility	IEC62103/EN50178/EN61000-6-1/2/3
Shipping Weight/Dimension	16 kg/ 342 x 440 x 152mm

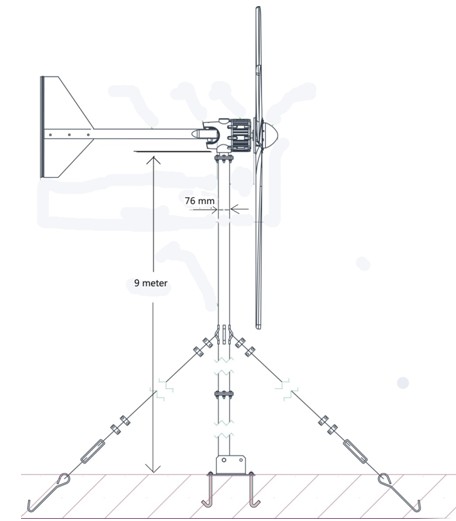

9 meter wire guyed tower



Errors expected and possible alternations without prior notice.

Warranty:  2 years

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
