20KW Turgo Turbine Generator

Twin Nozzle T30-20SCTF4-6

T30-20SCTF4/6 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed.  That is, it is fed directly to the appliances.   No need of battery and inverter, T30-20SCTF4/6 offers a complete water to wire system with integral turgo turbine, generator and valve flow control.  Designed to deliver ready-to-use 380V AC /3 phase power, it employs a brushless, special rare-earth permanent magnet  alternator and therefore has a higher efficiency than ordinary alternator.  Output voltage and frequency are controlled by the electronic load controller(with ballast).      As little as 60 to 80 liter per second (l/s) falling 45 meter through a pipe,  it can supply enough power to comfortably run a household.  This machine is compact, easy to install and  requires little maintenance except lubricating the bearing every few months.



The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.

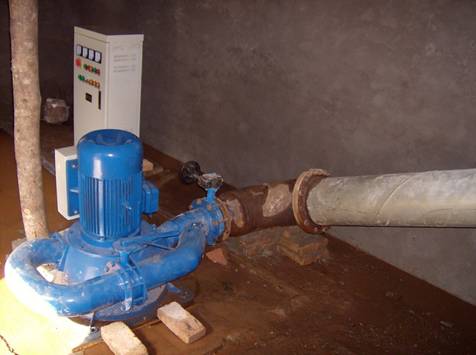

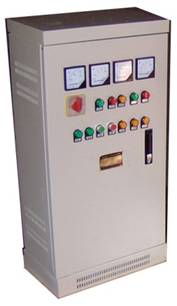

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC three-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 380V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.



Item
Parameters
Model
T30-20SCTF4/6
Water Head Range
35 – 45 meter(115 – 148 feet)
Water Pressure
64 PSI
Water Flow Range
60 – 80 liter(16 – 21 gal)/second
Rated Power Output
20KW
Intended voltage
Three phase, AC380V~
Rotary Speed
1500 rpm
Turbine runner type
Turgo
Runner diameter
340 mm
Number of buckets
14
Number of nozzles
1
Jet diameter
250-300 mm
Generator
Single phase permanent magnet alternator
Power factor
1.0
Insulation level
B/B
Protection level
IP44
Temperature
-20°C~50°C
Humidity
≤90%
Safety protection
Short circuit, over load, Islanding, Grounding fault
Packing material
Fiberboard
Packing size
120x90x95cm, 80x60x62cm, 60x55x50cm,
Gross weight
490 kg, 60kg, 60kg



OUTPUT IN WATTS against various head and flow

Water head
(meter)

Water flow(liter/second)

72 liter/sec
74 liter/sec
76 liter/sec
78 liter/sec
80 liter/sec
35
7560W
10360W
13300W
139231W
15680W
37
7992W
10952W
14060W
14719W
16576W
39
8424W
11544W
14820W
15514W
17472W
41
8856W
12136W
15580W
16310W
18368W
43
9288W
12728W
16340W
17105W
19264W
45
9720W
13320W
17100W
17901W
20160W

If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
