Grid Tie Solar Power Kit

The Solar-Power-Generator is a revolutionary way of cost saving in renewable energy generation.

The solar panels produce what's called DC current. A device called an inverter is required to change the DC power generated by your solar system into AC power that most appliances can use.  An inverter is an important piece in your overall solar energy plan.

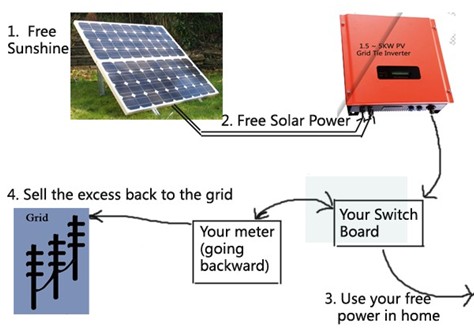

The solar panels are connected to a grid-tie inverter which is a device that enables solar power users to complement the energy they buy from their electricity supplier with solar power. The inverter converts DC to AC power and sends the extra energy produced back to the utility grid via the electric meter.

At night or during inclement weather all the electricity is supplied by the mains. During the daylight hours, the system generates some power, offsetting the consumption of electricity from the utility and cutting electric bills. The balance of the kWh required by your loads is automatically drawn from the input lines. If the PV panels are producing more electricity than you are using, the system will feed the surplus of the energy back to the utility. It may even spin your electric meter backwards, further reducing your monthly bill.

The Solar Kit is easy to set up and plugs straight in to any mains socket just like your kettle. No need for an electrician.

Installation is simple: secure the solar panels to the aluminum stand and connect the ready made cables. Position on your patio, garden or balcony, anywhere the sun shines. No tools or electrical skills are required, not even a screwdriver.



1000 Watt Grid-Tie Solar Power Kit, SG-1KW

This SG-1KW kit Includes:

  • 4 x 250 Watt Framed Solar Panel with 25 year limited warranty.
    (Support rack for solar panel can be supplied upon request)
  • 1000 Watt Grid Tie DC to AC Inverter.
1000 Watt Grid-Tie Solar Power Kit, SG-1 KW

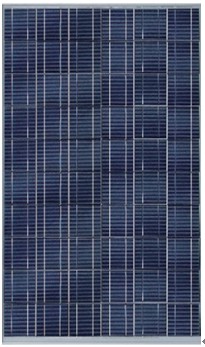

250W Solar Panel

No. of Cells
6 x 10 – polycrytalline silicon cell
Maximum Power(Pm)
250W±3%
Maximum Power Voltage (Vpm)
30,71V
Maximum Power Current (Ipm)
8,14A
Open Circuit Voltage(Voc)
44,23 V
Short Circuit Current(Isc)
8,81A
Module Efficiency
15.37%
Cell Efficiency
17,54%
Dimensions
1640 x 992 x 40 mm
Weight
19 kg
Operating temperature
-40°C~75°C
Maximum System Voltage
1000VDC

Grid Tie Inverter

Max. DC input power
1000W
Max. DC input voltage
60V
MPPT range
22~60V
Max. DC input current
50A
Rated output power
1000W
Max. output curren
50A
Nominal AC Voltage
220V – 240V/180V – 260V
AC grid frequency
50HZ / 60HZ / ±4.5HZ
THD
<3%
AC connection
Single phase
Max. efficiency
>90.0%
Protection
DC reverse polarity, AC short-circuit , Ground fault, over heat, Grid fault.
Low voltage, over voltage.
Idle consumption
<0.5W
Operating temperature
-20°C~50°C
Dimensions/mm
405 x 275 x 123 mm
Weight
5.5  kg
Warranty
1 year

.
