6KW Turgo Turbine Generator

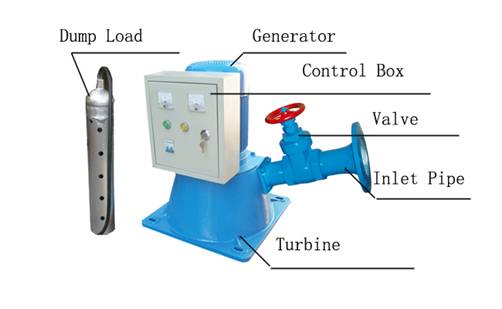

T28-6.0DCT4 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed.  That is, it is fed directly to the appliances.   No need of battery and inverter, T28-6.0DCT4/6 offers a complete water to wire system with integral turgo turbine, generator and valve flow control.  Designed to deliver ready-to-use 115V/230V VAC power, it employs a brushless, special rare-earth permanent magnet  alternator and therefore has a higher efficiency than ordinary alternator.  Output voltage and frequency are controlled by the electronic load controller(with ballast).      As little as 30 to 36 liter per second (l/s) falling 35 meter through a pipe,it can supply enough power to comfortably run a small household.  This machine is compact, easy to install and  requires little maintenance except lubricating the bearing every few months.

The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.

These turbines need very little water flow to run efficiently and produce significant power out. The standard configuration uses one nozzle

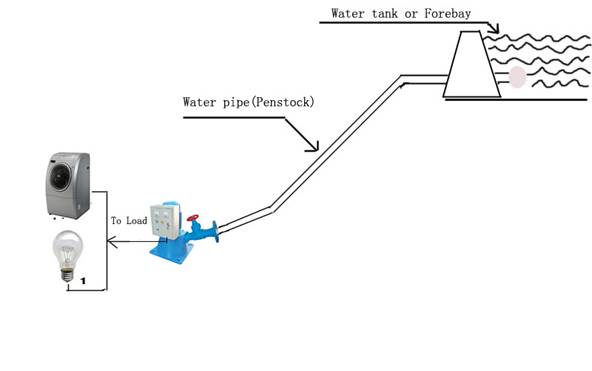

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.



Item
Parameters
Model
T28-6.0DCT4
Water Head Range
28 – 35 meter( 92 – 115 feet)
Water Pressure
50 PSI
Water Flow Range
30 – 36 liter(8 – 9.5 gal)/second
Rated Power Output
6KW
Intended voltage
115/230V~
Rotary Speed
1500 rpm
Turbine runner type
Turgo
Runner diameter
280 mm
Number of buckets
14
Number of nozzles
1
Jet diameter
200 mm
Generator
Single phase permanent magnet alternator
Power factor
1.0
Insulation level
B/B
Protection level
IP44
Temperature
-20°C~50°C
Humidity
≤90%
Safety protection
Short circuit, over load, Islanding, Grounding fault
Packing material
Fiberboard
Packing size
88 x 57 x 75 cm
Gross weight
196 kg





Turbine Generator





OUTPUT IN WATTS against various head and flow
Water head
(meter)
Water flow(liter/second)
28 liter/sec
30 liter/sec
32 liter/sec
34 liter/sec
36 liter/sec
25
2100W
2250W
3200W
4250W
4500W
27
2268W
2430W
3456W
4590W
4860W
29
2436W
2610W
3712W
4930W
5220W
31
2604W
2790W
3968W
5270W
5580W
33
2772W
2970W
4224W
5610W
5940W
35
2940W
3150W
4480W
5950W
6000W

If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
