500W Off-Grid Wind/Solar Hybrid System

HY-500W,  300W wind, 200W solar

A "hybrid" electric system that combines wind and solar technologies offers several advantages over either single system.

In many regions worldwide, wind speeds are relatively lower in the summer when the sun shines brightest and longest. The wind is strongest in the winter when less sunlight is available due to shorter days.  Even during the same day, in many regions worldwide, there are different and opposite wind and solar resource patterns.

Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce electricity consistently throughout the year.  It combines the best of both worlds !

Our hybrid systems are a combination of stand-alone wind systems. For the times when neither the wind nor the solar system is producing, our hybrid systems provide power through batteries.

Performance: 60 - 80 AC Kilowatt-hours (kWh's) per month (depending on wind and solar resources)

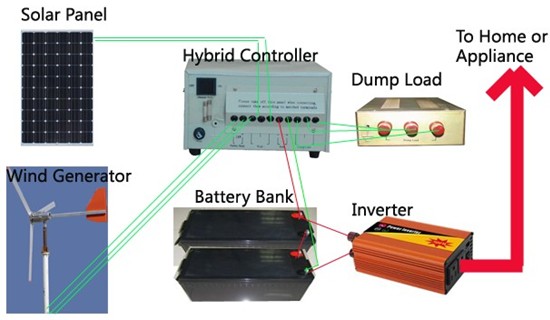

This system includes:

  • 1 set of WFD300W/24V wind turbine generator with 6 meter height wire guyed tower
  • 200W/24V solar panels
  • 1 pc of 600W Wind/Solar Hybrid Controller
  • 1 pc of 500W modified sine wave Inverter
  • 2 x 12V/100Ah battery

300W Wind Turbine Generator

Model
WFD300W
Rated Power
300W  at wind speed 11m/s
Max Power
400W
Kilowatt Hours Per Month
43 kWh/month /average 5.8 m/s
Voltage Options
12V, 24V, 48V
Start Wind Speed
3 m/s
Rated Wind Speed
11 m/s
Survival Wind Speed
40 m/s
Cut-Out Wind Speed
12 m /s
Over speed Protection
Side furling with gravity return
Kilowatt hours per month
60 KWh/mon at 5.4 m/s
Temperature Range
-30°C~60°C
Rotor Diameter
1.75 m
Swept Area
2.50 m2
Rotor speed
600 rpm
Blade material
Aluminum Alloy
Generator
3 phase Neodymium permanent magnet
Rotor thrust(at 20 meters/second)
160 Newton
Noise
Max 1-4 dB above background
Tower Top Weight
24 kg



200W Polycrystalline Solar Panel

ASNM200P-72 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type
200P-72
Module Efficiency              ŋm(%)
15,68
Cell Efficiency                ŋc(%)
18,15
Power Peak                    Pm(W)
200
Maximum Power Voltage         Vm(V)
37,52
Maximum Power Current         Im(A)
5,33
Open Circuit Voltage            Voc(V)
45,21
Short circuit current              Isc(A)
5,96
Maximum System Voltage         (VDC)
1000
Power output tolerances           ( % )
±3
Max-Series Fuse                  (A)
20
Operating/Storage Temp.          (°C)
-40 ~85
Dielectric Insulation Voltage        (VDC)
3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature
45±2°C
Pm Temperature Coefficient   (%/°C)
-0.44
Voc Temperature Coefficient  (%/°C)
-0.36
Isc Temperature Coefficient   (%/°C)
0.033
MECHANICAL  FEATURES
Cell Size                       (mm)
125 x 125
Number of cells
6 x 12– polycrystalline silicon cell
Module Dimensions              (mm)
1580 x 808 x 35
Module Weight                  (kg)
14
Front Glass
3.2mm tempered glass
Back Cover
TPT(Tedlar-PET-Tedlar)
Frame
Anodized aluminum alloy
Junction box
IP65-6 by-pass diodes serviceable
Connectors
IP67 type MC4
Output Cables                  (mm)
900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)
520
1 Pallet
24 modules
Container Loading                (ft)
672modules
Capacity 40’HQ
(28 pallets)

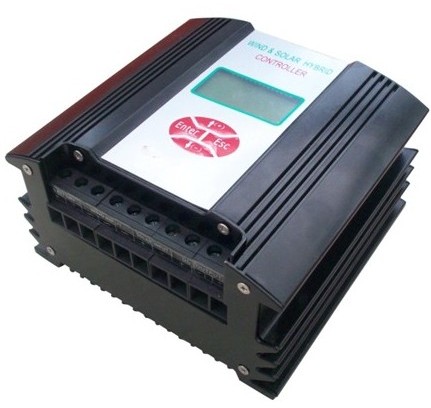

500W Hybrid Controller

Model
HD-600W
Rated output power
600W
Input voltage range
22~30V/44~60V
Rated battery voltage
24/48V
Rated input wind power
300W
rated input solar power
200 W  (higher rating upon request)
Over charge protection
30V±0.5V/60V±0.5V
Recommended battery
12VDC/150AH/200AH
Maximum Input Current
60 A  (higher rating upon request)
Protection Function
Over charge,  battery reverse-connection  Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake.
Self Consumption
< 10 mA
Shipping Weight/Dimension
1 kg/230 x 120 x 70 mm





500W pure sine wave inverter

Model
PI-500-12
PI-500-24
PI-500-48
Output power
500 watts  continuous power/1000 watts peak power
Output voltage
100/110/120/220/230/240VAC
Optimum efficiency
>85%
No-load draw
<0.6A
Output wave form
Pure Sine Wave
Input voltage range
10~15VDC
21~30VDC
42~60VDC
Over voltage shutdown
15.5V
30.5V
61.2V
Under voltage shutdown
9.5V
19.5V
42V
Over load shutdown
700W
Low voltage alarm
Audible
Protection
Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown
AC receptacle
2 x 3 prong receptacles
Warranty
1 year
Weight
1.4 kg
Dimension(W x H x D)
210 x 150 x 70 mm



Warranty :  10 years for solar panel and 3 years for the rest of the system

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.



Note:

  1. Power Curves and Annual Energy: The performance of wind turbine systems is impossible to predict with any certainty due to the variability in the wind from location to location and from year to year. These estimates are based upon the best available information but are given as guidance only and should not be considered as a guarantee.  For a greater level of certainty we would recommend on-site wind speed monitoring for at least a year.
  2. Variation: All values are nominal as there will be some variation in manufactured product.  Specifications subject to change.
