YSP-600

Off Grid Solar Power Kit

The Solar-Power-Generator is a revolutionary way of cost saving in renewable energy generation.
The solar panels produce what's called DC current. A device called an inverter is required to change the DC power generated by your solar system into AC power that most appliances can use. An inverter is an important piece in your overall solar energy plan.
Off-grid solar power gives people all over the world the electricity to power their homes. With off grid power you are your own electric company. When the sun shines you store excess electricity in batteries and draw it out later. An off-grid inverter can convert the DC energy from solar panels and batteries into AC electricity which powers normal appliances.

600W Off Grid Solar Power Kit, YSP-600 This kit Includes: 2 x 300 Watt Framed Solar Panel with 25 year limited warranty (Support rack for solar panel can be supplied upon request) 1 pc of 25 Amp Charge Controller 2 pc of 12V/100Ah batteries 1 pc 600 Watt Off Grid DC to AC Inverter
300W Polycrystalline Solar Panel
Cell: Poly-crystal silicon No. of Cells and Connections: 72 (6 x 12) Maximum Power(Pm): 300W±3% Maximum Power Voltage (Vpm): 36.78V Maximum Power Current (Ipm): 8.16A Open Circuit Voltage(Voc): 44.27 V Short Circuit Current(Isc): 8.93A Module Efficiency: 15.47% Dimensions: 1956 x 992 x 40 mm Weight: 22 kg Operating temperature: -25°C~55°C Warranty: 25 years power output guaranteeCertificate: CE, ROSHS, IEC, TUV, CSA
600W Solar Charge Controller
Rated solar Input	25A
Rated System Voltage	12 / 24VDC Field
Selectable Max. Solar Voltage	17V/35V
Self-Consumption	≤6mA
Acceptance Voltage Set point	13–16VDC / 26–32VDC
Type of Charging	High efficient Series PWM charging with temperature compensation
Electronic Protections	Reverse Polarity, Short Circuit, Overcurrent, lightning, Transient Surges, High Temperature, Reverse Current
Operating temperature	-25 ~ +55C
Humidity	≤90%
Shipping Weight/Dimension	0.2 kg/ 120x78x35mm
Warranty	3 years
600W Off Grid Inverter
Output power	600 watts continuous power/1200 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	＞85%
No-load draw	＜0.6A
Output wave form	Pure Sine Wave
Input voltage range	21~30VDC
Over voltage shutdown	30.5V
Under voltage shutdown	19.5V
Over load shutdown	700W
Low voltage alarm	Audible
Protection	Over voltage, Under voltage, Low voltage, Over load, Overheat, Short circuit
Warranty	3 year
Shipping Weight/Dimension	1.4 kg/210 x 150 x 70 mm
Battery Bank	2 x 12V/150Ah GFM Batteries

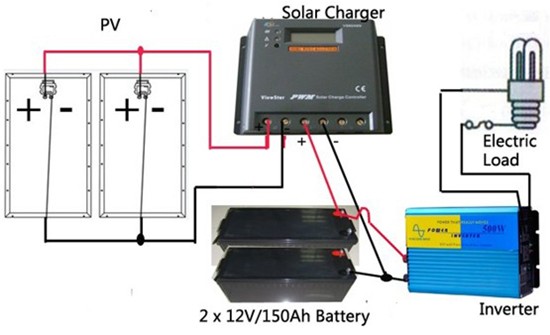

Wiring

Maintenance free Lead Crystal Battery

New Technology

The invention of the lead crystal battery is a breakthrough in battery history. Based on the composite electrolyte and proprietary intellectual property rights, makes the reaction of the electrolyte formation caused the forming for the crystal state.

Advantages

1. Ideal green and environmental protection battery.
Lead crystal battery is using special SIO2 composite electrolyte to replace the sulfuric acid solution of traditional lead-acid battery. The electrolyte is non-toxic, non-smell, to surrounding environment.
2. Excellent high and low temperature operating characteristics
Working temperature from -40°C~65°C
3. Easy for depth discharge
Working life of is no effected by the general over-discharge. Excellent recovery capacity of charge-discharge.
5. Long working life

Lead crystal battery can work for 10 to 15 years, and charging time is 25% faster than normal lead-acid batteries and gel batteries.

Item	6-CNFJ-100
Nominal Voltage	12V
Nominal Capacity	100Ah
Working Temperature	-40°C~65°C
Dimension	330 x 172 x 214mm
Weight	62 kg
Terminal type	A/F
Charge Cycle	1000
Working Life	10 – 15 years

Errors expected and possible alternations without prior notice
