3KW Off-Grid Wind/Solar Hybrid System

HY-3KW,  2,000W wind & 1,000W solar

A "hybrid" electric system that combines wind and solar technologies offers several advantages over either single system.

Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce electricity consistently throughout the year.  It combines the best of both worlds !

Performance: 480 - 580 AC Kilowatt-hours (kWh's) per month (depending on wind and solar resources)

This system includes:

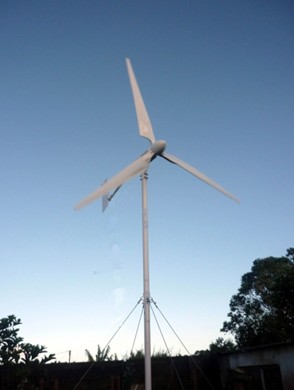

• 1 unit of WFD2KW/48V wind turbine generator with 9 m tower
• 4 x 250W solar panel
• 1 unit of 3KW Wind/Solar Hybrid Controller HD-3000W-48
• 1 unit of 3KW pure sine wave inverter PI-3000-96
• 4 x 12V/200Ah battery

2KW Wind Turbine Generator
Model	WFD2KW
Rated  Power	2 KW at wind speed 10m/s
Max  Power	2.50 KW
Voltage Options	48V, 96V, 120V, 240V & Grid Tie
Start Wind Speed	3m/s
Rated Wind  Speed	10 m/s
Survival Wind Speed	40m/s
Cut-Out Wind Speed	13 m/second
Kilowatt Hours Per Month	350 kWh/month /average 5.5 m/s
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Side furling with gravity return
Gearbox	None, Direct Drive
Temperature Range	-40 to +60 Deg. C
Rotor Diameter	3.2 m
Swept Area	8 m2
Rotor speed at 2KW power	380 rpm
Blade number	3
Blade material	Reinforced fibreglass
Maximum Lateral Thrust	760 Newton
Generator	Neodymium permanent magnet
Noise	Max 5-8 dBA above background
Tower Top Weight(kg)	120

.

250W Polycrystalline Solar Panel
ASNM250P-60 Series Polycrystalline Silicon PV Panel
ELECTRICAL  FEATURES
STC: Irradiance 1000 W/m2, 25°C, AM=1.5 according to EN 60904-3)
Module Type	250P-72
Module Efficiency              ŋm(%)	15,37
Cell Efficiency                ŋc(%)	17,54
Power Peak                    Pm(W)	250
Maximum Power Voltage         Vm(V)	30,71
Maximum Power Current         Im(A)	8,14
Open Circuit Voltage            Voc(V)	44,23
Short circuit current              Isc(A)	8,81
Maximum System Voltage         (VDC)	1000
Power output tolerances           ( % )	±3
Max-Series Fuse                  (A)	20
Operating/Storage Temp.          (°C)	-40 ~85
Dielectric Insulation Voltage        (VDC)	3000 max
TEMPERATURE CHARACTERISTICS - STC
NOCT–Nominal Operating Cell Temperature	45±2°C
Pm Temperature Coefficient   (%/°C)	-0.44
Voc Temperature Coefficient  (%/°C)	-0.36
Isc Temperature Coefficient   (%/°C)	0.033
MECHANICAL  FEATURES
Cell Size                       (mm)	156 x 156
Number of cells	6 x 10 – polycrystalline silicon cell
Module Dimensions              (mm)	1640 x 992 x 40
Module Weight                  (kg)	19
Front Glass	3.2mm tempered glass
Back Cover	TPT(Tedlar-PET-Tedlar)
Frame	Anodized aluminum alloy
Junction box	IP65-6 by-pass diodes serviceable
Connectors	IP67 type MC4
Output Cables                  (mm)	900
PACKING  FEATURES
Pallet Dimension                (mm)
Pallet Weight                    (kg)	520
1 Pallet	24 modules
Container Loading                (ft)	672modules
Capacity 40’HQ	(28 pallets)

.

3KW Hybrid Controller and dump load
Model	HD-3000W-48
Rated output power	3000W
Input voltage range	50~58V
Rated battery voltage	48 V
Max input wind power	2500W
Max input solar power	1200 W
Over charge protection	59V±0.5V
Recommended battery	48VDC/200AH
Maximum Input Current	100 A
Protection Function	Over charge,  battery reverse-connection  Solar cells reverse, over load, load short-circuit, lighting, wind turbine automatic brake and manual brake.
Self Consumption	< 10 mA
Shipping Weight/Dimension	10 kg /440 x 430 x 270mm    16 kg /440 x 430 x 100mm

.

.

3KW Pure Sine Wave Inverter
Model	PI-3000-24	PI-3000-48
Output power	3000 watts  continuous power/6000 watts peak power
Output voltage	100/110/120/220/230/240VAC
Optimum efficiency	up to 95%
No-load draw	＜1.2 A
Output wave form	Pure Sine Wave
Input voltage range	21~30VDC	42~60VDC
Over voltage shutdown	30.5V	61.2V
Under voltage shutdown	19.5V	42V
Over load shutdown	4500W
Low voltage alarm	Audible
Protection	Over voltage, Under voltage, Over load, Overheat, Short circuit
Weight	6.1 kg
Dimension(W x H x D)	380 x 150 x 90 mm

.

Maintenance free Lead Crystal Battery New Technology The invention of the lead crystal battery is a breakthrough in battery history. Based on the composite electrolyte and proprietary intellectual property rights, makes the reaction of the electrolyte formation caused the forming for the crystal state. Advantages 1. Ideal green and environmental protection battery. Lead crystal battery is using special SIO2 composite electrolyte to replace the sulfuric acid solution of traditional lead-acid battery. The electrolyte is non-toxic, non-smell, to surrounding environment. 2. Excellent high and low temperature operating characteristics Working temperature from -40°C~65°C 3. Easy for depth discharge Working life of is no effected by the general over-discharge.   Excellent recovery capacity of charge-discharge. 5. Long working life Lead crystal battery can work for 10 to 15 years,  and charging time is 25% faster than normal lead-acid batteries and gel batteries.   Item 6-CNFJ-200 Nominal Voltage 12V Nominal Capacity 200Ah Working Temperature -40°C~65°C Dimension  330 x 172 x 214mm Weight 62  kg Terminal type A/F Charge Cycle 1000 Working Life 10 – 15 years

.

Warranty :  10 years for solar panel and 3 years for the rest of the system

Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.

.

Note:

.

.
