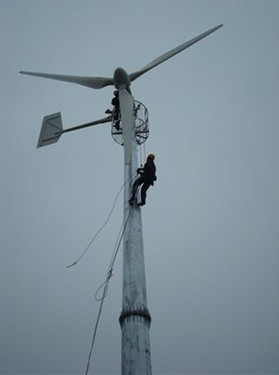

Wind Generator

WFD30KW

Introducing WFD30KW – A wind generator with beautiful shape, safe, portable and reliable. It is especially designed to meet the demand from individual householders for a renewable energy source

The WFD30KW is used to charge 360V or 480V batteries. Equipped with suitable DC to AC inverter, it is capable of supplying power for:Refrigeration, Electric fan, Lights, Air conditioner , Communication equipment.

When used in conjunction with a suitable Grid Tie inverter WFD30KW can also be connected to the power grid

Features :

• Reliable passive self furling
• Autobrake slows down the blades spin when the batteries are charged
• Marine quality powder coated aluminium body, water tight housing
• Iron Boron Neodymium magnet alternator.
• Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature
• Two years warranty; operational life expected to be in excess of 15 years.

Specification:

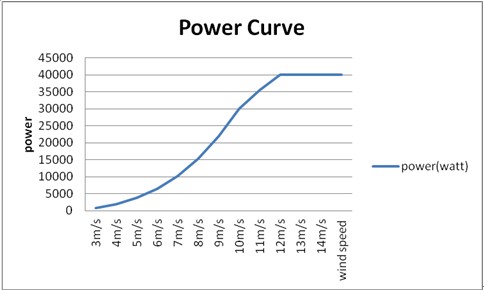

Rated Power	30 KW
Max Power	36 KW
Voltage Options	480V, 540V & Grid Tie
Start Wind Speed	3 m/s
Rated Wind Speed	12 m/s
MAX WIND SPEED	50 m/s
Cut-Out Wind Speed	13 m/second
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Side furling with gravity return & Manual braking
Temperature Range	-40 to +60 Deg. C
Rotor Diameter	12 m
Rotor speed	180 rpm
Blade number	3
Blade material	Reinforced fibreglass
Generator	3 phase permanent magnet alternator
Turbine Weight(kg)	1600

Apparent Sound Power Level for the Acoustic Reference Wind Speed

Test was made at 30 meters from the turbine.

Electrical Installation

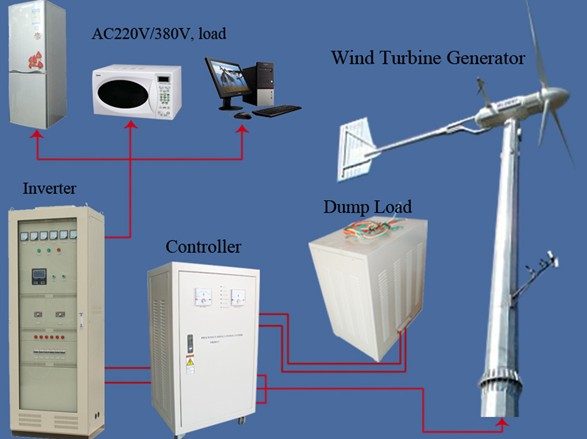

In most cases the loads will be AC(alternating current) and they will be supplied through a DC-to-AC inverter

30KW Off Grid Controller(optional)	Dump load

Specification

Model	FKJB-30KW-480
Rated output power	30 KW
Input voltage range	400~600 V
Rated battery voltage	480V
Max input wind power	35 KW
Max input solar power	6 KW
Over charge protection	600V±0.5V
Recommended battery	480VDC/200AH
Rated Wind Turbine Maximum Input Current	62A
Protection Function	Over charge, battery reverse-connection Solar cells reverse charging, battery reverse, over load, load short-circuit, lighting, wind turbine current limiting, wind turbine automatic brake and manual brake.
Self Consumption	< 20 mA
Size	Controller: 560 x 460 x 950mm 51 kg Dump load: 810 x 580 x 1400 mm 140 kg

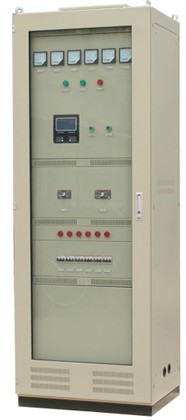

30KW 3 Phase Off Grid Inverter (optional)

Specification

Model	BNWA-30KS
Input data
Recommended generator power	30 KW
Rated operating voltage	240 V
Max. DC voltage	300 V
DC voltage	240 V
Max. input current	125 A
Input DC voltage range(VDC)	240-300 V
Thermally monitored varistors	Yes
Output date
Max. AC power	30 KW
Rated AC power	36 KW
Harmonic distortion of grid current	<3%
Rated AC voltage	380 VAC
Rated AC frequency	50 Hz/60 Hz
Short –circuit proof	Yes
Others
Max. Efficiency	94 %
Power Factor(PF)	≥0.99
Overload ability	150%, 10 seconds
Protection degreee	IP65
Insulation intensity(input and output)	1500VAC, 1 minute
Noise(1meter)	≤50dB
Operation temperature	-25℃-+55℃
Size(L×W×H mm)	800 x 600 x 1800 mm
Weight	400 kg
Protection	Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown Reverse polarity shut down

Packing

Case 2:76 x 76 x 90 cm 120 kg
Case 3: 181 x 114 x 70 cm 810 kg
Case 4: 206 x 126 x 26 cm 216 kg
Case 5:330 x 54 x 14 cm 75 kg

103 x 103 x 480 cm 800 kg
130 x 130 x 8 cm 42 kg
210 x 17 x 20 cm 84 kg
260 x 17 x 20 cm 102 kg
3) Controller, Plywood case: Case 1: 65 x 500 x 110cm 65 kg
Case 2: 90 x 65 x 160 cm 160 kg

4) Inverter, Plywood case: 90x 65 x240 cm 410 kg
