Wind Generator, Off Grid


WFD300W

Introducing WFD300W -  A 300W wind generator with beautiful shape, safe, portable and reliable.  It is a small wind turbine with 2 m diameter rotor and can be used on land or on larger vessels.   WFD300W is used to charge 12V or 24V battery systems.  It includes a 300W battery charge controller regulator which will auto brake the turbine and stop charging when the batteries are charged full.

Applications

  • Washing machine
  • TV, radio, lights, fridges

Features:

    • Reliable passive self furling when in storm.
    • Autobrake  slows down the blades spin when the batteries are charged
    • Marine quality powder coated aluminum body,  water tight housing
    • Smooth running of the rotor because of good balance of the blades.
    • Low noise.
    • Reliability: The design of the body efficiently flows excess heat into the wind reducing operating temperature



    Two year warranty; operational life expected to be in excess of 15 years.





    Model
    WFD300W
    Rated Power
    300W  at wind speed 10m/s
    Max Power
    400W
    Kilowatt Hours Per Month
    43 kWh/month /average 5.8 m/s
    Voltage Options
    12V, 24V, 48V
    Start Wind Speed
    3 m/s
    Rated Wind Speed
    10 m/s
    Survival Wind Speed
    40 m/s
    Cut-Out Wind Speed
    12 m /s
    Over speed Protection
    Side furling with gravity return
    Kilowatt hours per month
    60 KWh/mon at 5.4 m/s
    Temperature Range
    -30°C~60°C
    Rotor Diameter
    1.75 m
    Swept Area
    2.50 m2
    Rotor speed
    600 rpm
    Blade material
    Aluminum Alloy

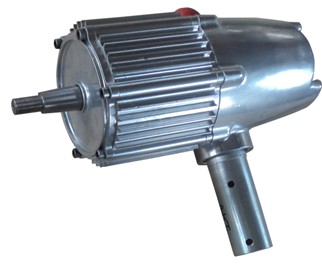

    Generator
    3 phase Neodymium permanent magnet
    Rotor thrust(at 20 meters/second)
    160 Newton
    Noise
    Max 1-4 dB above background
    Tower Top Weight
    24 kg



    300W Wind Charge Controller

    Model
    300W-12
    300W-24
    Rated output power
    300W
    300W
    Input voltage range
    16~14 V
    12~28 V
    Rated battery voltage
    12 V
    24 V
    Max input wind power
    300W
    300W
    Over charge protection
    15 V±0.5V
    30 V±0.5V
    Recommended battery
    1 pc of 12V /150AH
    2 pc of 12V /150AH
    Wind Turbine
    Maximum Input Current
    30 A
    15 A
    Protection Function
    Over charge,  battery reverse-connection ,   load short-circuit, wind turbine automatic brake.
    Size
    230 x 120 x 70 mm
    230 x 120 x 70 mm
    Weight
    1  kg
    1  kg



    300W Off Grid Inverter( optional )

    Model
    PI-300-12
    PI-300-24
    PI-300-48
    Output power
    300 watts  continuous power/600 watts peak power
    Output voltage
    100/110/120/220/230/240VAC
    Optimum efficiency
    >85%
    No-load draw
    <0.5A
    Output wave form
    Pure Sine Wave
    Input voltage range
    10~15VDC
    21~30VDC
    42~60VDC
    Over voltage shutdown
    15.5V
    30.5V
    61.2V
    Under voltage shutdown
    9.5V
    19.5V
    42V
    Over load shutdown
    120%
    Low voltage alarm
    Audible
    Protection
    Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown
    AC receptacle
    1 x 3 prong receptacles
    Shipping Weight/Dimension
    1kg/150 x 130 x 52 mm



    6 meter height wire guyed tower (optional)

    Battery bank

    This off grid system should use 1 piece of 12V/200Ah batteries.  The user should buy from local market

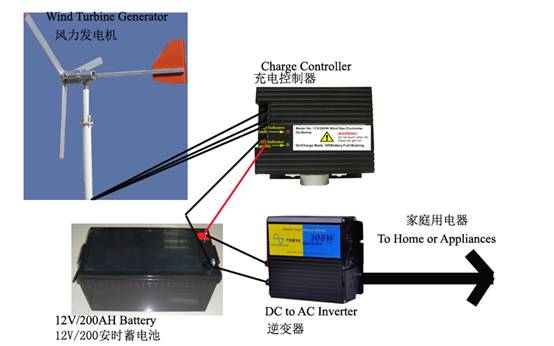

    Wiring

    300W中文接线图

    Packing

    1. Wind Generator in cartons  : 20 kg/54 x 40 x 23 cm; 9 kg/122 x 12 x 12 cm
    2. 6 m wire guyed tower in bag :  25 kg /172 x 26x 22 cm
    3. Controller packed in carton : 1 kg/18×16×10 cm
    4. Inverter packed in carton  : 1.5 kg/22 x 16 x10 cm





    Warranty:  2 years

    Claims & Return Procedures
    In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.

    If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.



    Note:

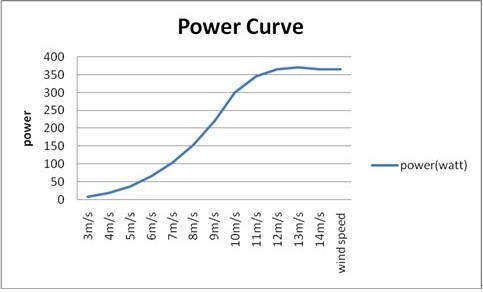

    1. Power Curves and Annual Energy: The performance of wind turbine systems is impossible to predict with any certainty due to the variability in the wind from location to location and from year to year. These estimates are based upon the best available information but are given as guidance only and should not be considered as a guarantee.  For a greater level of certainty we would recommend on-site wind speed monitoring for at least a year.
    2. Variation: All values are nominal as there will be some variation in manufactured product.  Specifications subject to change.
