100KW Grid Tie Wind Generator System

WFD100KW-5 (20KW x 5)

Reduce or Eliminate Your Electricity Bill





WFD100KW-5 is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs.  It includes wind generator, controller with dump load and grid tie inverter.   With no batteries, WFD100KW-5 connects directly to your home.  When the wind is blowing, your home is powered (in part) by WFD100KW-5; when it’s not, your home is seamlessly powered by your utility as usual..  If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.

And you do not need the most disposable part of a wind power system --- the batteries.

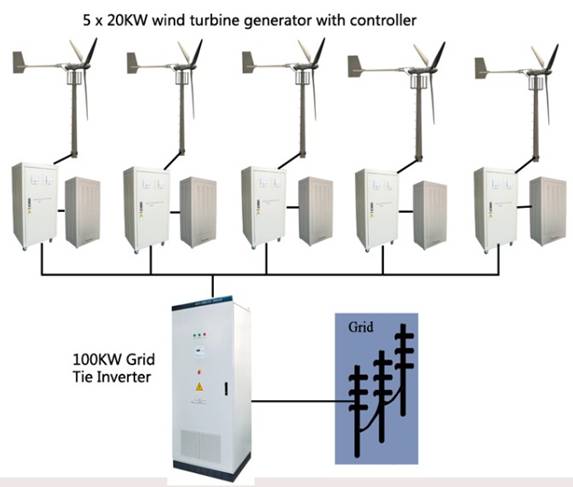

This system consists of 5 x 20KW wind generators with controllers and
1 x 100KW grid tie inverter.



20KW wind turbine generator
Rated  Power	20 KW at wind speed 10m/s
Max  Power	25 KW
Kilowatt Hours Per Month	3,270 kWh/month /average 5.8m/s
Voltage Options	240V, 360V & Grid Tie
Start Wind Speed	4 m/s
Rated Wind  Speed	10 m/s
MAX WIND SPEED	45 m/s
Cut-Out Wind Speed	13 m/second
Blade Pitch Control	None, Fixed Pitch
Over speed Protection	Side furling with gravity return & Manual braking
Temperature Range	-30°C~60°C
Rotor Diameter	10 m
Swept Area	78.50 m2
Rotor speed	180 rpm
Blade number	3
Blade material	Reinforced fibreglass
Noise	Max 5-8 dBA above background
Generator	3 phase permanent magnet alternator
Tower Top Weight(kg)	750





20KW Grid tie controller& dump load
Model	HCCG-20KW
Input date
Rated Wind Turbine Power	20 KW
Rated Solar Panel Power	6,000W
Voltage Range	0~600V
Rated Maximum Input Current	55A
Output date
Max dump load power	20 KW
Brake delay time	10-20 minutes
PWM unloading voltage (DCV)	≥600V
Braking voltage	Set as the output voltage of the wind turbine
PWM unloading fuse (A)	60A
Solar panel fuse (A)	20A
DC output fuse (A)	55A
Others
Connecting wire of the PWM dump load provided	>6 mm2
Protection level	IP20
Controller dimension Dump Load dimension	590*550*330mm 770*550*460mm
Controller Weight Dump Load Weight	42 kg 36 kg



100KW Grid tie inverter
Model	BNWG-100KS
Input data
Recommended generator power	100 KW
Rated operating voltage	480 V
Max. DC voltage	780 V
DC voltage	400 V
Max. input  current	250 A
Input DC voltage range(VDC)	350-780 V
Output date
Max. AC power	110 KW
Rated AC power	100 KW
Harmonic distortion of grid current	<3%
Rated AC voltage	380 VAC
Rated AC frequency	50 Hz/60 Hz
Short –circuit proof	Yes
Others
Max. Efficiency	94 %
Power Factor(PF)	≥0.99
Overload ability	150%, 10 seconds
Protection degreee	IP65
Insulation intensity(input and output)	1500VAC, 1 minute
Noise(1meter)	≤50dB
Operation temperature	-30°C~60°C
Size(L×W×H mm)	800 x 600 x 2260 mm
Weight	800 kg
Protection	Over voltage, Under voltage, Overheat. Short Circuit,  Reverse polarity
