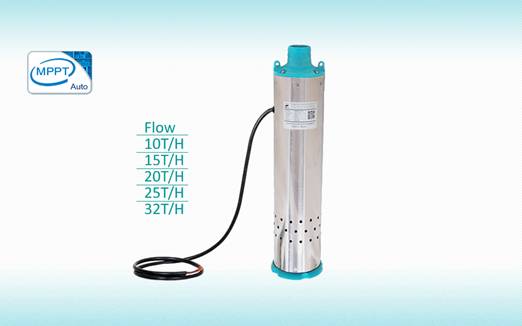

Solar Submersible Water Pump

Solar submersible water pumps are ideal for use in a wide range of solar energy applications. From Livestock Watering to Remote Home or Village Water Supply, these Solar Operated Water Pumps are well suited and proven to meet your water pumping needs using Solar Energy!

The solar submersible pumps can be directly powered by solar or wind power.  It is used mostly for pumping from wells.  With flow range of 10 to 25 tons per hours and Vertical lift from 12 to 72 meter, it is great for livestock watering, irrigation, pond, open tank, remote homes and cabins.  People  use it to store the water in a holding tank。    These solar applications made economic sense because the location was too remote to run a long power line. A solar-powered water system is one of the easiest solar power systems to install, since you will not need a battery or battery charging equipment. When the sun is shining, the system is pumping, when the sun is not shining, the system is off—simple

Features:

  • Long -life operation
  • Dry-running  protection
  • Delivery of 10~25 ton per hour
  • Maximum Power Point Tracking (MPPT)
  • Corrosion-proof housing with stainless-steel fasteners
  • Wide voltage range of 38~96VDC

Specification

Motor voltage
Intake size
Outlet size
Protection
Rotation speed
72V
140mm
62mm
IP68
3000(rpm)



Model
Vertical Lift
Flow/hour
Power
PV panel required
Price EX WORKS
Meter
Ft
TF4810-12
12
39
10 tons
1,392W
2,300W

1 sample    USD542;

> 10 set     USD462;

> 50 set     USD430

TF4810-24
24
78
10 tons
1,920W
3,360W

1 sample    USD628;

> 10 set     USD548;

> 50 set     USD510

TF4810-36
36
118
10 tons
2,448W
4,200W

1 sample    USD714;

> 10 set     USD634 ;

> 50 set     USD590

TF4810-72
72
236
10 tons
4,896W
8,320W

1 sampl USD1,263;

>10 set    USD1,183;

>50 set USD1100

TF4815-12
12
39
15 tons
1,872W
3,200W

1 sample USD642;

>10 set      USD562;

>50 set      USD523

TF4815-24
24
78
15 tons
2,544W
4,300W

1 sample    USD714;

> 10 set     USD634;

> 50 set     USD590

TF4815-48
48
157
15 tons
5,088W
8,640W

1 sample USD1,283;

> 10 set USD1,203;

> 50 set USD1,119

TF4820-24
24
78
20 tons
2,640W
4,500W

1 sample USD746;

>10 set USD666;

> 50 set  USD620

TF4820-48
48
157
20 tons
5,280W
9,200W

1 sample    USD1,404;

> 10 set     USD1,324;

> 50 set     USD1,231

TF4825-24
24
78
25 tons
2,784W
4,600W

1 sample    USD818;

> 10 set     USD738;

> 50 set     USD686

TF4825-48
48
157
25 tons
5,568W
9,360W

1 sample    USD1,504;

> 10 set     USD1,424;

> 50 set     USD1,324



Wiring Diagram

Option A:Pump connect directly to Solar Panel

Option B:
Pump connect to 60V Battery Bank and Solar Panel or Wind Generator
