500W Turgo Turbine Generator

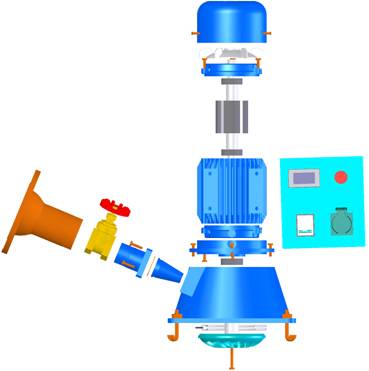

T18-0.5DCT4 is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed.  That is, it is fed directly to the appliances.   No need of battery and inverter, T18-0.5DCT4 offers a complete water to wire system with integral turgo turbine, generator and valve flow control.  Designed to deliver ready-to-use 115V/230V AC power, it employs a brushless, special rare-earth permanent magnet  alternator and therefore has a higher efficiency than ordinary alternator.  Output voltage and frequency are controlled by the electronic load controller(with ballast).   The power is monitored and that which is not used by the appliances is directed to the ballast,  As little as 5 to 7(26 gallon) liter per second (l/s) falling 18 meter through a pipe, it can supply enough power to comfortably run a small household.  This machine is compact, easy to install and  requires little maintenance except lubricating the bearing every few months.

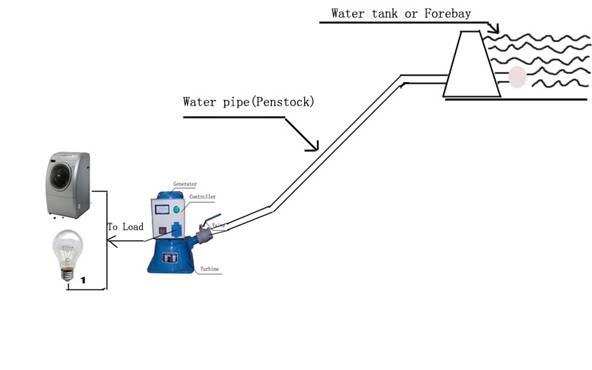

Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC single-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 110V or 220V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.



Item
Parameters
Model
T18-0.5DCT4
Water Head Range
13 – 18 meter( 43 – 59 feet)
Water Flow Range
5 – 7 liter(1.3-2 gallon)/second
Water Pressure
26 PSI
Rated Power Output
500W
Intended voltage
115/230V~
Rotary Speed
1500 rpm
Turbine runner type
Turgo
Runner diameter
150 mm
Number of buckets
12
Number of nozzles
1
Jet diameter
50 mm
Generator
Single phase permanent magnet alternator
Power factor
1.0
Insulation level
B/B
Protection level
IP44
Temperature
-20°C~50°C
Humidity
≤90%
Safety protection
Short circuit, over load, Islanding, Grounding fault
Packing material
Fiberboard
Packing size
38 x 34 x 40 cm
Gross weight
28 kg





Turbine Generator





OUTPUT IN WATTS against various head and flow
Water head
(meter)
Water flow(liter/second)
4 liter/sec
5 liter/sec
6 liter/sec
7 liter/sec
10
120W
250W
300W
385W
11
132W
275W
330W
423W
12
144W
300W
360W
462W
13
156W
325W
390W
500W
14
168W
350W
420W
500W
15
180W
375W
450W
500W
16
192W
400W
480W
500W
17
204W
425W
500W
500W
18
216W
450W
500W
500W

If you feel you may have a suitable site, please email specific information on your actual site. The information that is required for a preliminary assessment is:
1. The volume of water flowing in your stream, expressed as liters per second.
2. The head (height of drop) of the falling water, expressed in meters.
3. The length of the penstock (pipeline) in meters.
