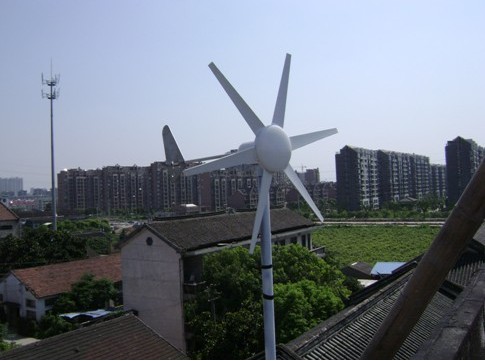

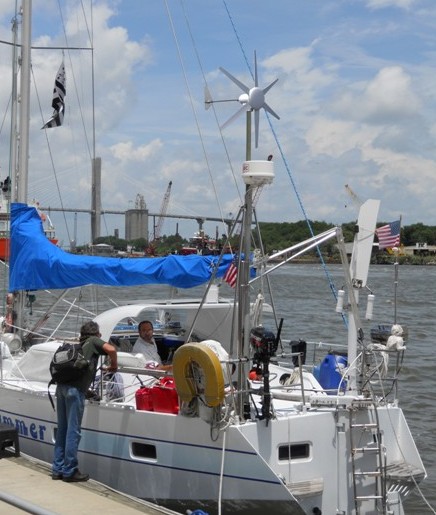

Wind Generator for Boat and House Roof
FDL0.9-500
Magnetic levitation alternator. Spinning in the lightest of breezes!
We introduce the newest wind generator:

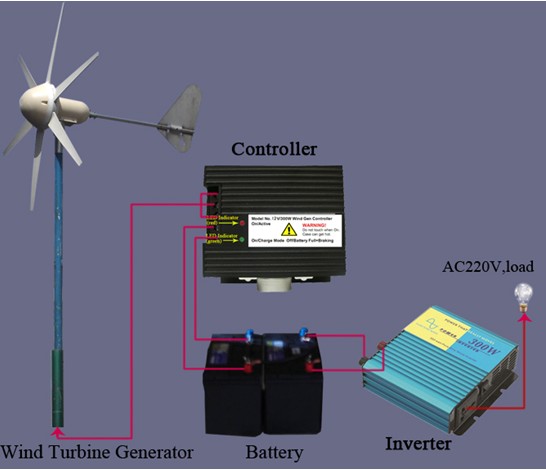

The electrical power produced by the FDL0.9-500 charges 24V or 48 volt batteries. Alternating current(AC) electrical appliances can be supplied by connecting a 220 volt or 110 volt inverter to the batteries.
Product Description:
-
Innovative 6-blade design to maximize energy output at low wind conditions under 25 mph.
-
Very small rotor diameter, more safe less vibration.
-
Strong Neodymium magnet PMA, the unique winding and multi pole design reduces the start-up torque of the alternator that assures generator to generate electricity at low wind speed.
Specification
Configuration |
6 blade upwind |
Blade material |
ABS plastic |
Rated power |
24V 500W |
Voltage Options |
24V, 48V, & Grid Tie |
Rotor diameter |
1 m |
Cut in wind speed |
1.5m/sec |
Rated wind speed |
11 m/sec |
Alternator type |
Magnetic levitation, Neodymium permanent magnet |
Temperature Range |
-40 to +60 Deg. C |
Turbine Weight |
9 kg |
Apparent Sound Power Level for the Acoustic Reference Wind Speed
- Turbine Sound Pressure Level at 7.3~8.7 m/s:66.7~81.7 dB
- Background Sound Pressure Level at 7.3~8.7 m/s:54.6~66.8 dB
- Different between background and turbine : 12.1~14.9 dB
Noise Level at 7.3-8.7m/s: 12.1 ~ 14.9dB
Test was made at 10 meters from the turbine.
Battery Charge Controller( option )
Specifications
Model |
500W-24 |
500W-48 |
Rated output power |
500W |
500W |
Input voltage range |
24~28 V |
48~56 V |
Rated battery voltage |
24 V |
48 V |
Max input wind power |
550W |
550W |
Over charge protection |
30 V±0.5V |
60 V±0.5V |
Recommended battery |
2 pc of 12V /150AH |
4 pc of 12V /150AH |
Wind Turbine
Maximum Input Current |
25 A |
15 A |
Protection Function |
Over charge, battery reverse-connection , load short-circuit, wind turbine automatic brake. |
Size |
230 x 120 x 70 mm |
230 x 120 x 70 mm |
Weight |
1.8 kg |
1.8 kg |
500W Inverter ( optional )
Specification
Model |
PI-500-12 |
PI-500-24 |
PI-500-48 |
Output power |
500 watts continuous power/1000 watts peak power |
Output voltage |
100/110/120/220/230/240VAC |
Optimum efficiency |
>85% |
No-load draw |
<0.6A |
Output wave form? |
Pure Sine Wave |
Input voltage range |
10~15VDC |
21~30VDC |
42~60VDC |
Over voltage shutdown |
15.5V |
30.5V |
61.2V |
Under voltage shutdown |
9.5V |
19.5V |
42V |
Over load shutdown |
750W |
Low voltage alarm |
Audible |
Protection |
Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown |
AC receptacle |
2 x 3 prong receptacles |
Warranty |
1 year |
Weight |
1.5 kg |
Dimension(W x H x D) |
210 x 150 x 70 mm |
Packing
- Wind Generator in cartons: Carton,43x33x41.5 cm 20 kg
- 6 m wire guyed tower in bag :160 x 22x 22 cm 20 kg
- Controller packed in carton :18×16×10 cm 2 kg
4)inverter packed in carton: 22 x 16 x10 cm ?2 kg
Warranty : 2 years
