30KW Grid Tie Wind Generator System
WFD30KW-4 (7.5KW x 4)
Reduce or Eliminate Your Electricity Bill
Introducing WFD30KW- 4 – A new generation Residential Power Appliance that hooks up to your home to help you reduce or eliminate your monthly electricity costs.
WFD30KW- 4 is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs. It includes wind generator, controller with dump load and grid tie inverter. With no batteries, WFD30KW- 4 connects directly to your home. When the wind is blowing, your home is powered (in part) by WFD30KW- 4; when it’s not, your home is seamlessly powered by your utility as usual.. If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid.
And you do not need the most disposable part of a wind power system --- the batteries.

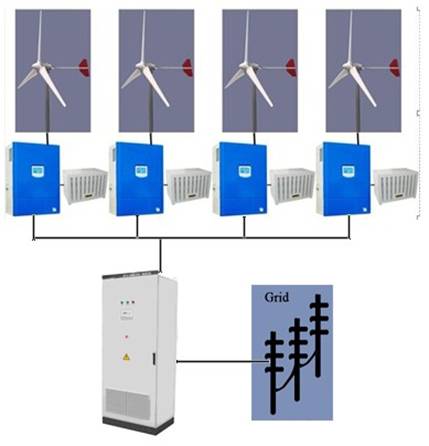

This system consists of 4 x 7.5KW wind generators with controller and
1 x 30KW grid tie inverter.
7.5KW wind generator
|
Model |
WFD7.5KW |
Rated Power |
7.5 KW at wind speed 11m/s |
Kilowatt Hours Per Month |
920 kWh/month /average 5.8m/s |
Max Power |
90 KW |
Voltage Options |
120V,240V& Grid Tie |
Start Wind Speed |
3 m/s |
Rated Wind Speed |
11 m/s |
MAX WIND SPEED |
45 m/s |
Cut-Out Wind Speed |
13 m/second |
Over speed Protection |
Auto Furl and Dump Load |
Temperature Range |
-30°C~60°C |
Rotor Diameter |
5.20 m |
Swept Area |
21.23 m2 |
Rotor speed at 8KW power |
280 rpm |
Blade number |
3 |
Blade material |
Reinforced fibreglass |
Rotor thrust(at 20 meters/second) |
5,300 Newton |
Generator |
3 phase Neodymium permanent magnet |
Noise |
Max 5-8 dBA above background |
Tower Top Weight |
170 kg |
7.5KW Grid tie controller with Dump Load

|
Model |
HCCG-7.5KW |
Input date |
|
Rated Wind Turbine Power |
7.5 KW |
Rated Solar Panel Power |
1,000W |
Voltage Range |
0~500V |
Rated Maximum Input Current |
30A |
Output date |
|
Max dump load power |
9 KW |
Brake delay time |
10-20 minutes |
PWM unloading voltage (DCV) |
≥500V |
Braking voltage |
Set as the output voltage of the wind turbine |
PWM unloading fuse (A) |
30A |
Solar panel fuse (A) |
8 A |
DC output fuse (A) |
30A |
Others |
|
Connecting wire of the PWM dump load provided |
>6 mm2 |
Protection level |
IP20 |
Dimension & Weight |
Controller : 730 x 420 x 210 25KG
Dump load : 690 x 505 x 350 mm 20kg |
30KW Grid tie inverter
|
Model |
BNWG-30KS |
Input data |
|
Recommended generator power |
30 KW |
Rated operating voltage |
280 V |
Max. DC voltage |
780 V |
Max. input current |
150 A |
Input DC voltage range(VDC) |
200-780 V |
Thermally monitored varistors |
Yes |
Output date |
|
Max. AC power |
30 KW |
Rated AC power |
30 KW |
Harmonic distortion of grid current |
<3% |
Rated AC voltage |
380 VAC |
Rated AC frequency |
50 Hz/60 Hz |
Short –circuit proof |
Yes |
Others |
|
Max. Efficiency |
94 % |
Power Factor(PF) |
≥0.99 |
Overload ability |
150%, 10 seconds |
Protection degreee |
IP65 |
Insulation intensity(input and output) |
1500VAC, 1 minute |
Noise(1meter) |
≤50dB |
Operation temperature |
-25℃-+55℃ |
Size(L×W×H mm) |
800 x 600 x 2260 mm |
Weight |
400 kg |
Protection |
Over voltage, Under voltage, Low voltage, overheat, Short circuit, Reverse polarity |
Errors expected and possible alternations without prior notice.
Warranty: 2 years
Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must send us pictures showing his installation of the system in 5 days after the installation.
If any problem takes place within the warranty period, Notification must be provided including a description of the alleged defect, the manner in which the wind turbine was used, the serial number, and the original purchase date in addition to the name, address, and telephone number of the party requesting warranty service.
