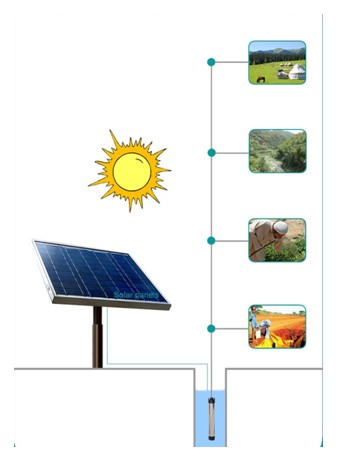

| This
system is a battery based system for use as a sump pump, either
for emergency backup, or in a location where there is no AC
power. Although this system is designed for 30 foot, the pump
is capable of pumping up to 105 foot head. This system will
pump about 2 liters per minute.
The following items are included:

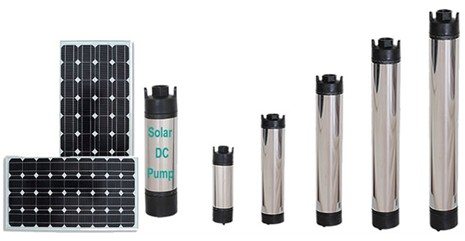

SunPumps
LJ308-B solar submersible pump, 36 watts 35 volts solar panels
1.
solar pump must not be operated direct with any batteries
2. Max 36 Watt, input voltage with load 35V
3. maximum current:1.10 A; minimum current 0.05A
4. diameter of pump: 4.90 cm; minimum diameter of well 8.0
cm.
-- interior diameter of water hose: 9.0mm
5. diameter of cable: 9.0mm, length: 22 meters
6. operating temperature of the pump: +1.0 C +30 CBR> --operating
temperature of the driver: -10 C +50CBR>
Relations
between height of water and delivery(full sunshine)
| Height
of Water |
Delivery
of Water |
| 15
meters |
70
liters/hour |
| 20
meters |
57.5
liters/hour |
| 25
meters |
47
liters/hour |
| 30
meters |
36.8
liters/hour |
Packing
size:
Color Box 1 : 53x26x26cm, 9.8 kg
Manual
for Solar Water Pump
(Click to Download)
|
